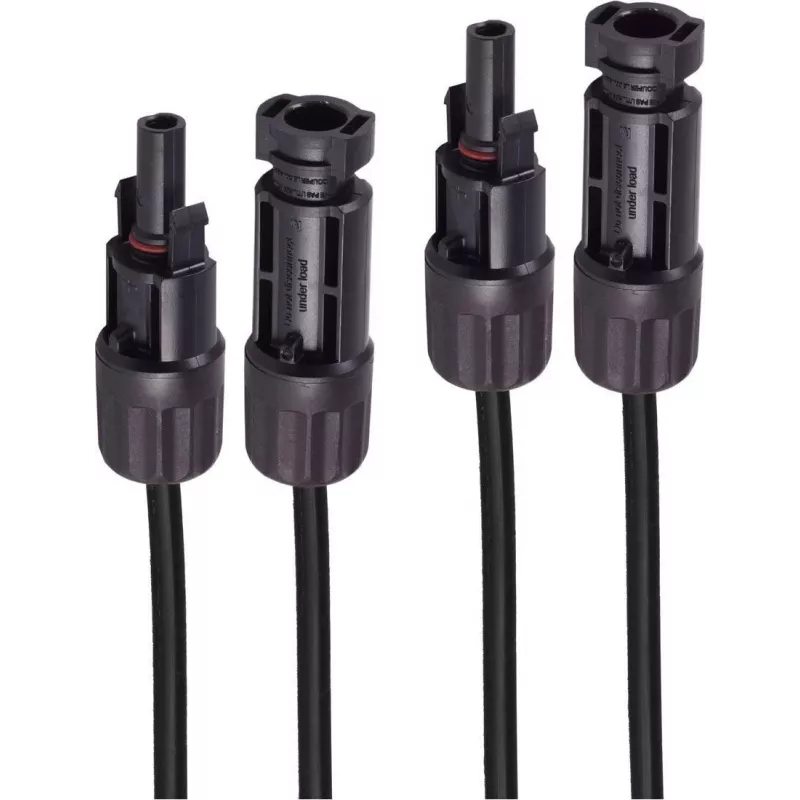

SHIVERPEAKS PV4 solar verlengkabelset, 4mm², 2x 7,5m, MC4 stekker naar bus, zwart BS02-32065

Rated for 1500V DC and 39A, the SHIVERPEAKS PV4 Extension Cable Set delivers high-performance power transmission for demanding photovoltaic installations. This set includes two 7.5-meter cables with 4mm² tinned copper conductors, ensuring minimal voltage drop and excellent conductivity. Each cable is terminated with an MC4 male connector on one end and an MC4 female connector on the other, providing a secure, weatherproof connection. The black XLPE insulation and jacket offer superior UV resistance and mechanical durability, making these cables ideal for outdoor solar applications. Certified to EN 50618 (H1Z2Z2-K) and TÜV Rheinland approved, they meet stringent safety and quality standards.

Overview

The SHIVERPEAKS PV4 Extension Cable Set is engineered for reliable solar panel connections. With a conductor cross-section of 4mm², these cables handle high currents efficiently. The tinned copper conductors resist corrosion, while the XLPE insulation provides excellent thermal stability from -40°C to +90°C. The cables are halogen-free and flame retardant, complying with IEC 60332-1-2. The MC4 connectors are IP67 rated, ensuring protection against dust and water ingress. This set is perfect for extending connections between solar panels, optimizers, or inverters.

What stands out

• High current capacity: 39A at 60°C ambient temperature
• Double insulation: XLPE for enhanced safety and longevity
• UV and weather resistant for outdoor use
• Halogen-free and flame retardant for safety
• TÜV Rheinland and CE certified
• Set of two cables for convenient installation

Technical details

• Cable type: Solar extension cable
• Conductor cross-section: 4 mm²
• Cable length per cable: 7.5 m
• Number of cables: 2
• Connector type end 1: MC4 male
• Connector type end 2: MC4 female
• Conductor material: Tinned copper
• Insulation material: XLPE (cross-linked polyethylene)
• Jacket material: XLPE (cross-linked polyethylene)
• Color: Black
• Rated voltage: 1000V DC / 1500V DC
• Rated current (max): 39A (at 60°C ambient)
• UV resistance: Yes
• Weather resistance: Yes (IP67 for connectors)
• Operating temperature range: -40°C to +90°C
• Certification: TÜV Rheinland, CE
• Flame retardant: Yes (IEC 60332-1-2)
• Halogen-free: Yes (EN 50618 compliant)
• Cable standard: EN 50618 (H1Z2Z2-K)
• Outer diameter (approx.): 5.9 mm

Our verdict

For solar installers and DIY enthusiasts, the SHIVERPEAKS PV4 Extension Cable Set offers outstanding performance and reliability. Its robust construction and certifications ensure safe, long-lasting operation in harsh environments. The set of two cables provides flexibility for various system layouts, making it a smart choice for any PV project.
