SHIVERPEAKS PV4 verlengkabel-set, 4mm², 2x 50m, zwart, MC4-stekker BS02-32505

Solar extension cable set engineered for high-current photovoltaic installations, delivering a robust 4mm² cross-section across two 50-metre lengths. The tinned copper conductors and UV-resistant halogen-free jacket ensure long-term durability in harsh outdoor environments.

Advantages

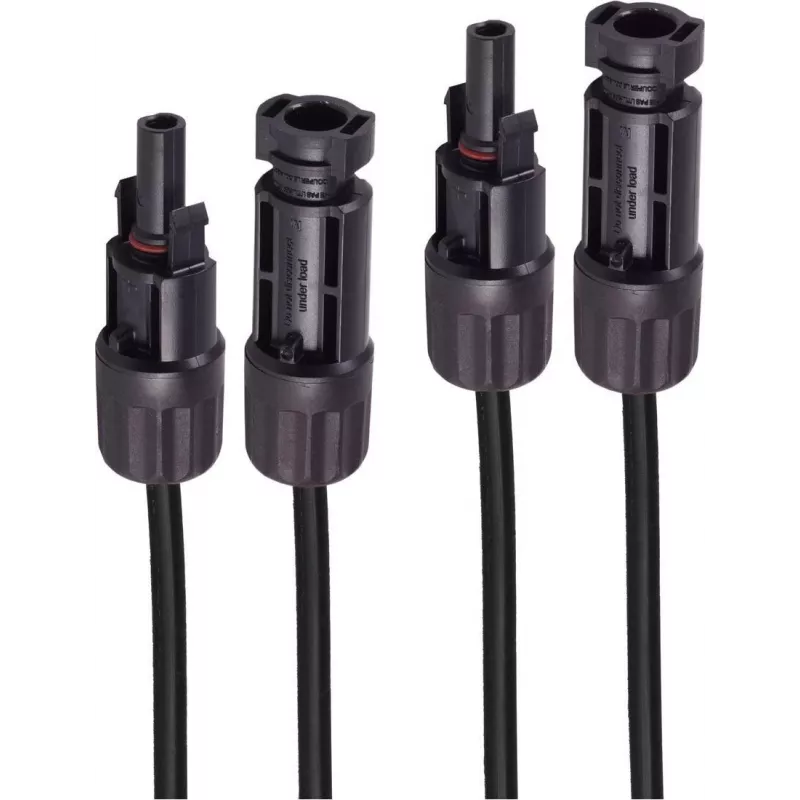

Each cable features pre-assembled MC4 connectors (male and female) rated IP67, providing secure and weatherproof connections. The XLPE insulation supports a rated voltage of 1000V DC and a maximum current of 30A, while the operating temperature range from -40°C to +90°C guarantees performance in extreme climates.

Suitable for

• Connecting solar panels to inverters or combiner boxes
• Extending existing PV module cables
• Ground-mounted and rooftop solar arrays
• Commercial and residential photovoltaic systems

Key specifications

• Conductor cross-section: 4 mm²
• Cable length per piece: 50 m (total 100 m in set)
• Number of cables: 2 (one with male MC4, one with female MC4)
• Conductor material: Tinned copper
• Insulation: XLPE (cross-linked polyethylene)
• Jacket: UV-resistant, halogen-free
• Rated voltage: 1000 V DC
• Rated current: 30 A
• Connector ingress protection: IP67
• Certifications: TÜV, CE

Recommendations

For optimal safety and performance, ensure that the cable is installed by a qualified electrician and that all connections are properly tightened. Use cable clips or conduits to protect against mechanical damage and UV exposure.
