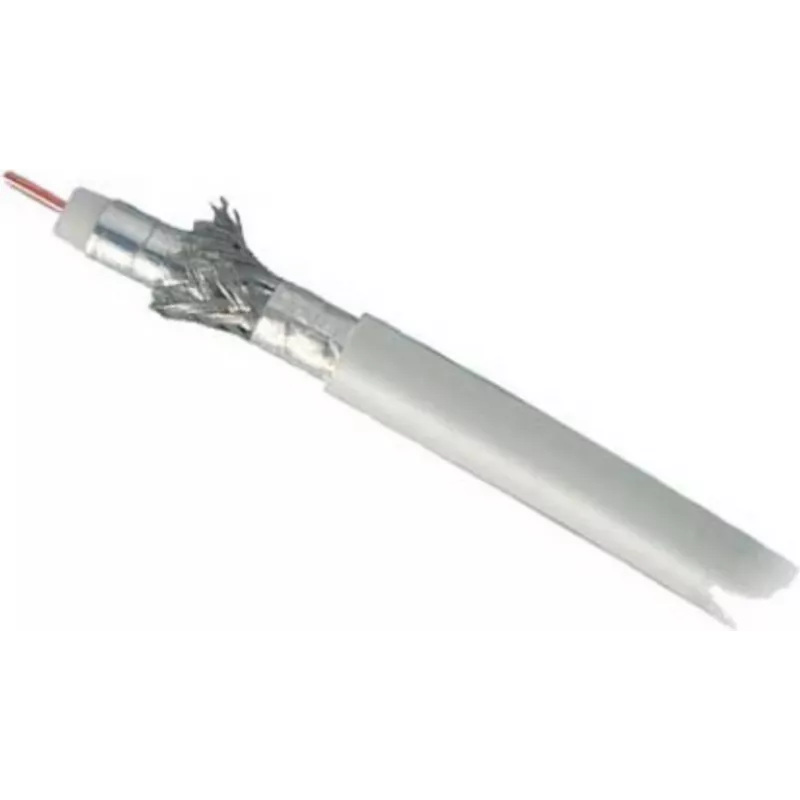

SHIVERPEAKS S/CONN maximum connectivity SAT-coaxkabel 0,9/4,6, drievoudig afgeschermd, CCS, 100m (81900-15PSP)

Satellite installers and CATV technicians rely on this 100-meter reel when running long, dependable signal lines from dishes and distribution points to receivers. The SHIVERPEAKS S/CONN maximum connectivity SAT coaxial cable delivers robust triple shielding and a solid copper-clad steel core, ensuring clean transmission even in demanding RF environments.

Key specifications

• Impedance: 75 Ohm
• Inner conductor: 0.9 mm copper-clad steel (CCS)
• Dielectric: 4.6 mm foamed polyethylene (PE)
• Shielding: triple layer with 90% braid coverage, Class A screening attenuation >100 dB
• Jacket: PVC, outer diameter 6.8 mm, white
• Length: 100 m
• Attenuation: 6.0 dB/100m @ 100 MHz, 13.5 dB/100m @ 500 MHz, 19.5 dB/100m @ 1000 MHz, 29.5 dB/100m @ 2000 MHz, 32.5 dB/100m @ 2400 MHz
• Applications: Satellite (SAT), DVB-T, Cable TV (CATV)

Why choose it

The triple shielding with high braid coverage and Class A screening attenuation minimizes ingress and egress of interference, preserving signal integrity over long runs. The copper-clad steel conductor offers a good balance of strength and conductivity, while the foamed PE dielectric maintains stable impedance. The white PVC jacket is durable and easy to identify in installations.

Ideal use cases

• Satellite dish to receiver connections in residential or commercial setups
• CATV trunk and distribution lines
• DVB-T antenna systems
• Long indoor or outdoor cable runs where low loss is critical

Good to know

This cable is supplied on a convenient 100 m reel, allowing installers to cut to exact lengths. It is compatible with standard F-type connectors (not included). The cable is white, making it suitable for visible indoor routing or outdoor use where UV resistance is required (PVC jacket).
