Shuttle CXP01 - kabel voor externe drukknop voor pc's

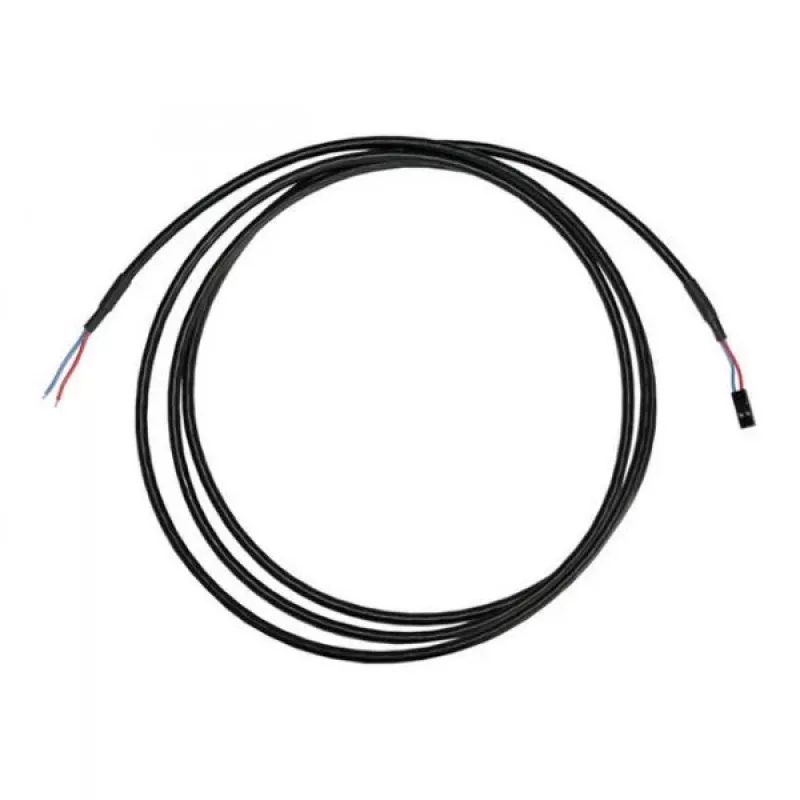

Some Shuttle XPC models include a rear-panel connector for an external power button. The Shuttle CXP01 is a 2-metre cable that connects a push button switch to compatible Shuttle PCs, enabling power on/off control when the system is installed in locations that are hard to access, such as VESA-mounted or otherwise remotely placed enclosures. The cable has a 4.5 mm diameter, a black finish and fits universal chassis connector types.

Advantages

The CXP01 cable allows convenient remote control of the PC power function without altering the chassis or internal wiring. Its 2 m length provides flexibility for mounting the push button at a distant location. The fitted connector ensures a secure, plug-and-play connection with compatible Shuttle XPC models.

Suitable for

• VESA-mounted Shuttle XPC systems
• Systems installed inside kiosks, cabinets or tight enclosures
• Remote-mounted cases where front-panel access is limited
• Custom installations requiring an external power switch

Key specifications

• Product name: Cable for external push button switch for PCs Shuttle CXP01
• Length: 2 m
• Diameter: 4.5 mm
• Colour: Black
• Compatibility: Shuttle XPC models with rear-panel external power-button connector; universal chassis types
• Brand: SHUTTLE
• MPN: CXP01
• EAN: 4046047103119

How to use

Turn off the PC and disconnect power before installation. Plug the fitted connector of the CXP01 into the external power-button header on the Shuttle XPC rear panel. Mount a compatible momentary push button at the desired external location and connect it to the other end of the cable. Restore power and test the switch to verify the PC powers on and off correctly.

Recommendations

Use a momentary (normally open) push button switch rated for low-voltage signal connections. Avoid routing the cable near high-voltage power lines or moving parts. For permanent installations, secure the cable along its route to prevent strain on connectors.
