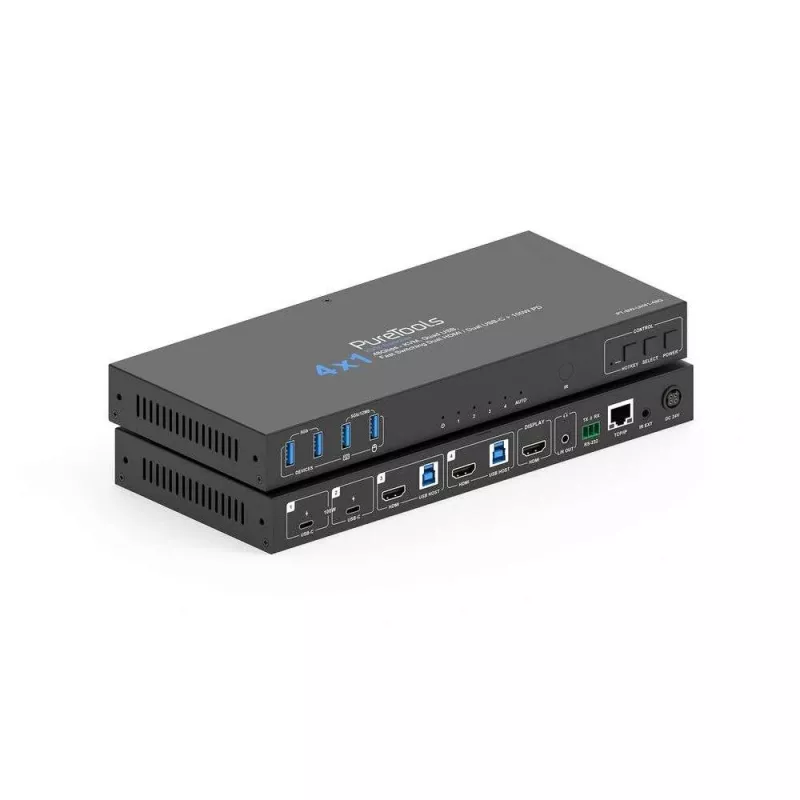

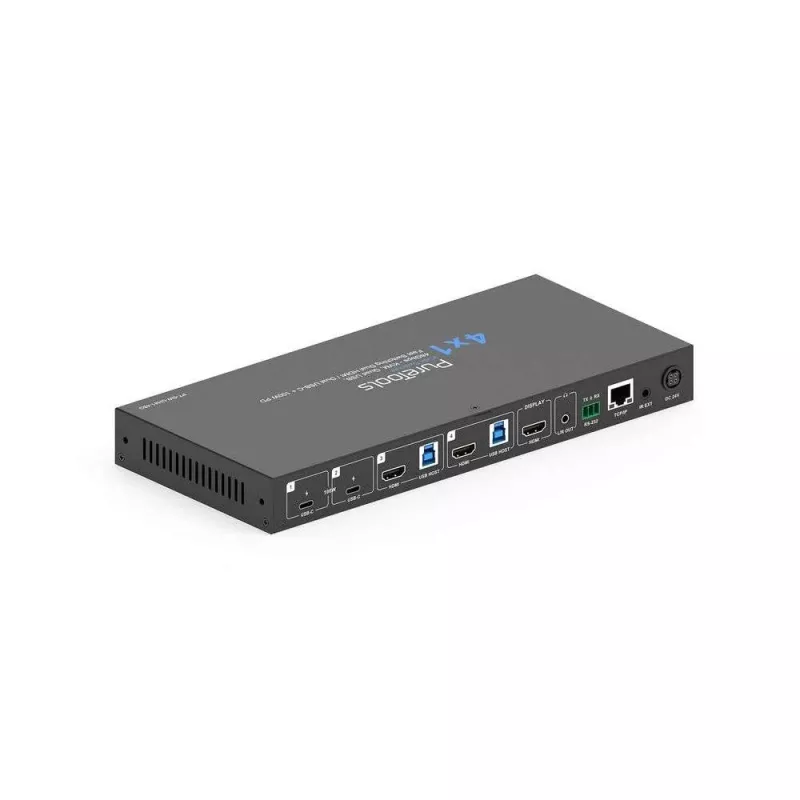

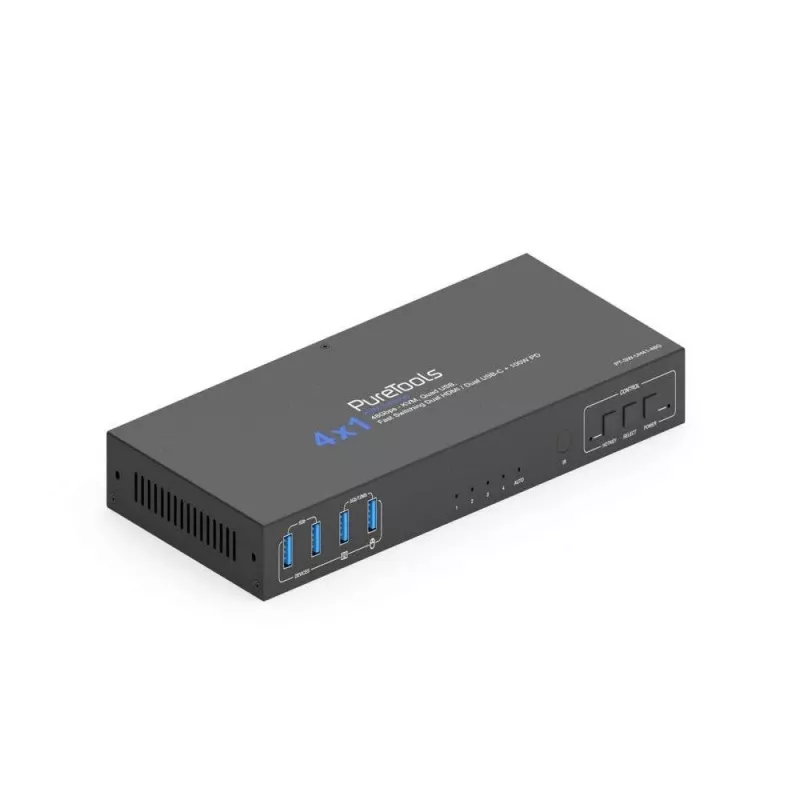

PureLink 4x1 USB-C HDMI 48G KVM-switcher

The PureLink PT-SW-UH41-48G is a professional 4x1 KVM switcher that combines four USB-C and HDMI 2.1 inputs into a single output, supporting resolutions up to 8K@60Hz and 4K@120Hz. With full USB 3.2 Gen 2 KVM functionality, it allows seamless sharing of keyboard, mouse, and other peripherals between multiple sources. Ideal for high-end gaming, video production, and multi-device workstations.

Advantages

Experience ultra-high bandwidth with 48 Gbps HDMI 2.1 support, enabling uncompressed 8K video and high refresh rates. The integrated USB-C inputs handle both video and data, simplifying connectivity for modern laptops and tablets. HDCP 2.3 compliance ensures compatibility with protected content, while HDR10, Dolby Vision, and VRR/ALLM deliver stunning visuals for gaming and media.

Suitable for

• Professional AV setups requiring multiple source switching
• Gaming enthusiasts needing high refresh rates and VRR
• Content creators sharing peripherals across computers
• Conference rooms with mixed USB-C and HDMI devices

Key specifications

• Inputs: 4x HDMI 2.1, 4x USB-C (video/data), 4x USB-B 3.2 Gen 2 (KVM)
• Outputs: 1x HDMI 2.1, 2x USB-A 3.2 Gen 2, 2x USB-A 2.0
• Max Resolution: 8K@60Hz (4:4:4) / 4K@120Hz (4:4:4)
• HDMI Bandwidth: 48 Gbps
• HDCP: 2.3 (backward compatible)
• USB Standard: USB 3.2 Gen 2 (10 Gbps)
• HDR Support: HDR10, HDR10+, HLG, Dolby Vision
• Audio: LPCM 7.1, Dolby Atmos, DTS:X

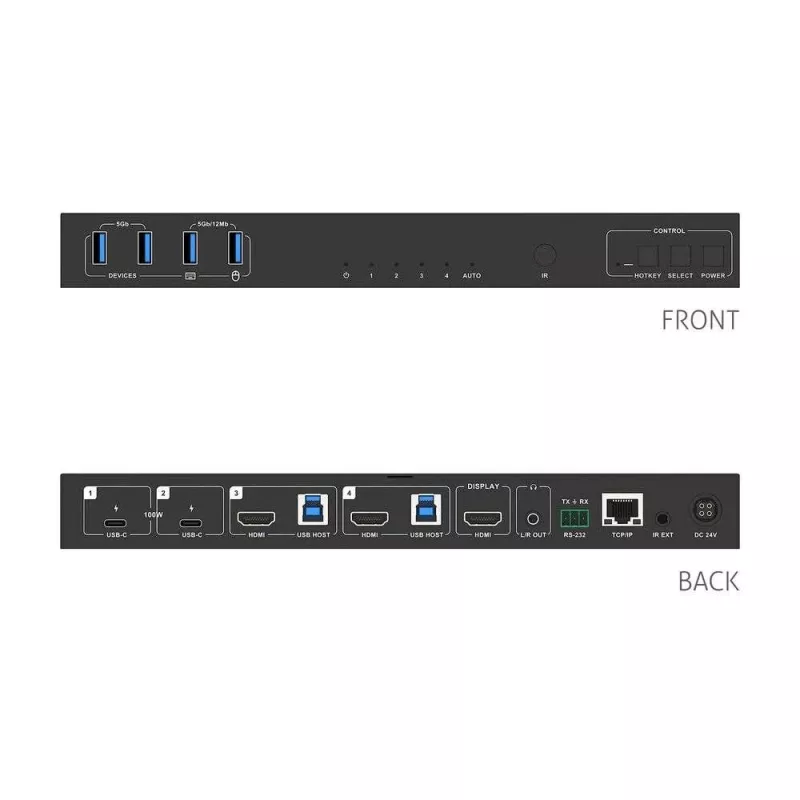

• Control: Front panel buttons, hotkeys, IR remote
• Power: DC 12V/3A
• Chassis: Metal

Recommendations

For optimal performance, use certified HDMI 2.1 cables and USB 3.2 Gen 2 cables. The included IR remote and front panel buttons provide easy source switching. Ideal for demanding multi-monitor or multi-device environments.
