Siemens 6XV1840-2AH10 Industrial Ethernet FC TP Standard Cable GP 2x2 PROFINET type A - netwerkkabel

Industrial Ethernet FC TP Standard Cable for PROFINET Type A fixed installation, engineered for reliable 10/100 Mbit/s Fast Ethernet connectivity in industrial environments. This 2x2 cable features a robust PVC jacket in green and dual shielding for superior noise immunity.

Advantages

FastConnect system compatibility enables rapid on-site assembly without special tools. The cable's 100 Ω impedance and CAT5e equivalent performance ensure stable data transmission over distances up to 100 m.

Suitable for

• Fixed installation in industrial machinery and plants
• PROFINET networks requiring Type A cable
• General purpose industrial Ethernet applications

Key specifications

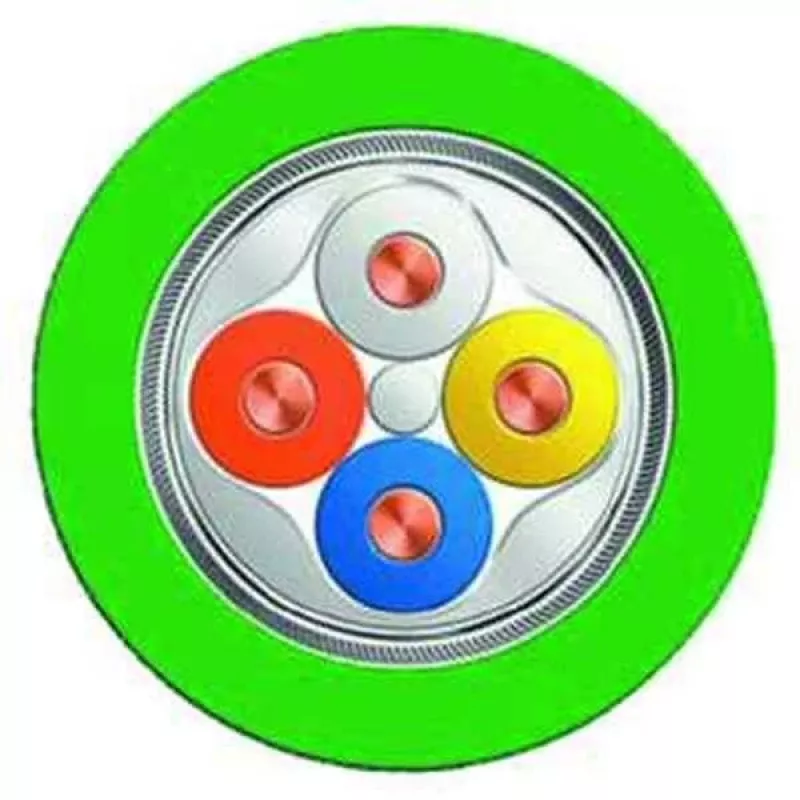

• Conductor: 4 bare copper wires, 0.75 mm² (AWG 18)
• Shielding: Aluminum-clad foil and tin-plated copper braid
• Jacket: PVC, green, outer diameter 6.5 mm
• Impedance: 100 Ω at 100 MHz
• Operating temperature: -20 °C to +60 °C
• Minimum bending radius: 26 mm (fixed installation)
• Attenuation: 22 dB/100 m at 100 MHz
• Loop resistance: max 25 Ω/km
• Voltage rating: 80 V
• Flame retardancy: IEC 60332-1-2

Recommendations

For optimal performance, use with Siemens FastConnect RJ45 connectors and maintain minimum bending radius during installation.
