Siemens deurkoppeling-draaiaandrijving voor 3RV2 vermogensschakelaar 3RV29261K

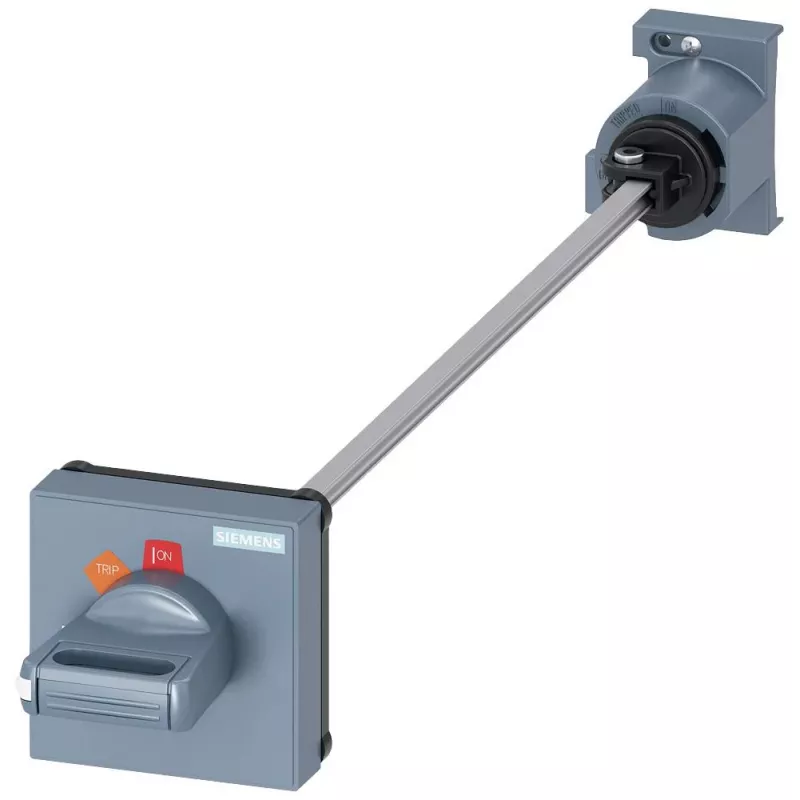

Door-coupling rotary operating mechanism enables remote operation of Siemens SIRIUS 3RV2 motor starter protectors and circuit breakers from outside the cabinet. The rotary handle provides clear ON/OFF switching position indication and can be locked with up to three padlocks for safety during maintenance.

Advantages

Rotary handle with IP65 protection on the front allows operation from outside the enclosure while maintaining a sealed cabinet. The mechanism supports shaft lengths up to 400 mm, accommodating deep cabinets. Lockable design prevents unauthorized switching.

Suitable for

• Siemens SIRIUS 3RV2 circuit breakers and motor starter protectors
• Frame sizes S00, S0, S2, and S3
• Cabinet depths up to 400 mm

Key specifications

• Product type: Door-coupling rotary operating mechanism
• Handle colour: Black
• Degree of protection (front): IP65
• Lockable with up to 3 padlocks
• Operating temperature range: -25 to +60 °C
• Storage temperature range: -40 to +80 °C
• Standards: IEC 60947-2, IEC 60947-4-1

Recommendations

For reliable remote switching of Siemens 3RV2 circuit breakers in industrial control panels, this door-coupling rotary mechanism offers robust construction and clear position indication.
