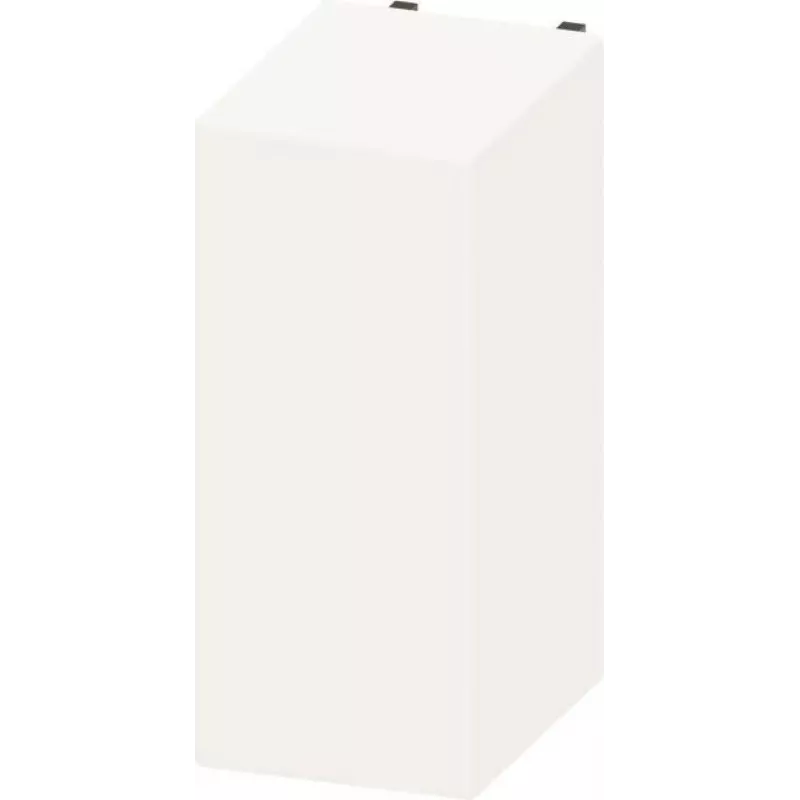

Siemens steekrelais LZX RT424024 24 V DC 4PDT 6 A

The Siemens LZX RT424024 is a high-quality plug-in relay designed for industrial control applications. With 4 changeover contacts (4PDT) and a 24 V DC coil, it offers reliable switching for a wide range of automation tasks. Manufactured by Siemens, this relay ensures long service life and consistent performance.

Advantages

Robust design with silver nickel contacts for low contact resistance and high durability. Low coil power consumption of only 0.5 W reduces energy costs. High mechanical endurance of 30 million cycles ensures long-term reliability. Compact plug-in design allows easy installation and replacement.

Suitable for

• Industrial control panels
• Building automation systems
• Machine control
• Process automation
• Relay logic circuits

Key specifications

• Relay Type: Plug-in Relay
• Number of Contacts: 4
• Contact Configuration: 4 Changeover (4 CO / 4PDT)
• Coil Voltage: 24 V DC
• Coil Power Consumption: 0.5 W
• Rated Switching Current: 6 A
• Rated Switching Voltage: 250 V AC / 24 V DC
• Contact Material: Silver Nickel (AgNi)
• Mechanical Endurance: 30 x 10^6 switching cycles
• Electrical Endurance: 100 x 10^3 switching cycles (at rated load)
• Operating Temperature Range: -40 to +70 °C
• Storage Temperature Range: -40 to +85 °C
• Protection Degree: IP40
• Mounting Type: Plug-in (for relay sockets)
• Dielectric Strength (Coil-Contact): 2500 V AC
• Dielectric Strength (Open Contacts): 1000 V AC
• Operate Time: Approx. 7 ms
• Release Time: Approx. 3 ms
• Approvals: UL, CSA, VDE, CCC, CE

Recommendations

For optimal performance, use with compatible Siemens relay sockets. Ensure proper mounting and wiring according to the manufacturer's specifications. Suitable for use in dry environments; for humid or dusty conditions, consider additional protection.
