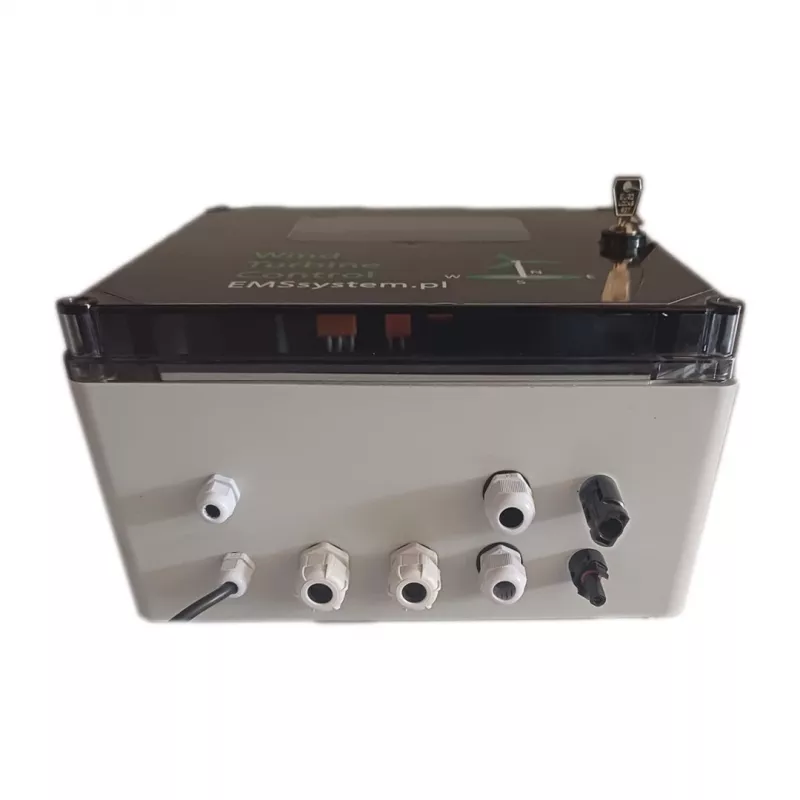

SIRO windturbinecontroller 1500W/2800W/5000W 48-240V DC PWM LCD-display

The SIRO controller is a professional-grade charge controller designed specifically for off-grid wind turbine systems. It supports wind turbines with power ratings of 1500W, 2800W, and 5000W, making it a versatile solution for small to medium wind energy installations. The controller features an intelligent PWM charging algorithm, automatic and manual dynamic braking, and a comprehensive LCD display for real-time monitoring of voltage, current, power, and battery status. Built with a durable aluminum alloy housing and natural air cooling, it ensures reliable operation in demanding environments.

Advantages

Configurable for multiple turbine power levels (1500W, 2800W, 5000W) and battery voltages (48V, 96V, 120V, 240V DC). High efficiency >97% and low quiescent current <20mA. Multiple protection features including overcharge, over-discharge, reverse polarity, short circuit, over-current, lightning, and overspeed. Optional RS485 communication for PC monitoring.

Suitable for

• Off-grid wind power systems
• Remote cabins, farms, and telecommunications
• Hybrid renewable energy setups

Key specifications

• Rated Wind Turbine Power: Up to 5000W (configurable for 1500W, 2800W, 5000W)
• Rated Battery Voltage: 48V / 96V / 120V / 240V DC (auto-sensing or selectable)
• Charging Algorithm: PWM
• Braking Method: Automatic & Manual Dynamic Braking
• Display Type: LCD (Voltage, Current, Power, Battery Status)
• Overcharge Protection Voltage: Configurable (e.g., 14.4V/cell)
• Over-discharge Protection Voltage: Configurable (e.g., 10.8V/cell)
• Protection Features: Battery overcharge, over-discharge, reverse polarity, short circuit, over-current, lightning, wind turbine over-speed
• Operating Temperature: -20°C to +55°C
• Operating Humidity: 0-90% RH (Non-condensing)
• Enclosure Protection Rating: IP20
• Cooling Method: Natural Air Cooling
• Quiescent Current: <20mA
• Efficiency: >97%
• Communication Interface: RS485 (Optional)
• Housing Material: Aluminum Alloy
• Recommended Battery Types: Lead-acid (Gel, AGM, Flooded), Lithium (Configurable)
• Mounting Type: Wall Mount

Recommendations

For optimal performance, ensure the turbine power and battery voltage are correctly configured. Use appropriate cable sizes and fusing. The controller is not suitable for grid-tied systems without additional equipment.
