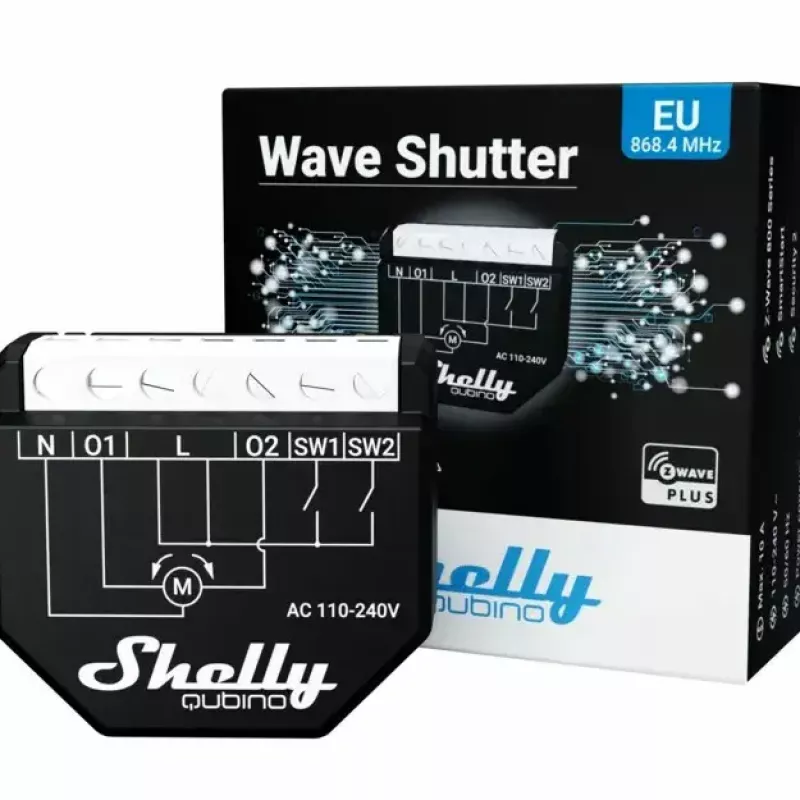

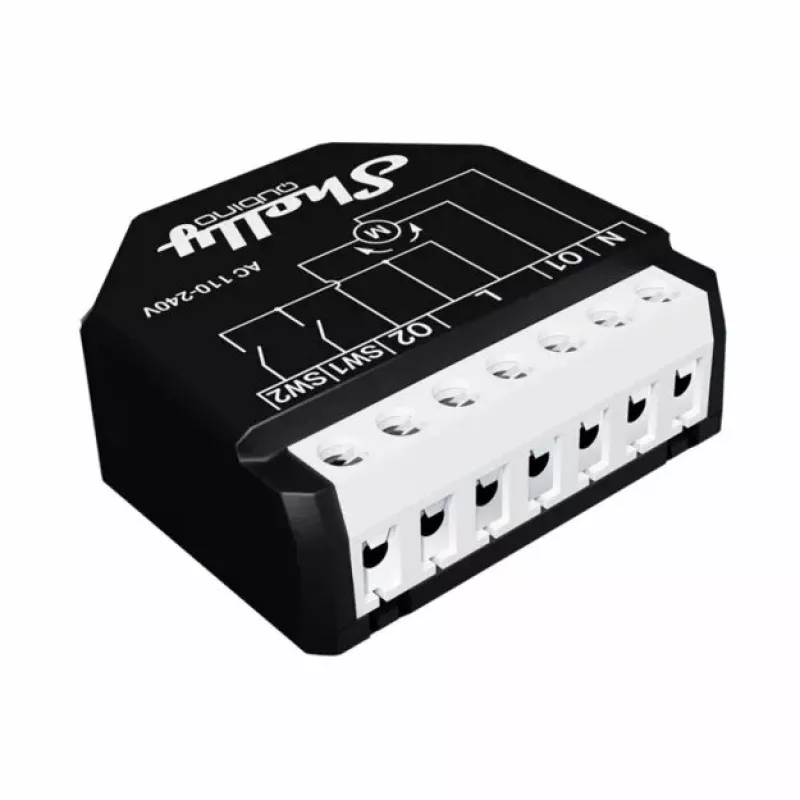

Slim relais Shelly Wave Shutter zwart 10 A 110–230 V, max. bereik 40 m, 25 dBmW

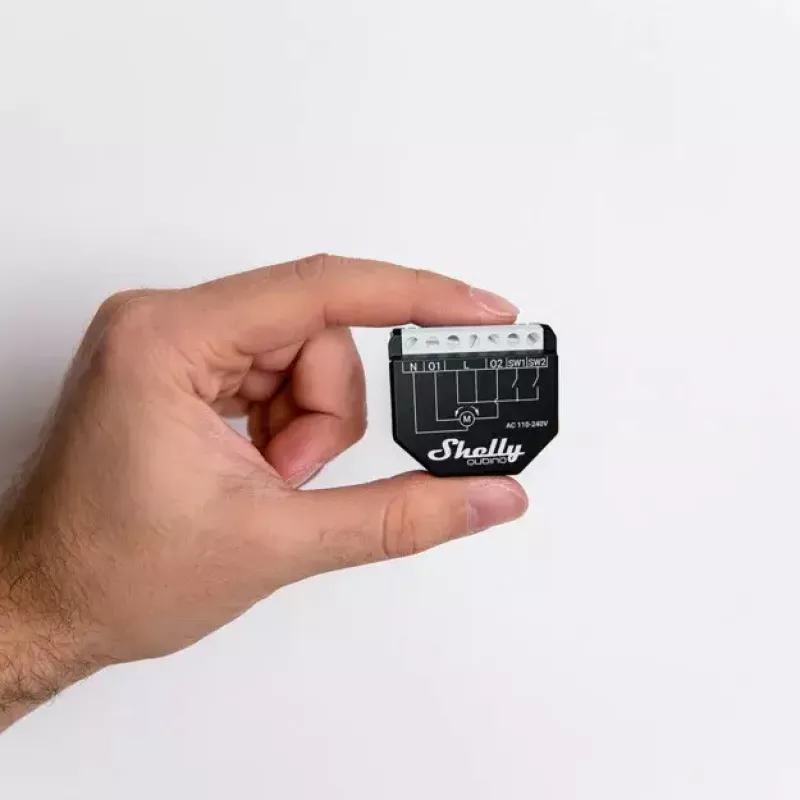

The Shelly Qubino Wave Shutter Black is a compact Z-Wave™ shutter control relay with built-in power measurement, designed for automated and remote operation of roller shutters, blinds, awnings, windows, pool covers and other devices driven by bidirectional AC motors. It supports a maximum channel current of 10 A and operates from 110–230 V AC. The module’s small dimensions (37 x 42 x 16 mm) and low weight (29 g) enable discreet in-wall installation and integration into home automation systems while maintaining low power consumption of 0.3 W.

Advantages

The device provides precise position control for shutters and is compatible with Z-Wave networks for remote management. Built-in power measurement allows monitoring of energy use and detection of abnormal consumption. Its 10 A per channel rating supports typical motor loads, and the compact size facilitates installation behind switches or inside junction boxes. Low standby power consumption improves overall system efficiency.

Suitable for

• Automated roller shutters and blinds
• Awnings and window actuator control
• Pool cover motors driven by bidirectional AC motors
• Integration into Z-Wave based home automation systems

Key specifications

• Brand: Shelly
• Model / MPN: Shelly_W_Shutter
• EAN: 3800235269008
• Protocol: Z-Wave™
• Max current: 10 A per channel
• Input voltage: 110–230 V AC
• Power consumption (standby): 0.3 W
• Dimensions: 37 x 42 x 16 mm
• Weight: 29 g

How to use

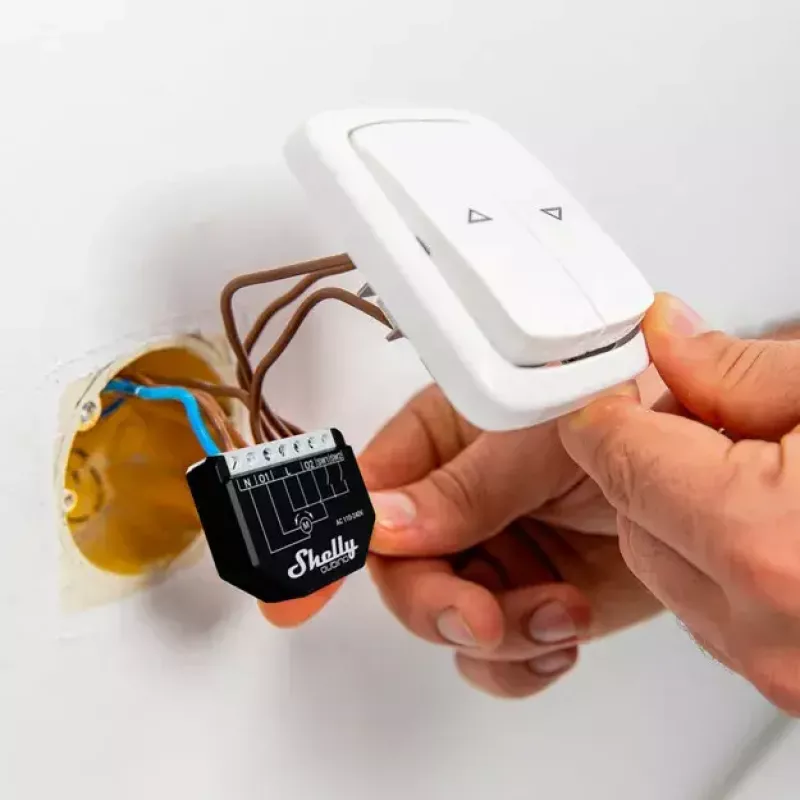

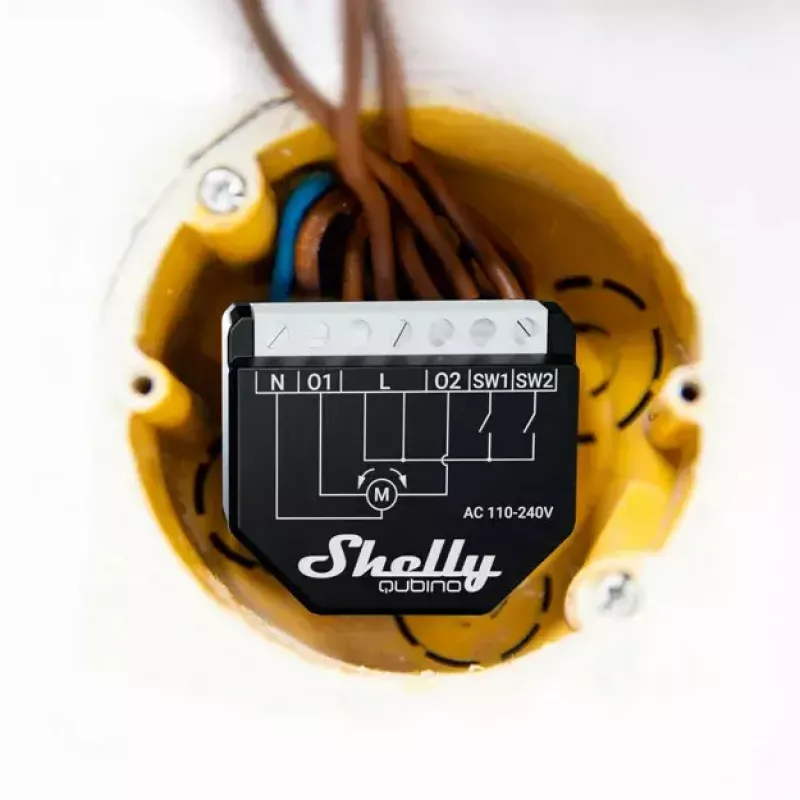

Install the Shelly Qubino Wave Shutter Black behind the wall switch or inside a junction box according to local electrical codes. Connect the bidirectional AC motor wires to the designated relay outputs and supply the module with 110–230 V AC. Pair the relay with a Z-Wave controller following the controller’s inclusion procedure. Configure travel limits and calibration if required by the motor type, and use the Z-Wave interface or compatible apps to set up scenes, schedules, and remote control.

Recommendations

For safe and reliable operation, verify the motor’s current draw does not exceed 10 A per channel. Use a qualified electrician for installation and follow Z-Wave controller guidelines for secure pairing and firmware updates to ensure compatibility and stability.
