Smart Light Switch Avatto TS60-EU-W2 Wi‑Fi compatibel met afstandsbedieningsondersteuning

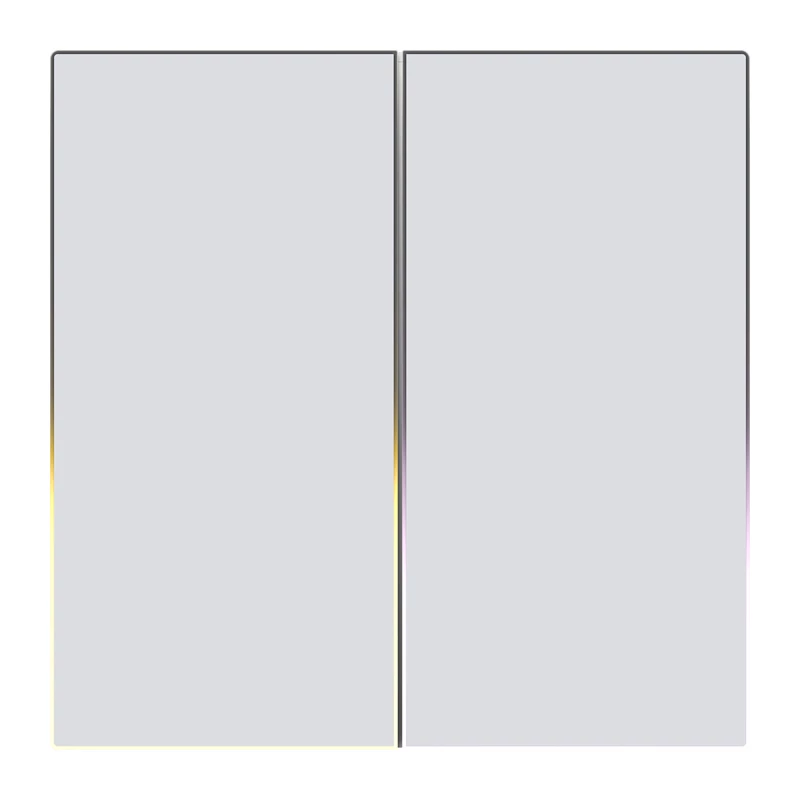

The Avatto TS60-EU-W2 is a 2-gang smart light switch that lets you control two independent lighting circuits either by touch or remotely via a mobile app. It connects to a 2.4 GHz Wi-Fi network and is compatible with Smart Life and Tuya Smart, enabling remote control, scheduling and voice assistant integration. The compact white touch panel measures 80 × 80 mm and is made of flame-retardant PC plastic. The switch supports up to 800 W per circuit and a maximum current of 10 A.

Advantages

The TS60-EU-W2 supports two independent channels for multi-point lighting and offers both manual touch control and app-based operation. Setup is straightforward and does not require advanced technical skills. The device works with common voice assistants and allows creation of timers and automation scenarios. Soft edge illumination helps locate the switch in the dark while the flame-retardant housing increases safety.

Key specifications

• Manufacturer: Avatto
• Model: TS60-EU-W2
• Version: 2-gang
• Operating voltage: AC 100–240 V (50/60 Hz)
• Maximum load: 800 W per circuit (resistive)
• Maximum current: 10 A
• Wireless frequency: Wi‑Fi 2.4 GHz
• Wi‑Fi standard: IEEE 802.11 b/g/n
• Standby power consumption: 0.1 mA
• Housing material: flame-retardant PC plastic
• Dimensions: 80 × 80 mm

How to use

Install the switch by connecting the wires according to the supplied diagram and secure it with the included mounting screws. Put the device into pairing mode by holding the button for 5 seconds until the backlight flashes. Add the switch in the Smart Life or Tuya Smart app; the app will detect the device and guide you through final configuration. After pairing, control each channel from the app, set schedules and integrate the switch with a compatible voice assistant for hands-free operation.

Recommendations

Ensure your Wi‑Fi router operates on the 2.4 GHz band during setup. For safe operation, observe the maximum load and current limits (800 W / circuit, 10 A) and follow local electrical regulations; have a qualified electrician perform the installation if you are not confident in working with mains wiring.
