Somfy 1240508 rolluik-automatiseringsset 60 mm 140 W 20 Nm

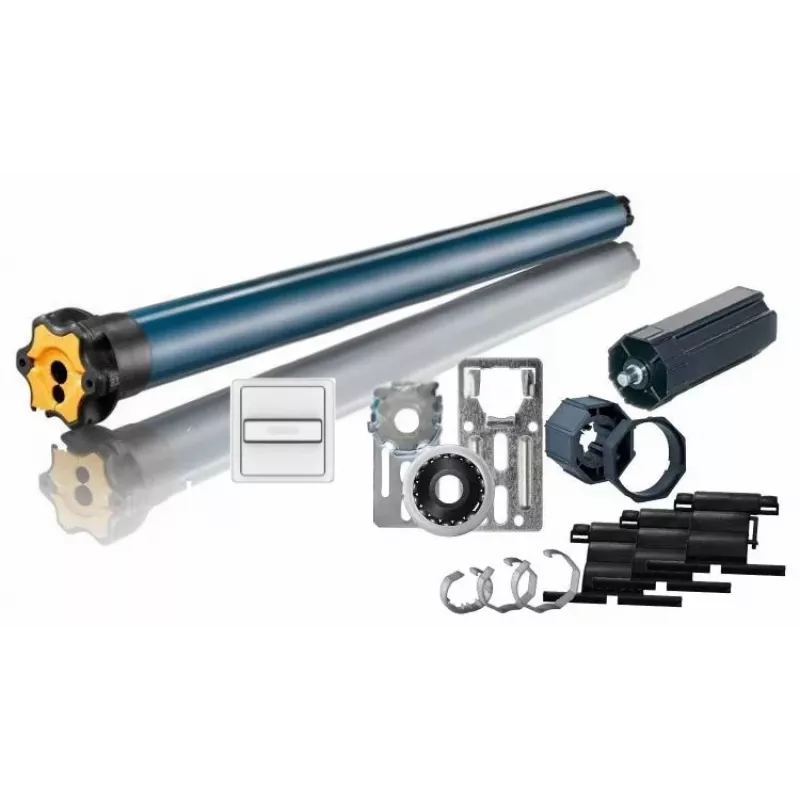

For electricians and installers automating roller shutters in residential or light commercial settings, this Somfy tubular motor set provides a complete solution. It includes a 20 Nm motor with integrated RTS radio receiver, suitable for 60 mm octagonal shafts, and supports electronic end position adjustment and obstacle detection.

Key specifications

• Motor type: Tubular motor
• Control technology: RTS (Radio Technology Somfy)
• Torque: 20 Nm
• Speed: 17 rpm
• Power consumption: 140 W
• Operating voltage: 230 V AC, 50 Hz
• Protection class: IP44
• Cable length: 2.5 m
• Compatible shaft diameter: 60 mm (octagonal)
• Motor diameter: 45 mm
• Motor length: 480 mm
• End position adjustment: Electronic, automatic
• Obstacle detection: Yes
• Freeze protection: Yes
• Integrated radio receiver: Yes
• Soft start/stop function: Yes
• Application: Roller shutters
• Max. lifting capacity: 38 kg

Why choose it

This motor offers reliable automation with RTS radio technology, allowing remote control without additional wiring. Electronic end position adjustment and obstacle detection enhance safety and convenience.

Ideal use cases

• Automating roller shutters in homes and offices
• Retrofitting existing manual shutters with motorization
• Integrating with Somfy RTS control systems

Good to know

The motor is designed for 60 mm octagonal shafts and has an IP44 protection rating, making it suitable for outdoor installation in protected areas.
