Somfy Ixengo L 3S+ IO standaardpakket voor dubbele draaipoorten tot 8 m

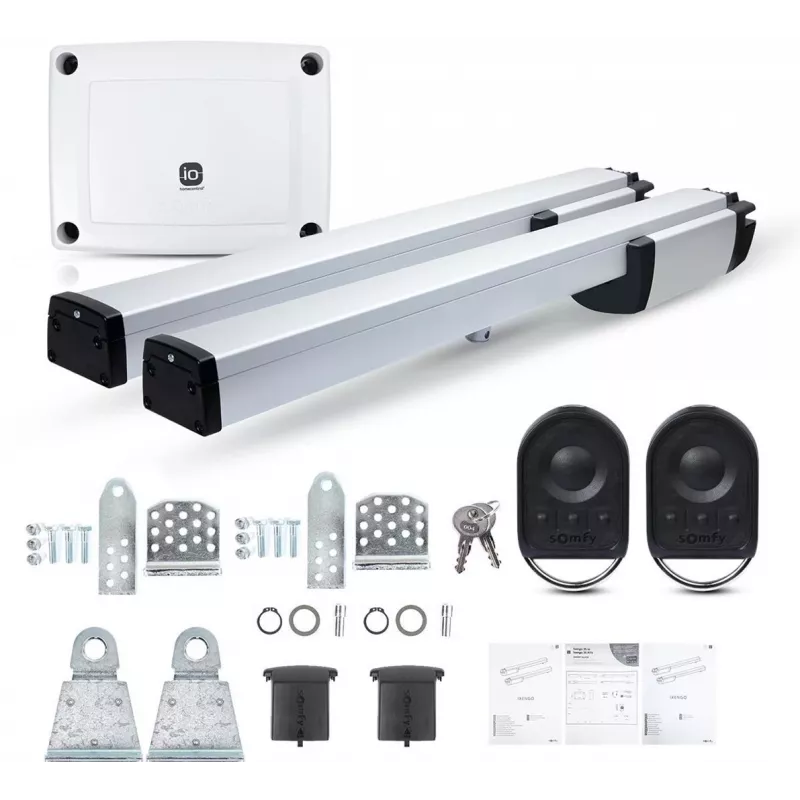

The Somfy Ixengo L 3S+ IO Standard Pack is a complete automation solution for double-leaf swing gates up to 8 meters total width. Designed for intensive residential and collective use, this pack includes two electromechanical linear actuators, a 3S+ IO control unit, two Keygo IO remote controls, one pair of Master Pro Bitech photocells, and a 24V flashing light. The system operates on 230V AC and features 24V DC motors with Somfy IO-homecontrol bidirectional radio technology for reliable communication.

Advantages

This pack offers easy installation and setup, with soft start/stop and obstacle detection for enhanced safety. The manual override with key ensures operation during power outages. The IP44-rated motors are durable in various weather conditions, and the system supports battery backup (optional accessory) for continued functionality.

Suitable for

• Double-leaf swing gates with leaf width up to 4 m per leaf
• Gate leaf weight up to 400 kg per leaf
• Intensive residential and collective applications

Key specifications

• Gate Type: Double-leaf swing gates
• Max. Gate Leaf Width: 4 m per leaf (8 m total)
• Max. Gate Leaf Weight: 400 kg per leaf
• Motor Type: Electromechanical linear actuator
• Power Supply: 230V AC - 50Hz
• Motor Operating Voltage: 24V DC
• Radio Technology: Somfy IO-homecontrol (bi-directional)
• Opening Time (90°): ~16 seconds
• Max. Opening Angle: 120°
• Intensity of Use: Intensive (Residential & Collective)
• Protection Rating: IP44
• Operating Temperature: -20°C to +60°C
• Safety Features: Obstacle detection, Soft start/stop
• Manual Override: Yes, with key
• Included Remote Controls: 2x Somfy Keygo IO (4-channel)
• Included Safety Sensors: 1x Pair of Somfy Master Pro Bitech photocells
• Included Warning Light: 1x Somfy Master Pro 24V flashing light
• Control Unit Model: Somfy 3S+ IO
• Battery Backup: Compatible (optional accessory required)
• Max. Thrust Force: 2000 N

Recommendations

For optimal performance, ensure the gate structure is in good condition and properly balanced. Professional installation is recommended. The system is compatible with Somfy IO-homecontrol accessories for expanded functionality.
