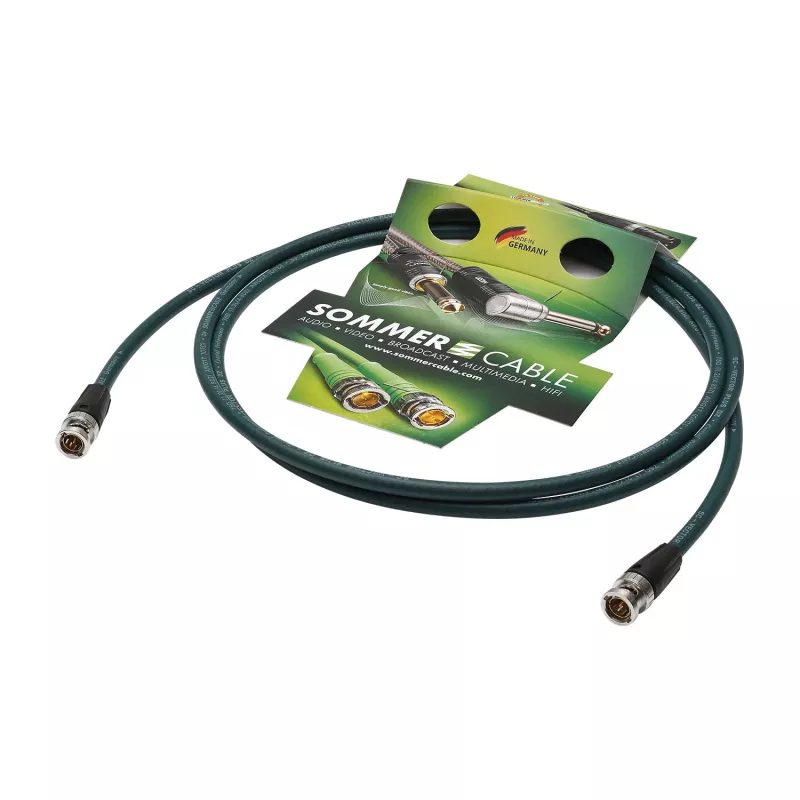

Sommer Cable SC-Vector PLUS 1.2/4.8 DZ UHD video-patchkabel, BNC-stekker naar BNC-stekker, NEUTRIK, groen, 30 m (DZGR-3000-GN-SW)

The Sommer Cable SC-Vector PLUS HD-SDI Video Patch Cable is a professional-grade coaxial cable designed for high-definition video transmission. With a length of 0.5 meters and BNC male connectors on both ends, it is ideal for patch panel connections in broadcast, production, and AV environments. The cable supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI standards, ensuring compatibility with a wide range of equipment.

Advantages

This cable offers exceptional signal integrity thanks to its 75 Ohm impedance, solid copper conductor, and double shielding (copper braid 95% + AL/PT foil). The gas-foamed PE dielectric minimizes signal loss, while the PVC jacket provides durability and flexibility. The black color ensures a professional appearance in any setup.

Suitable for

• Broadcast studios and production trucks
• HD-SDI and 12G-SDI video connections
• Patch panels and short-distance interconnects
• Professional AV and security systems

Key specifications

• Cable type: HD-SDI Video Patch Cable
• Series: Sommer Cable SC-Vector PLUS
• Impedance: 75 Ohm
• Connectors: BNC Male to BNC Male
• Length: 0.5 m
• Conductor: Solid Copper, 1.2 mm diameter
• Dielectric: Gas-foamed PE
• Shielding: Double (Copper Braid 95% + AL/PT Foil)
• Outer diameter: 6.1 mm
• Jacket material: PVC
• Color: Black
• Standards: SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI

Recommendations

For optimal performance, use this cable with 75 Ohm BNC connectors and ensure proper termination. Ideal for rack-mounted patch bays and short cable runs where signal quality is critical.
