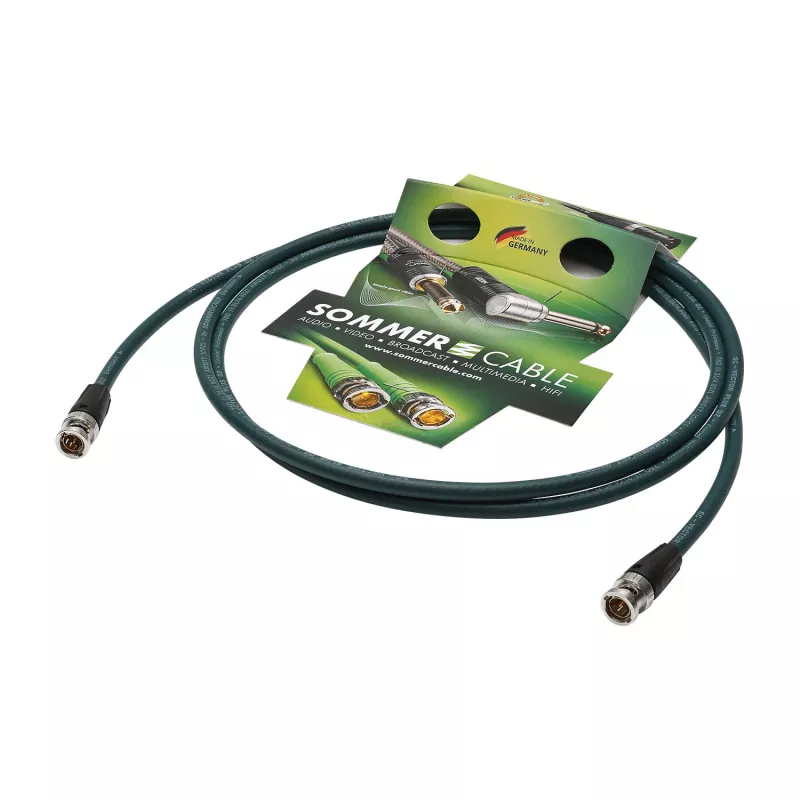

Sommer Cable SC-Vector PLUS 1.2/4.8 DZ UHD video-patchkabel, BNC-stekker naar BNC-stekker, NEUTRIK, groen, 50 m (DZGR-5000-GN-SW)

The Sommer Cable SC-Vector PLUS 1.2/4.8 DZ is a professional coaxial video patch cable designed for high-definition serial digital interface (HD-SDI) and HDTV applications. With a length of 1 meter and BNC male connectors on both ends, this cable ensures reliable signal transmission for broadcast, studio, and CCTV installations.

Advantages

This cable features a 75 Ohm impedance and double shielding (copper braid + AL/PT foil) for excellent protection against electromagnetic interference. The gas-foamed PE dielectric and OFC copper conductor guarantee low attenuation and high signal integrity, making it ideal for demanding video environments.

Suitable for

• HD-SDI, 3G-SDI, and SDI video connections
• HDTV broadcast and production studios
• Professional CCTV and surveillance systems
• Rack and patch panel wiring in AV installations

Key specifications

• Cable type: Coaxial Video Cable
• Series: Sommer Cable SC-Vector PLUS 1.2/4.8 DZ
• Impedance: 75 Ohm
• Connectors: BNC Male to BNC Male
• Length: 1.0 meter
• Conductor: OFC Copper, 1x 0.80 mm (AWG 20)
• Dielectric: Gas-foamed PE, 4.8 mm diameter
• Shielding: Double (Copper Braid ~95% + AL/PT Foil 100%)
• Jacket: PVC, 6.0 mm diameter, Black
• Attenuation @200MHz/100m: 10.5 dB
• Attenuation @3000MHz/100m: 46.5 dB
• Return Loss (up to 3 GHz): >20 dB
• Operating Temperature: -30 °C to +70 °C

Recommendations

For optimal performance, use with professional HD-SDI equipment and ensure proper cable routing to avoid sharp bends. This cable is suitable for permanent installations and patch panels.
