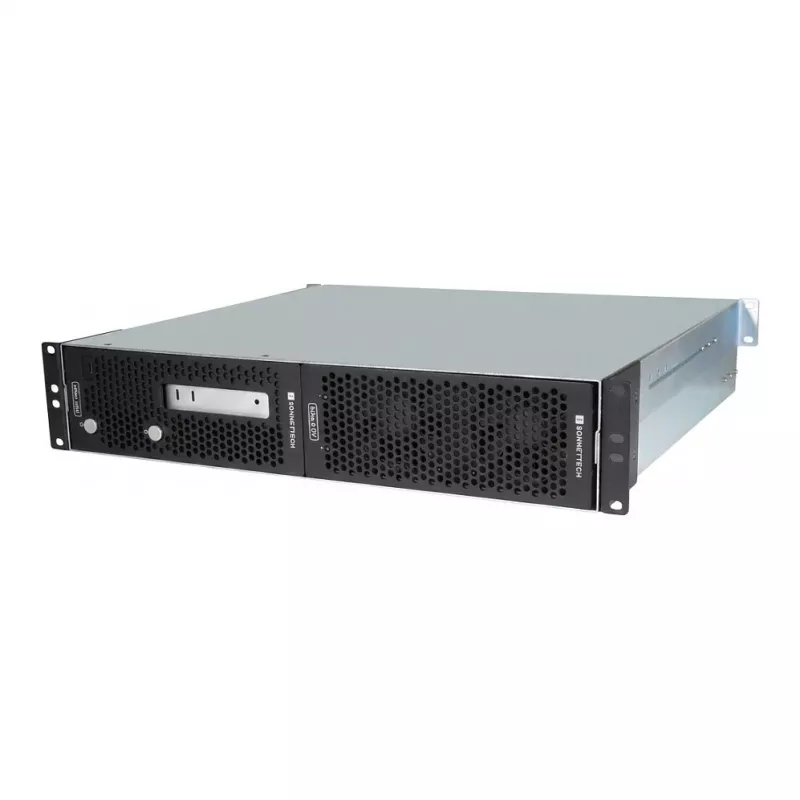

Sonnet xMac mini 2024+ 2U Rackmount systeem met Echo II DV module

The Sonnet xMac mini 2024+ 2U Rackmount System with Echo II DV Module is a professional-grade expansion chassis designed to transform your Mac mini into a powerful rackmount workstation. This integrated solution combines a 2U rackmount enclosure with the Sonnet Echo II DV Thunderbolt 4 PCIe expansion module, providing two PCIe 3.0 slots for adding professional audio/video cards, storage controllers, or other PCIe devices. The system delivers 100W USB-C Power Delivery to the Mac mini, ensuring reliable operation. Built with heavy-duty steel and featuring dual temperature-controlled fans, it offers robust cooling and security for your Mac mini. Ideal for studios, broadcast environments, and server rooms, this rackmount system maximizes space efficiency while expanding connectivity.

Advantages

Seamlessly integrates your Mac mini into a 2U rack space, providing two PCIe expansion slots for enhanced functionality. The included Echo II DV module supports Thunderbolt 4 (40Gbps) connectivity, ensuring high-speed data transfer. The 400W ATX power supply delivers ample power to both the Mac mini and expansion cards. Secure internal mounting keeps your Mac mini safe during transport and operation.

Suitable for

• Professional audio and video production studios requiring additional PCIe cards
• Broadcast and live event environments needing reliable rackmount solutions
• Server rooms and data centers utilizing Mac mini for computing tasks
• Post-production facilities that demand high-speed storage and processing

Key specifications

• Rack Unit Size: 2U
• Mac mini Compatibility: Mac mini (M2, M2 Pro, M2 Max, M3, M3 Pro, M3 Max) 2023 and later
• PCIe Expansion Slots: 2x PCIe 3.0 (x8 mechanical, x4 electrical)
• Thunderbolt Interface: Thunderbolt 4 (40Gbps)
• Integrated Module: Sonnet Echo II DV Module
• Power Supply: 400W ATX
• Power Delivery to Mac mini: 100W USB-C Power Delivery
• Internal Drive Bays: 2x 2.5-inch SSD/HDD (optional kit required)
• Front Panel Ports: 1x USB-A, 1x USB-C (for Mac mini)
• Rear Panel Ports: 2x USB-A, 2x USB-C (for Mac mini)
• Cooling System: Dual temperature-controlled fans
• PCIe Card Length Support: Up to 7.75 inches (half-length, full-height)
• Operating System Support: macOS
• Construction Material: Heavy-duty steel enclosure
• Rackmount Kit: Included
• Mac mini Security: Secure internal mounting
• Network Access: Full access to Mac mini's Ethernet ports
• Video Output Access: Full access to Mac mini's HDMI port

Recommendations

For optimal performance, use with a Mac mini (2023 or later) and compatible PCIe cards. The optional 2.5-inch drive kit allows internal storage expansion. Ensure adequate ventilation in your rack setup.
