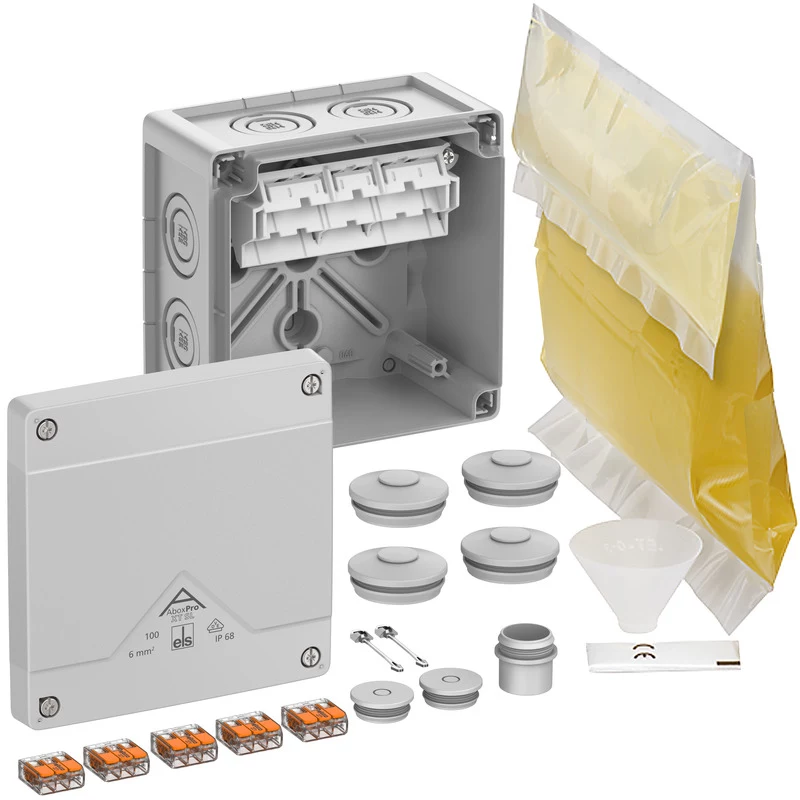

SPELSBERG Abox Pro XT SL-6² aftakdoos, IP68, max. geleider 6 mm², 5-polig, grijs 40646001

This SPELSBERG Abox Pro XT SL-6² junction box offers IP68 protection for demanding environments. Its glass-fibre reinforced polycarbonate housing withstands impact and harsh conditions.

Advantages

Rated at 690 V and 32 A, the enclosure supports conductors up to 6 mm². Pre-punched cable entries (8x M25, 2x M32) simplify installation, while the screw terminal block provides secure connections for 5-pole wiring.

Suitable for

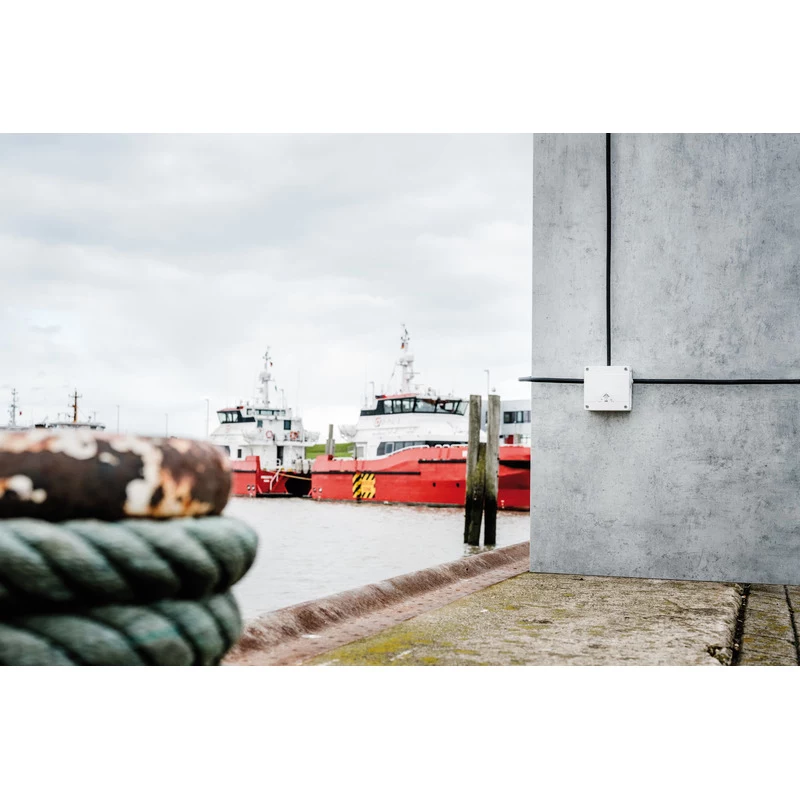

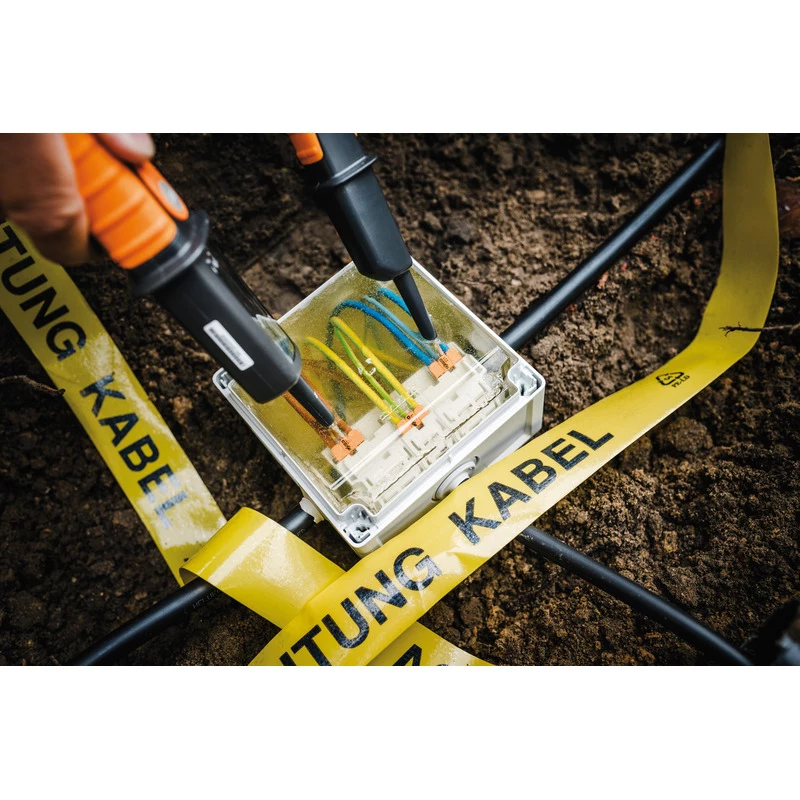

• Industrial and outdoor installations requiring dust-tight and waterproof enclosures.
• Electrical distribution in aggressive environments where mechanical strength is essential.
• Applications needing halogen-free materials and a wide operating temperature range.

Key specifications

• Protection class: IP68
• Rated voltage: 690 V
• Rated current: 32 A
• Max. conductor cross-section: 6 mm²
• Number of poles: 5-pole
• Terminal type: Screw terminal
• Cable entries: 8x M25, 2x M32 (pre-punched)
• Material: Polycarbonate, glass-fibre reinforced
• Colour: Grey (RAL 7035)
• Glow wire test: 960 °C
• Impact resistance: IK08
• Operating temperature range: -35 °C to +80 °C
• Halogen-free: Yes
• Lid fastening: Screwed
• Seal material: TPE
• Mounting type: Surface mount

Recommendations

For reliable, long-term performance in harsh industrial settings, this junction box is a robust choice.
