SSD-behuizing DeLOCK 42018 zilver M.2 40 Gbit/s USB Type-C

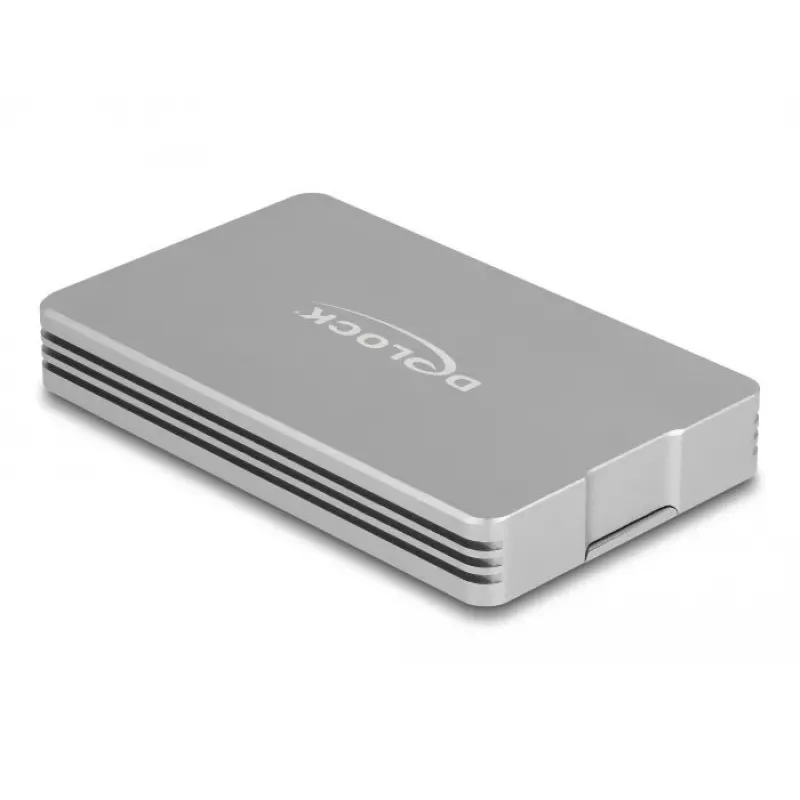

The DeLOCK 42018 is a compact aluminium enclosure for a single M.2 2280 PCIe NVMe SSD. It connects to a PC or laptop via Thunderbolt 3, Thunderbolt 4 or USB‑C (USB4™ compatible) and features a silver metal housing with cooling fins to help maintain optimal memory temperature. The enclosure supports up to 40 Gbit/s transfer rate depending on the host device and uses a USB to NVMe controller; on USB Gen 2x2 ports the effective transfer rate is limited to 10 Gbps.

Advantages

The metal housing with integrated cooling fins provides improved heat dissipation for M.2 NVMe SSDs. USB4™ compatibility allows connection to Thunderbolt 3 and 4 ports as well as standard USB‑C ports, offering flexible host support. Tool‑free installation makes inserting or replacing an M.2 2280 SSD quick and convenient. The enclosure is lightweight and finished in silver aluminium for a durable, compact external storage solution.

Suitable for

• Expanding external storage with an M.2 2280 PCIe NVMe SSD
• Fast file transfers when connected to USB4/Thunderbolt ports
• Portable backup and media libraries for laptops and desktops

Key specifications

• Supported drive: 1 × M.2 2280 PCIe NVMe SSD
• Maximum interface speed: up to 40 Gbit/s (depends on host)
• USB standard: USB4™ (compatible with Thunderbolt™ 3/4 and USB‑C)
• Connector: USB Type‑C
• Material and colour: aluminium, silver
• Tool‑free SSD installation

How to use

Open the enclosure following the captive opening mechanism, insert a compatible M.2 2280 PCIe NVMe SSD into the M.2 slot and secure it according to the enclosure’s tool‑free mechanism. Close the housing and connect the enclosure to the host computer with a USB‑C cable into a USB4/Thunderbolt or USB‑C port. The host operating system should recognise the NVMe SSD as an external drive; if necessary, initialise or format the SSD in the OS disk management utility before first use.

Recommendations

For maximum performance, connect the enclosure to a USB4 or Thunderbolt 3/4 port. When using a USB Gen 2x2 port, expect transfer rates limited to 10 Gbps due to the USB to NVMe controller. Ensure adequate ventilation around the enclosure to support heat dissipation during sustained transfers.
