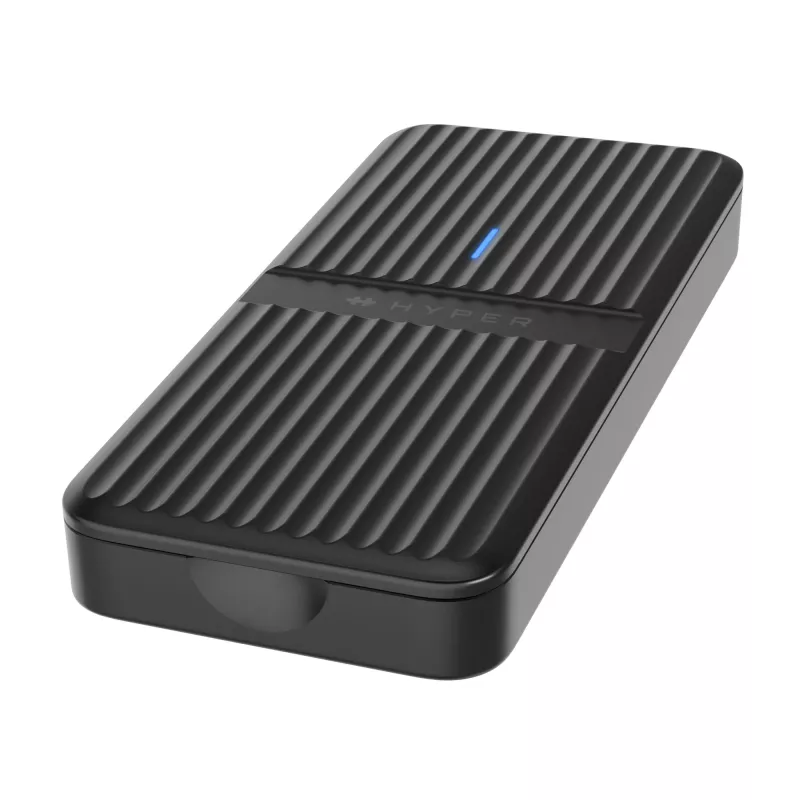

SSD-behuizing Hyper HD2500GL voor M.2 PCIe SSD (USB4 Gen4, USB-C) zwart

Hyper HD2500GL is a single-bay M.2 SSD enclosure that provides PCIe Gen4/Gen3 NVMe performance over a USB4 (USB4 v2 / Thunderbolt 5 compatible) connection. Constructed from recycled aluminium in a black finish, the enclosure supports a wide range of M.2 sizes and can be powered via USB bus power or an external USB-C PD supply. It is designed for fast external storage, backups, media editing and adding PCIe expansion like AI accelerators or networking cards to systems with USB4.

Advantages

The enclosure delivers up to 80 Gbps USB4 bandwidth with sustained PCIe data throughput of up to 64 Gbps, enabling high-performance NVMe transfer speeds without throttling. Tool-free snap-in installation, IP55 protection when used with the supplied silicone sleeve, and an aluminium body with integrated heat dissipation make it convenient, durable and thermally stable for prolonged workloads. Broad M.2 compatibility and hybrid power input (bus-powered or USB-C PD) add flexibility for mobile and stationary use.

Suitable for

• High-speed external NVMe storage for photo, video and content editing workflows
• Portable backups and large file transfers

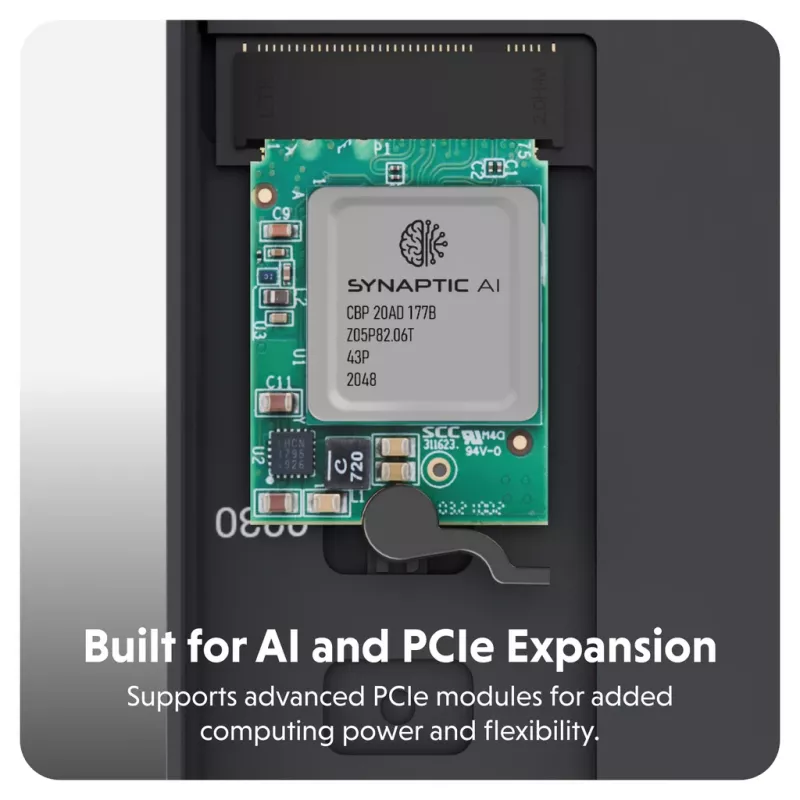

• Connecting AI accelerators or other M.2 PCIe expansion cards to USB4-equipped systems
• Field or on-site use where dust and splash resistance is beneficial

When it may not be suitable

This enclosure requires a host with USB4 (or compatible Thunderbolt interface) to reach maximum bandwidth; older USB standards will limit transfer speeds. Devices that need multiple drive bays, SATA M.2 form factors, or proprietary module types are not supported.

Key specifications

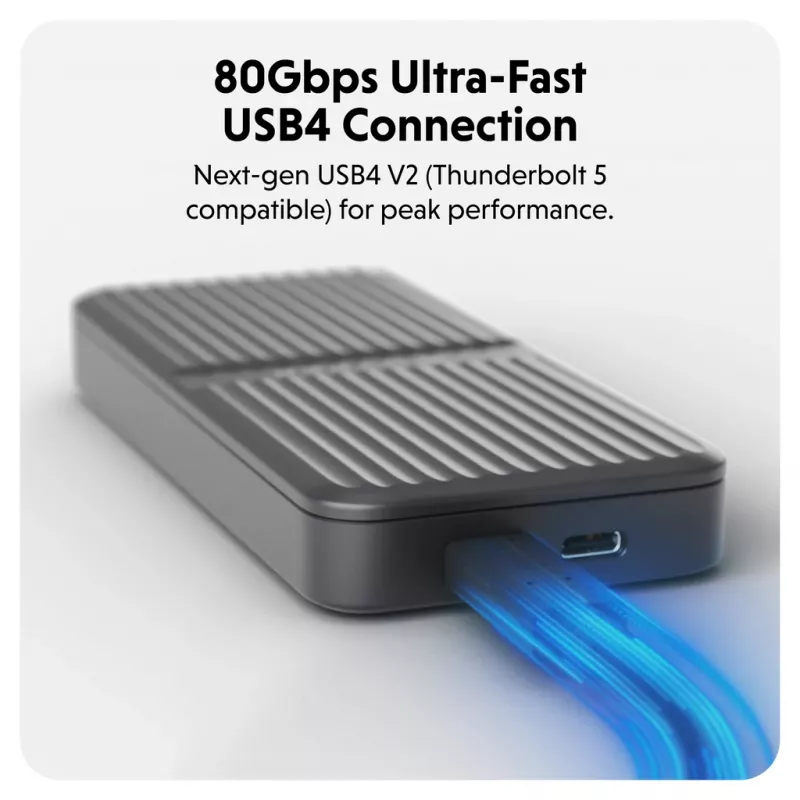

• Interface to host: USB4 v2 (Thunderbolt 5 compatible), USB Type-C connector
• Maximum USB bandwidth: up to 80 Gbps
• Maximum PCIe data throughput: up to 64 Gbps

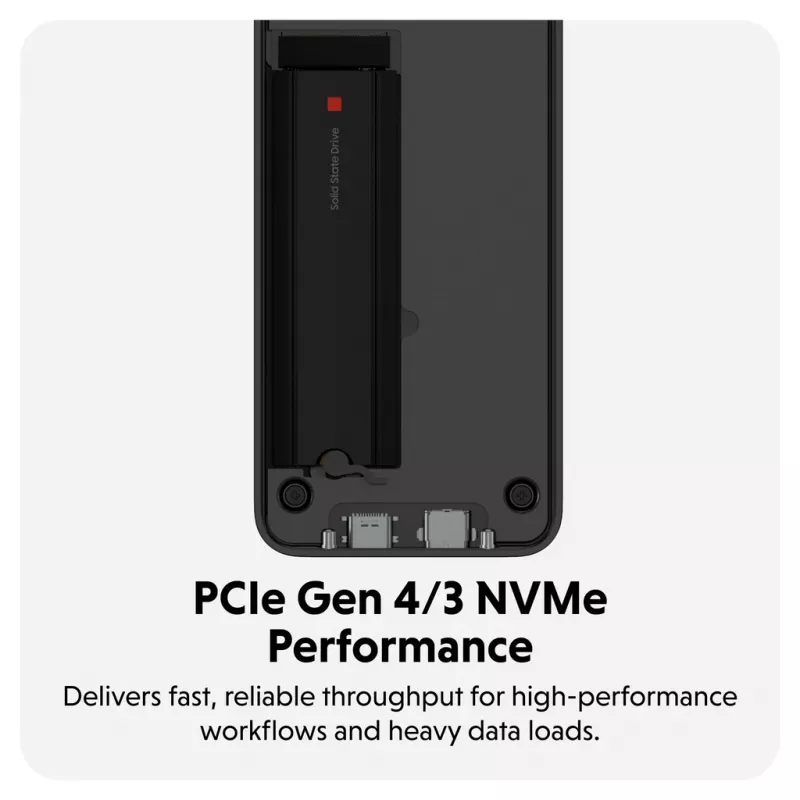

• Supported storage interfaces: PCIe Gen4 and Gen3 NVMe (M.2)

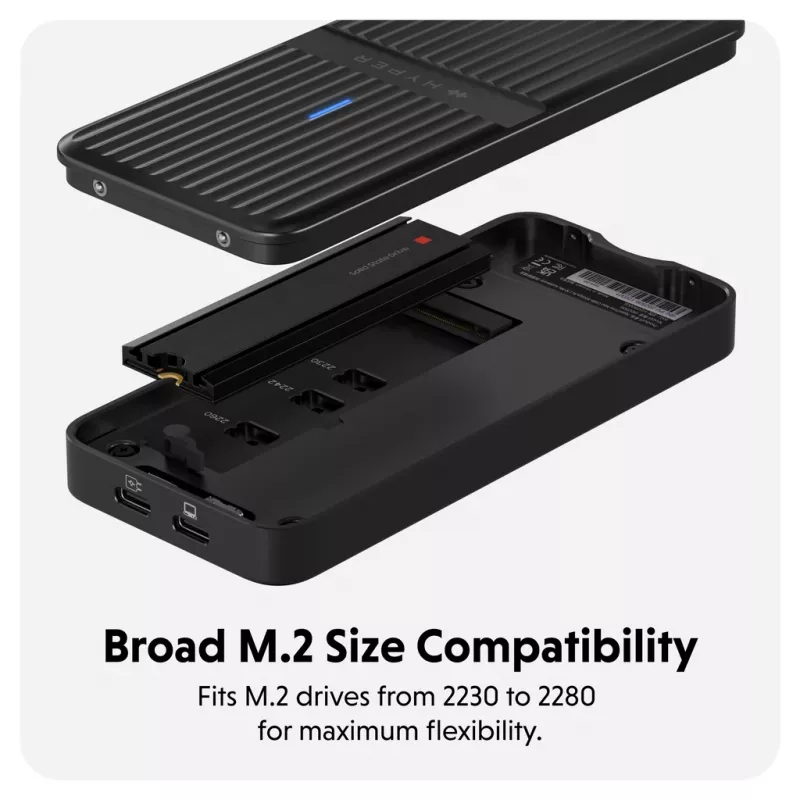

• Supported M.2 sizes: 2230, 2242, 2260, 2280
• Drive bays: single M.2 NVMe

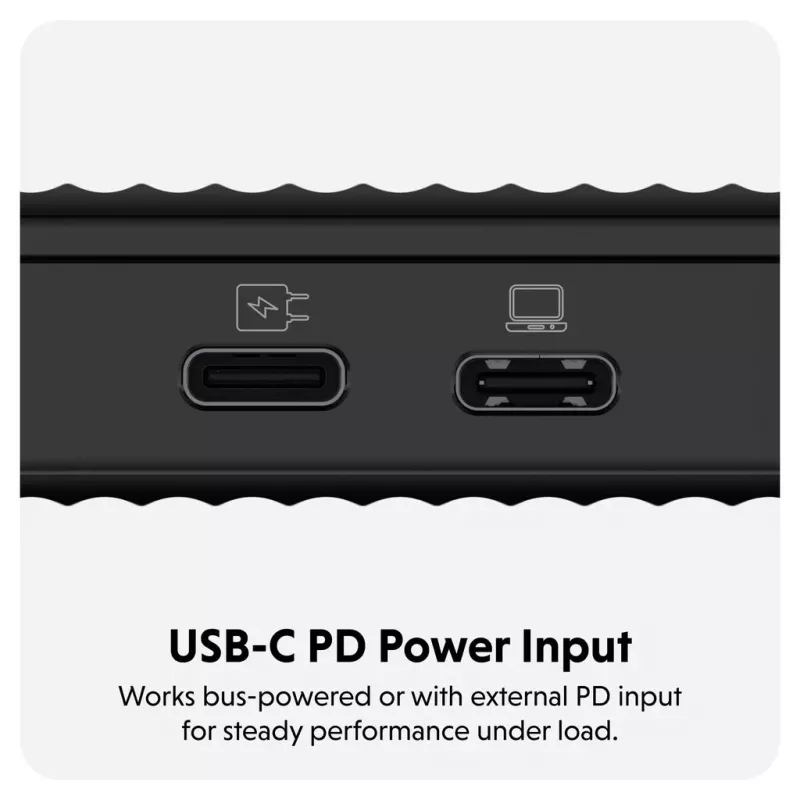

• Power: bus-powered or external USB-C Power Delivery input

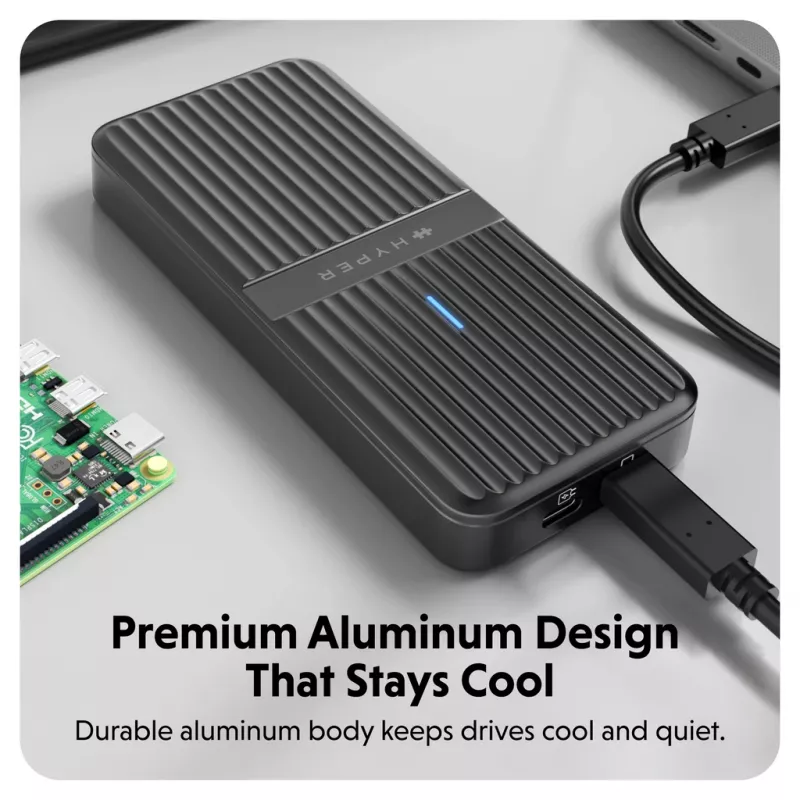

• Material: aluminium with thermal pad for heat dissipation

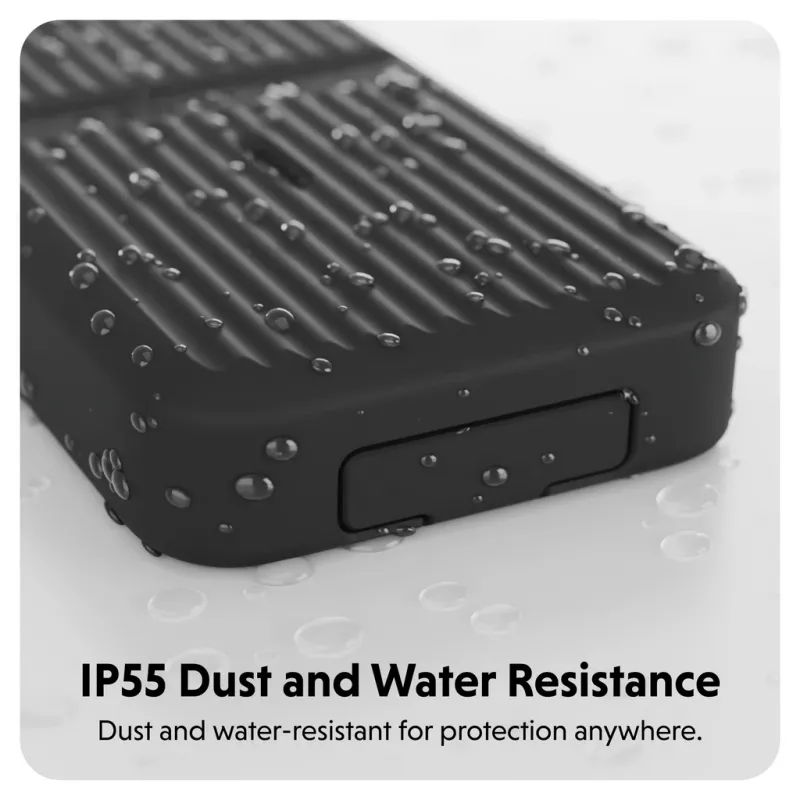

• Ingress protection (with silicone sleeve): IP55 (dust and splash resistant)
• Colour: black
• Weight: 0.3 kg

How to use

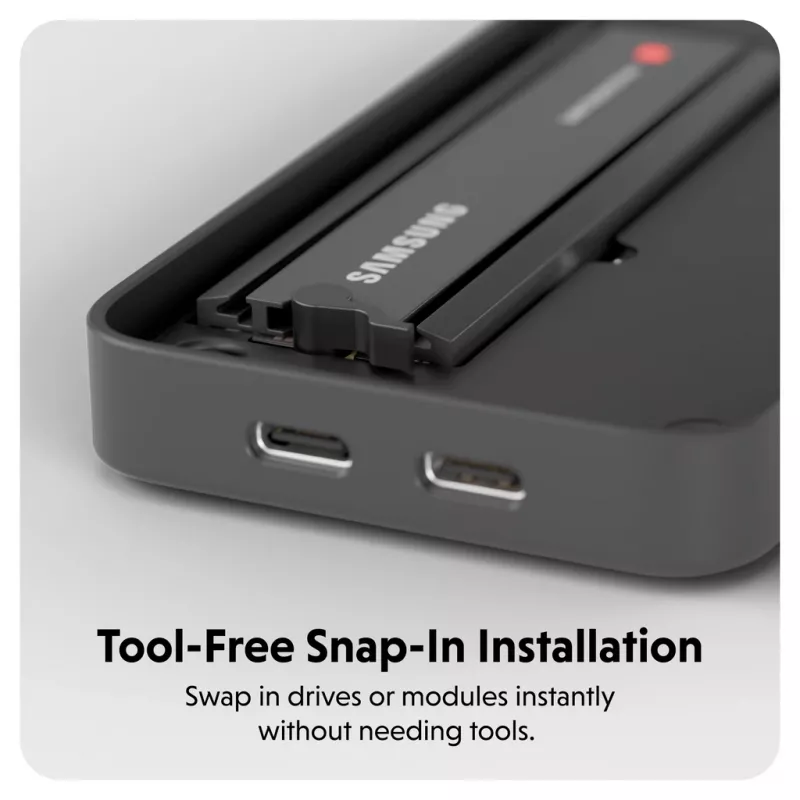

Open the enclosure, insert a compatible M.2 NVMe SSD (2230/2242/2260/2280) into the slot and secure it with the tool-free snap-in mechanism. Optionally fit the silicone sleeve for IP55 protection. Connect the enclosure to a USB4-capable host using a USB-C cable; for sustained high-load operation you can also connect an external USB-C PD adapter. The host should detect the NVMe drive as external storage and no additional tools are required for normal operation.

What to consider before purchase

• Host interface: to achieve maximum speeds, ensure your computer supports USB4 or a compatible Thunderbolt interface
• Drive compatibility: only M.2 NVMe SSDs (PCIe Gen3/Gen4) are supported—SATA M.2 drives are not compatible
• Single-bay design: supports one M.2 NVMe drive or one M.2 PCIe module at a time
• IP55 protection applies when the supplied silicone sleeve is used
• Check thermal needs for sustained heavy workloads; the aluminium body and thermal pad help dissipate heat

Recommendations

For best performance, use a USB4-capable host, a Gen4 NVMe SSD, and connect an external USB-C PD adapter when running sustained AI or heavy transfer workloads. Use the silicone sleeve for travel or on-site protection against dust and splashes.
