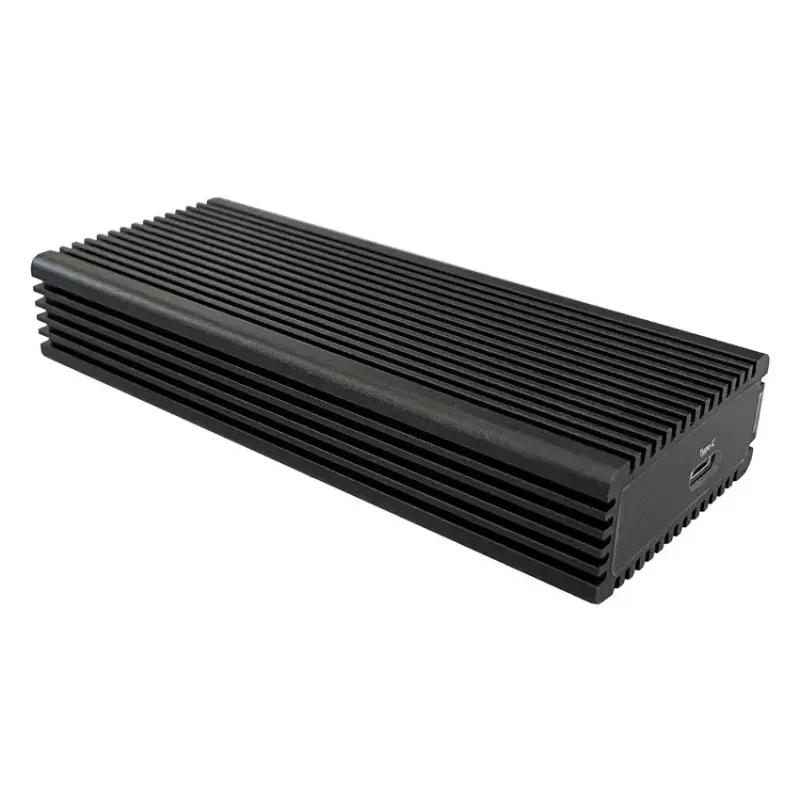

SSD-behuizing LC-Power LC-M2-C-NVME-2X2

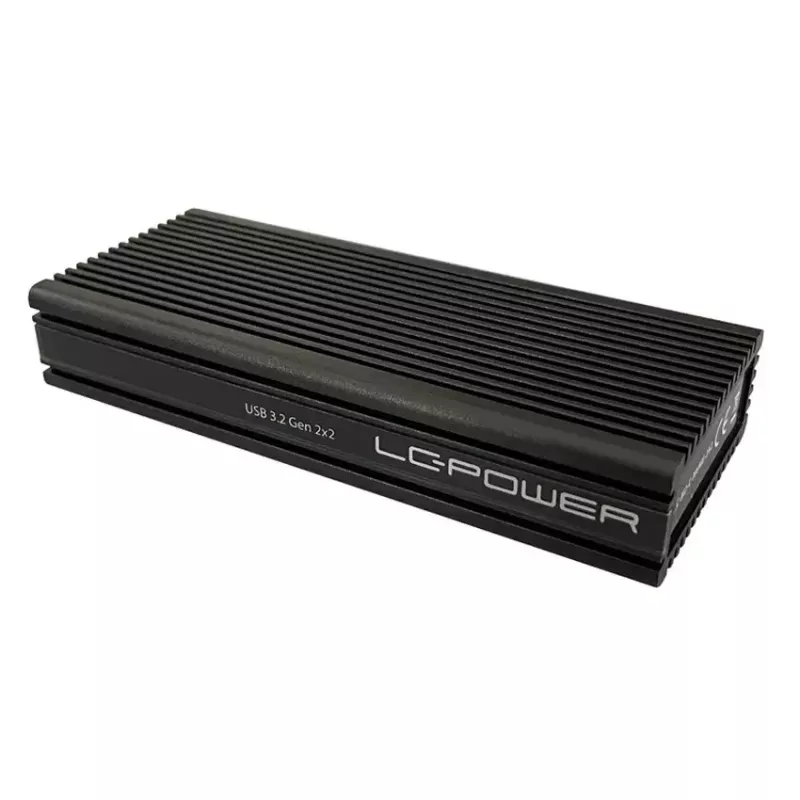

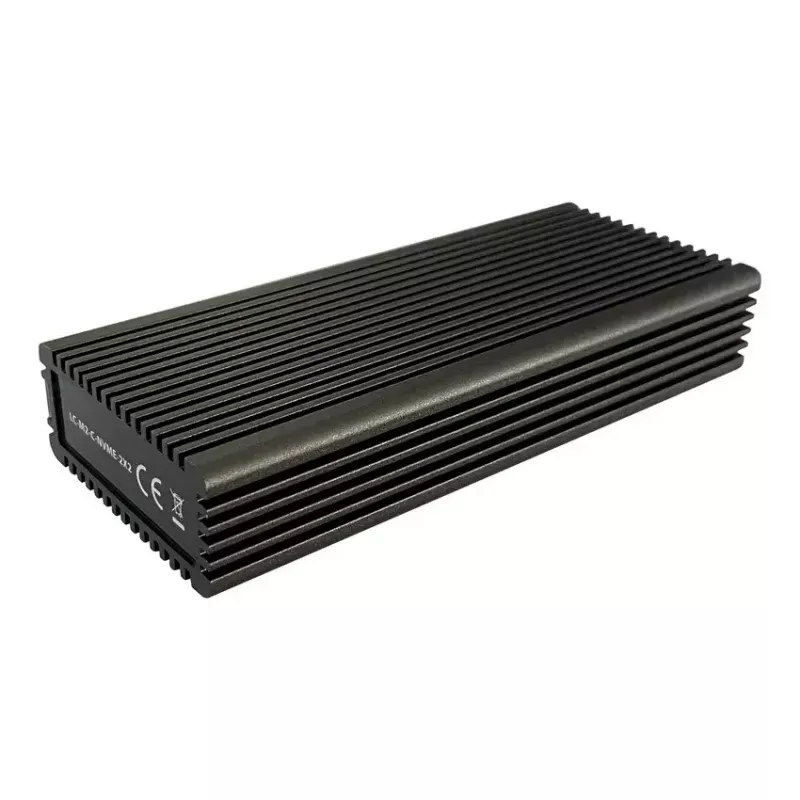

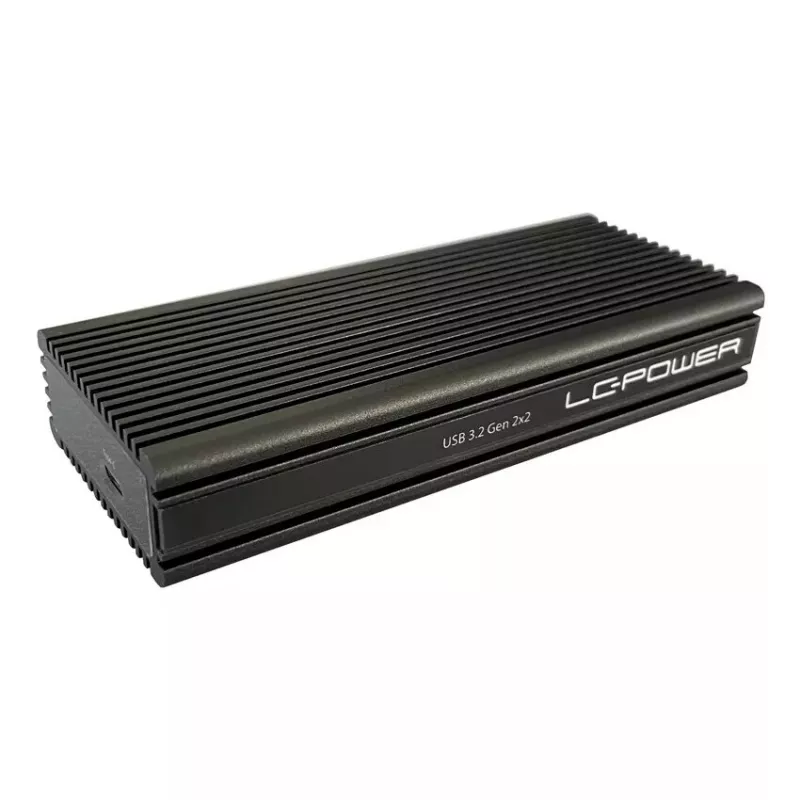

The LC-Power LC-M2-C-NVME-2X2 is a black aluminium external SSD enclosure designed for a single NVMe M.2 SSD. It supports M.2 sizes 80/60/42/30 x 22 mm and accepts M-Key and B+M-Key NVMe drives. The enclosure uses a USB 3.2 Gen 2x2 interface with a USB Type-C connector and offers up to 20 Gbit/s transfer speed for fast external storage and data transfer.

Advantages

This aluminium enclosure provides a compact, durable housing for one NVMe M.2 SSD and supports PCI Express based drives. With USB 3.2 Gen 2x2 and a USB Type-C port it enables high data throughput up to 20 Gbit/s. The product is lightweight and portable, finished in black to match common PC and laptop setups.

Suitable for

• Expanding external storage capacity with an NVMe M.2 SSD
• High-speed data transfer between computers and drives
• Portable backup and file transport for large files
• Using M-Key or B+M-Key NVMe M.2 SSDs in desktop or laptop workflows

Key specifications

• Model: LC-Power LC-M2-C-NVME-2X2
• Supported drives: 1 × NVMe M.2 SSD (M-Key, B+M-Key)
• Supported M.2 sizes: 80 / 60 / 42 / 30 × 22 mm
• Interface: PCI Express (NVMe)

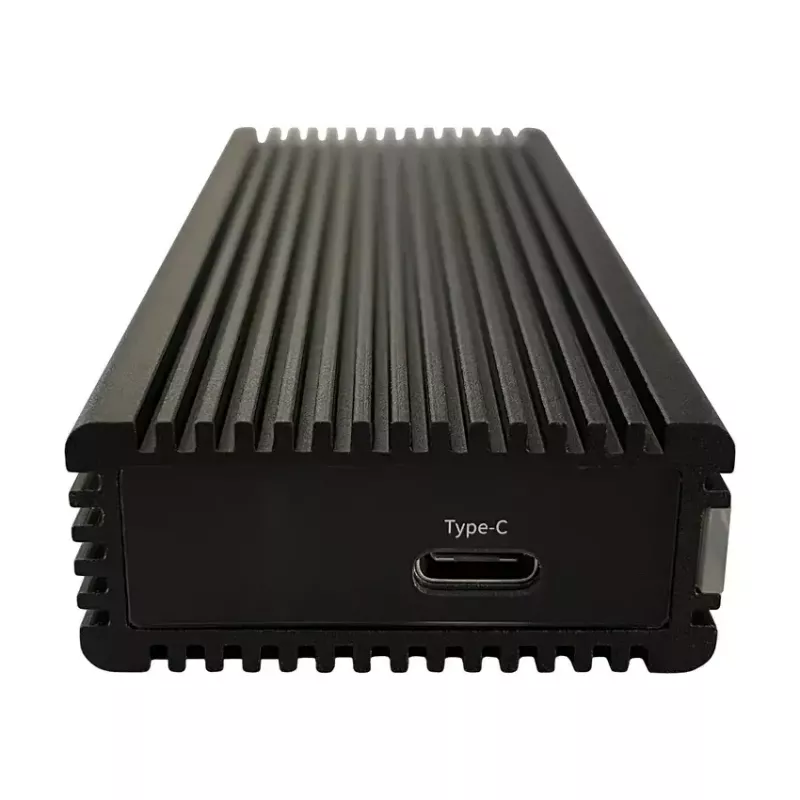

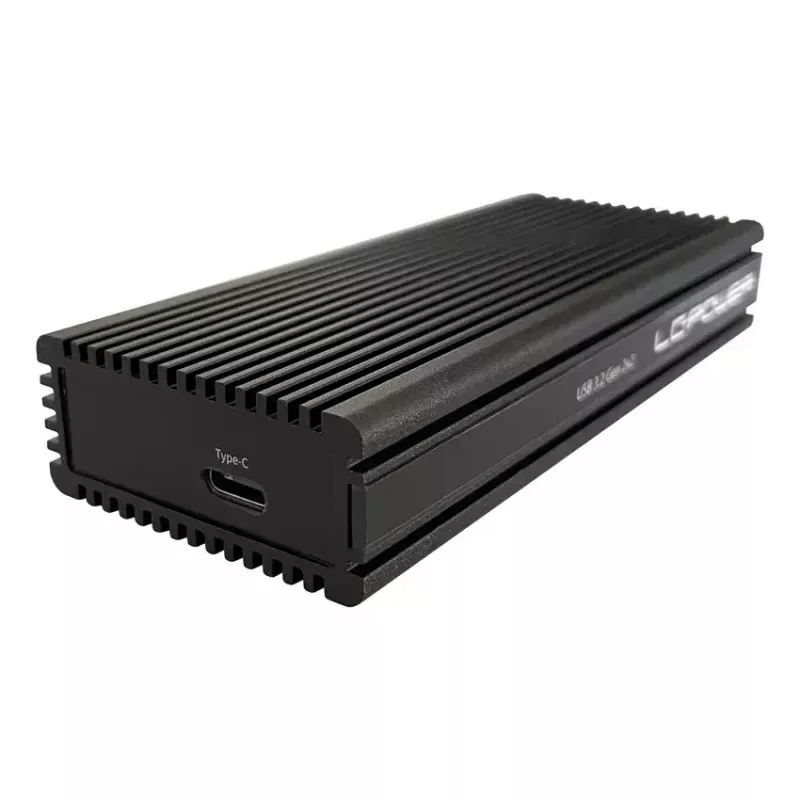

• External interface: USB 3.2 Gen 2x2 (Type-C)
• Max transfer rate: 20 Gbit/s
• Material: Aluminium
• Colour: Black
• Weight: 0.2 kg

How to use

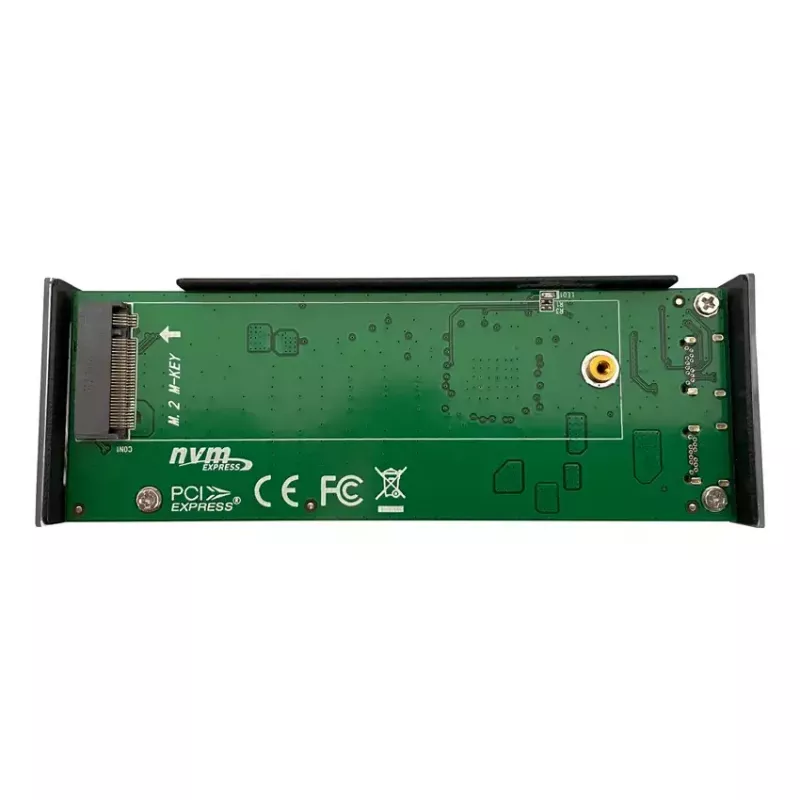

Open the enclosure according to the manufacturer's instructions, insert a compatible NVMe M.2 SSD (M-Key or B+M-Key) of supported length, secure the drive, then close the enclosure. Connect the enclosure to a host device using a USB Type-C cable that supports USB 3.2 Gen 2x2. The host operating system should detect the NVMe drive as external storage; if necessary, initialize or format the drive using the OS disk management tools before first use.

Recommendations

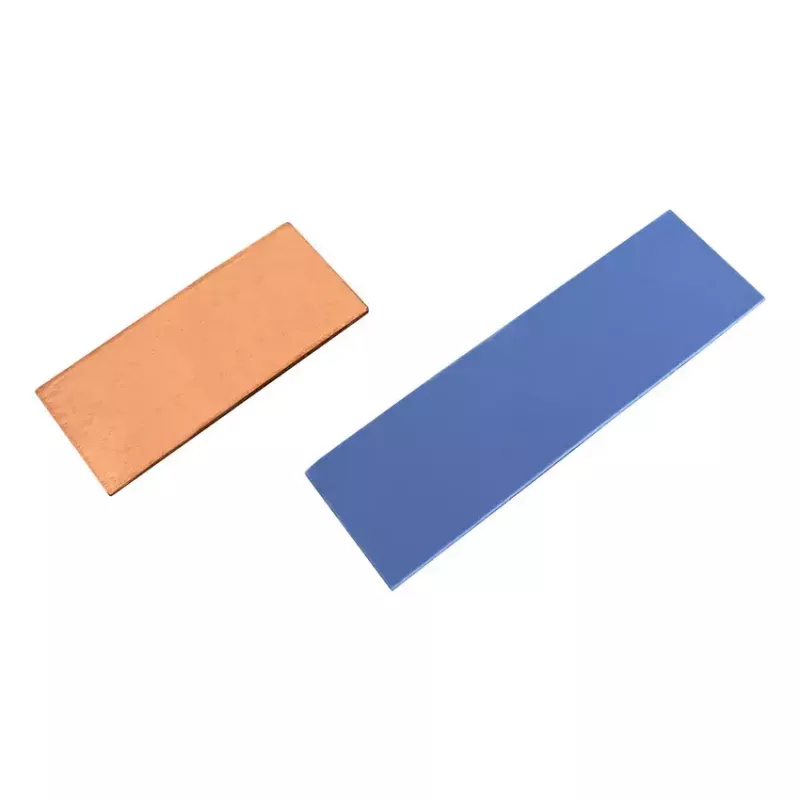

For optimal performance use a USB 3.2 Gen 2x2 capable host port and a high-quality Type-C cable. Ensure the installed NVMe M.2 SSD is compatible with M-Key or B+M-Key form factors and within the supported lengths. Provide adequate ventilation during sustained heavy transfers to avoid thermal throttling.
