SSD-behuizing Manhattan M.2 NVMe SATA USB-C USB-A 10 Gbps Zwart

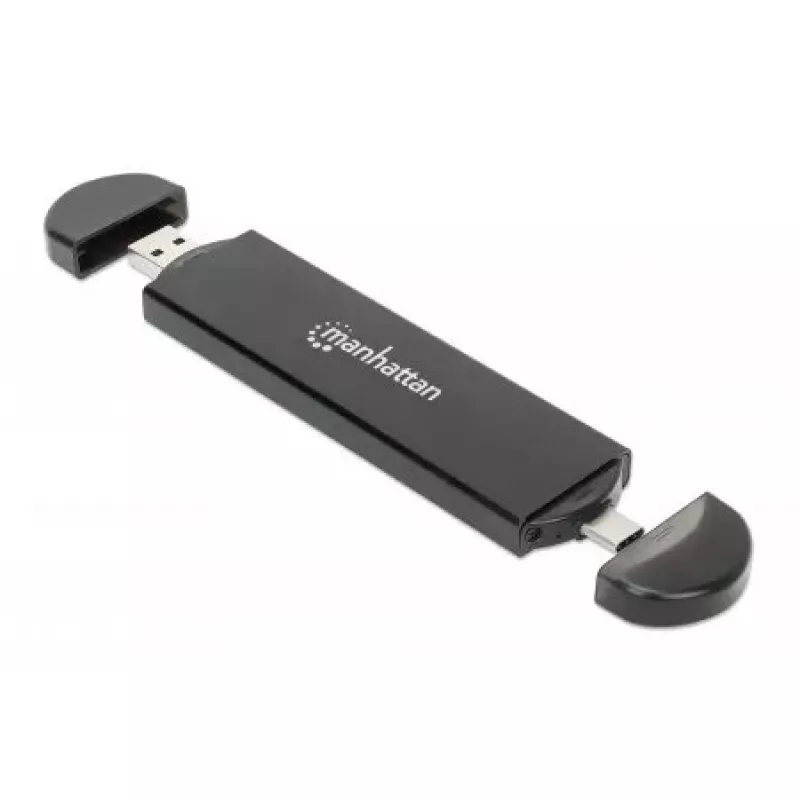

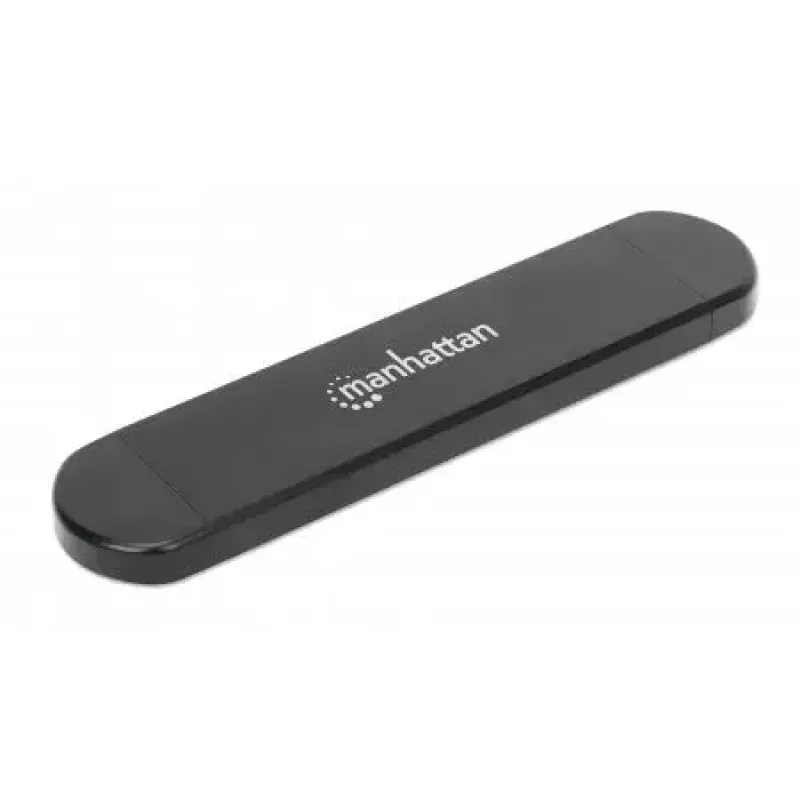

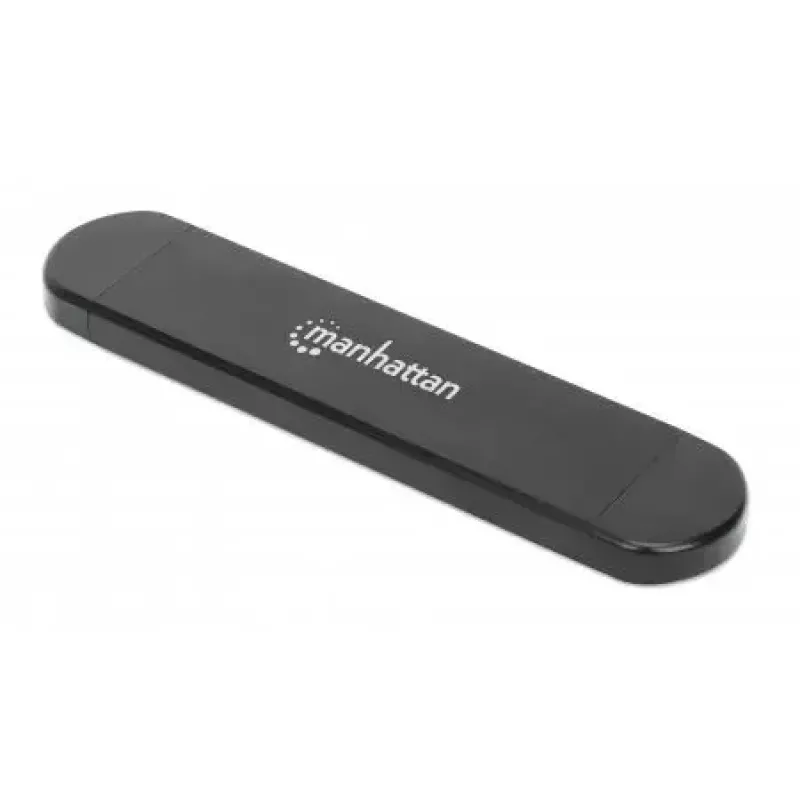

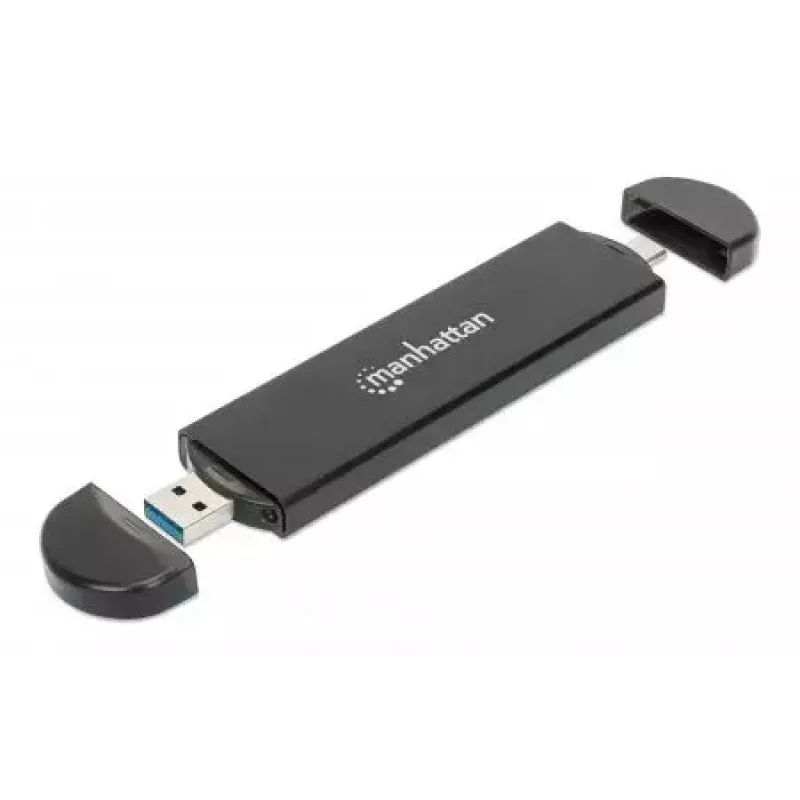

The Manhattan M.2 NVMe SATA SSD enclosure provides a compact external USB drive solution compatible with M Key (NVMe/PCIe) and B+M Key (SATA) M.2 SSDs in sizes 2230, 2242, 2260 and 2280. It supports USB-C and USB-A connections, offers bus-powered plug-and-play operation and a slim aluminium housing for heat dissipation and portability.

Advantages

Supports high-speed data transfers up to 10 Gbps over USB 3.2 Gen 2 when used with NVMe drives and up to 6 Gbps with SATA drives; compatible with a wide range of M.2 SSDs from major manufacturers. The enclosure includes both USB-C and USB-A connectors with backward compatibility to USB 2.0/1.1, is lightweight (about 45 g) and constructed from aluminium to improve thermal performance and durability. Installation is tool-assisted with an included mini screwdriver and requires no external power or additional drivers.

Suitable for

• High-speed file transfers and large media backup
• Expanding storage for laptops, tablets, Chromebooks and desktops
• Data recovery and cloning from M.2 NVMe or SATA SSDs
• Portable carry of frequently used files for work or study

Key specifications

• Supported SSD formats: M.2 2230 / 2242 / 2260 / 2280
• Supported keys: M Key (NVMe/PCIe) and B+M Key (SATA)
• Host interfaces: USB Type-C and USB Type-A (backward compatible with USB 2.0/1.1)
• Maximum transfer rate: up to 10 Gbps (NVMe, USB 3.2 Gen 2); up to 6 Gbps (SATA)
• Material: aluminium
• Weight: approx. 0.045 kg
• Colour: black

How to use

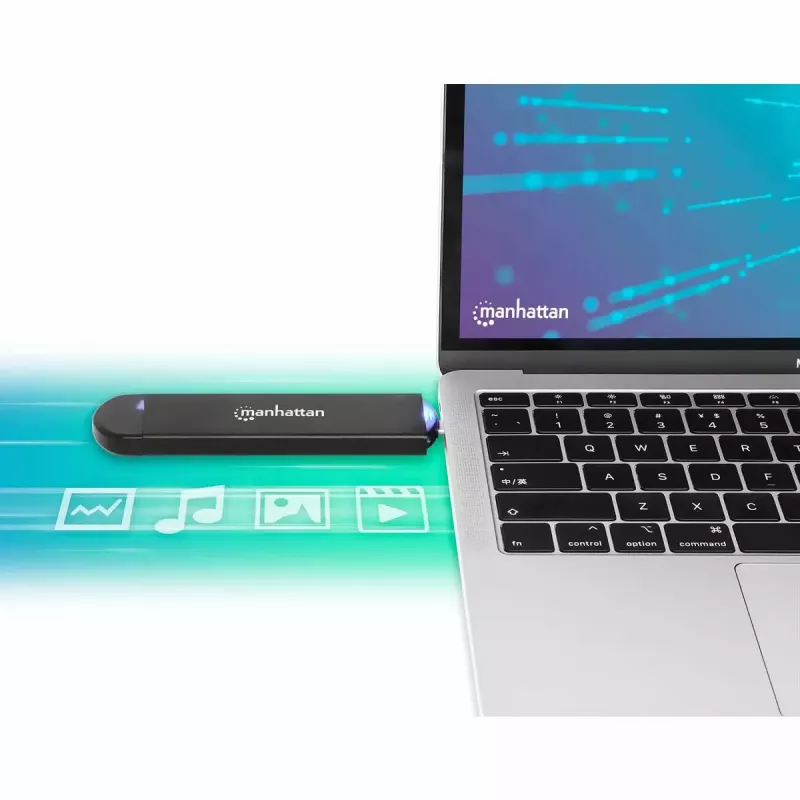

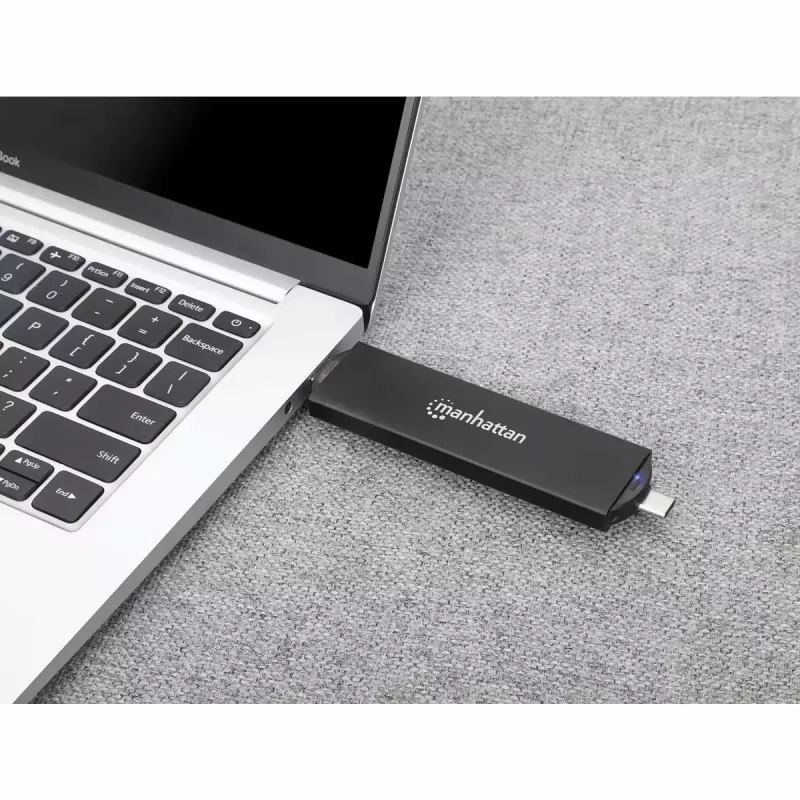

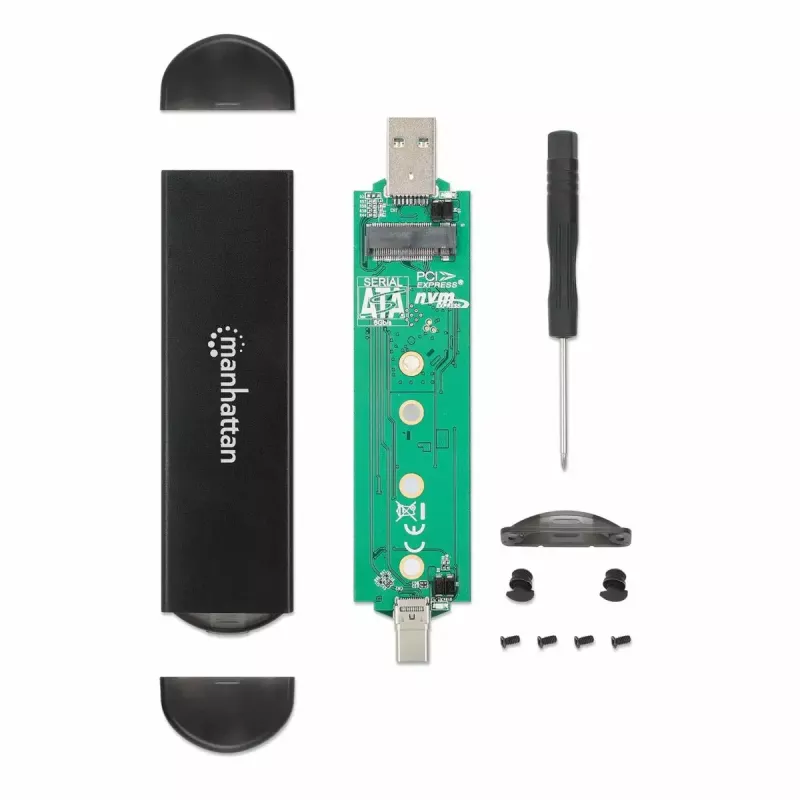

Open the enclosure using the included mini screwdriver, insert the M.2 SSD aligned with the correct M or B+M key and secure it with the supplied screw. Close the enclosure and connect it directly to a computer using the built-in USB-C or USB-A plug. The device is bus-powered and typically recognized automatically by modern operating systems; no external power supply or drivers are required for standard plug-and-play operation.

Recommendations

For best performance with NVMe drives, connect the enclosure to a USB 3.2 Gen 2 or Thunderbolt 3 port. Allow airflow around the aluminium enclosure during heavy transfers to assist heat dissipation and avoid prolonged operation at maximum sustained loads.
