STASIŃSKI SP. Z O.O. halfopen kabelbinderklem wit U-18 (verpakking van 100 stuks)

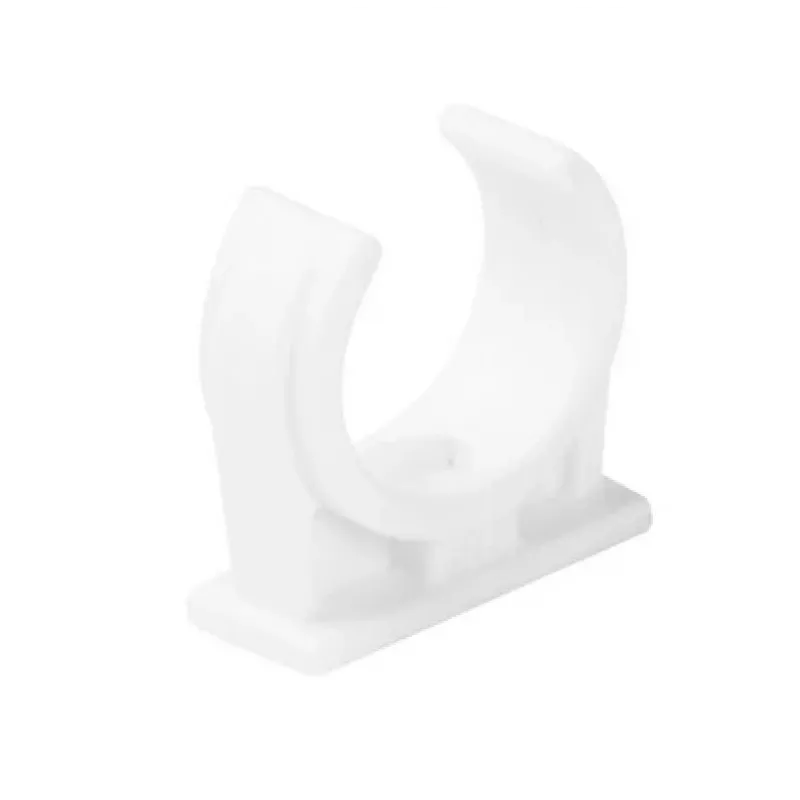

The STASIŃSKI SP. Z O.O. U-18 Semi-Open Electrical Conduit Clamp is a high-quality, durable solution for securing rigid and flexible electrical conduits and pipes with an 18 mm outer diameter. Made from polypropylene (PP), this clamp offers excellent UV resistance and self-extinguishing flame retardancy, making it suitable for both indoor and outdoor installations. The pack contains 100 pieces, providing a cost-effective solution for professional electricians and installers.

Advantages

• Semi-open U-type design allows for quick and easy installation without removing the conduit.
• Made from durable polypropylene (PP) with UV resistance and self-extinguishing properties.
• Suitable for a wide operating temperature range from -25°C to +60°C.
• Complies with PN-EN 61386-20 and RoHS standards.
• Pack of 100 pieces ensures ample supply for large projects.

Suitable for

• Securing electrical conduits and pipes in residential, commercial, and industrial settings.
• Indoor and outdoor installations where UV resistance and flame retardancy are required.
• Mounting conduits on walls, ceilings, or other surfaces using screws (not included).

Key specifications

• Product Type: Electrical Conduit Clamp
• Clamp Design: Semi-open (U-type)
• Material: Polypropylene (PP)
• Colour: White
• Nominal Pipe Diameter: 18 mm
• Quantity per Pack: 100 pieces
• Inner Diameter (approx.): 18.5 mm
• Outer Dimensions (single clamp, approx.): 28 mm (L) x 25 mm (W) x 15 mm (H)
• Weight (single clamp, approx.): 2.5 g
• Operating Temperature Range: -25°C to +60°C
• Mounting Method: Screw-fixed (screw not included)
• Compliance: PN-EN 61386-20, RoHS

Recommendations

For optimal performance, use screws appropriate for the mounting surface. Ensure the conduit is properly aligned before tightening the clamp. Suitable for use with pipes having an 18 mm outer diameter.
