Striebel & John opbouw meterkast AP DA37CG driepunts A37 2Z1V5A2

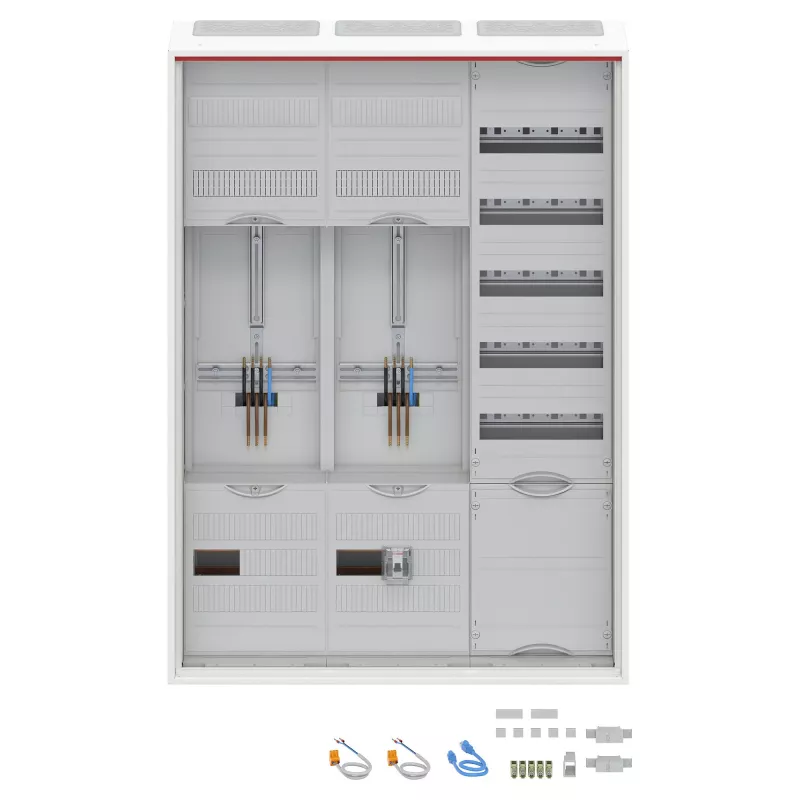

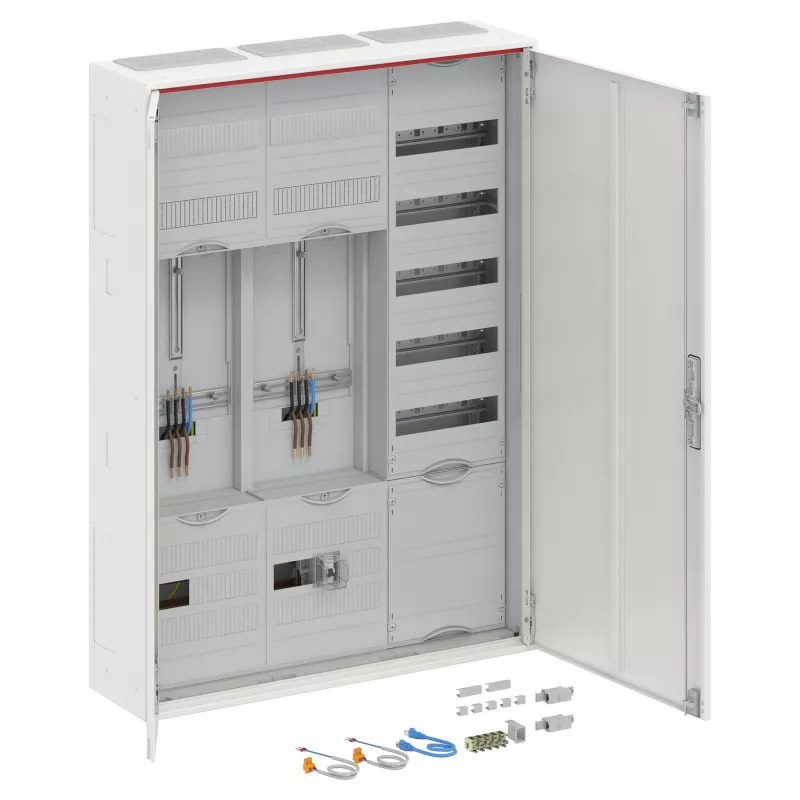

The Striebel & John Komplettschrank AP DA37CGDreipunkt A37 2Z1V5A2 is a high-quality surface-mounted meter cabinet designed for professional electrical installations. It provides a complete enclosure for two three-phase meters and one distribution field, ensuring safe and organized power distribution in residential, commercial, or industrial settings.

Advantages

This cabinet offers robust construction with a powder-coated steel sheet body in traffic white (RAL 9016), providing durability and a clean appearance. The three-point locking mechanism ensures secure access, while the IP44 protection class guards against dust and splashing water. The integrated wiring space on the right side simplifies cable management, and the 5-pole busbar system (L1, L2, L3, N, PE) supports up to 63 A rated current.

Suitable for

• Installation of two three-phase meters in surface-mounted applications
• Distribution boards requiring one field with up to 60 module units (5 rows x 12 PLE)
• Environments where IP44 protection is needed, such as basements, garages, or utility rooms

Key specifications

• Product Type: Meter Cabinet (Komplettschrank)
• Mounting Type: Surface-mounted (Aufputz)
• Number of Meter Places: 2 (for three-phase meters)
• Number of Distribution Fields: 1
• Module Units (PLE) per Distribution Field: 60 (5 rows x 12 PLE)
• Locking Mechanism: Three-point lock
• Protection Class (IP): IP44
• Material: Steel sheet, powder-coated
• Color: Traffic white (RAL 9016)
• Door Type: Opaque steel door
• Door Hinge Side: Right
• Rated Current (In): Up to 63 A
• Rated Voltage (Un): 230/400 V AC
• Busbar System: 5-pole (L1, L2, L3, N, PE)

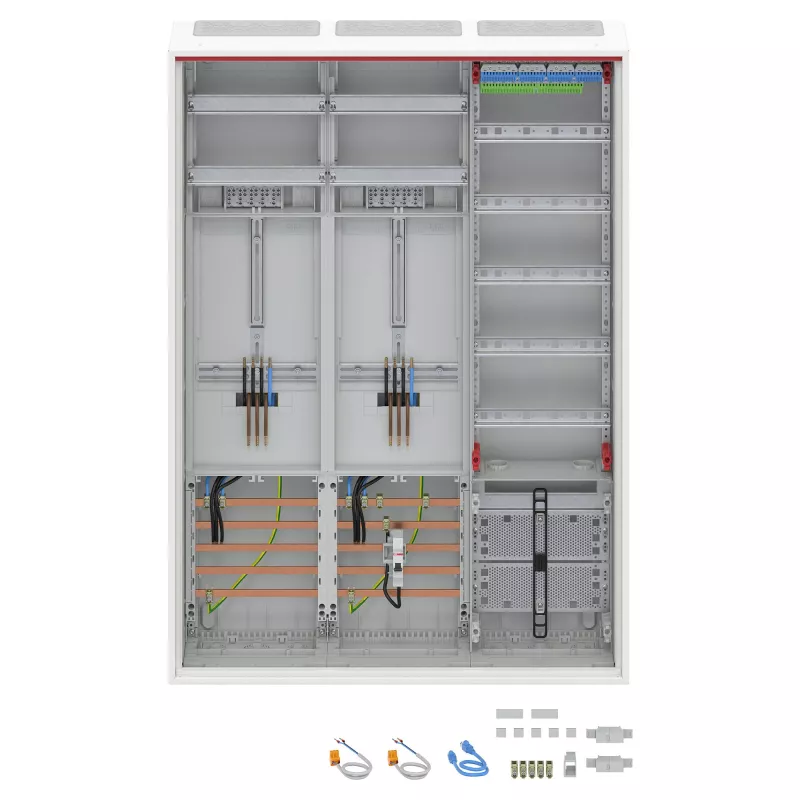

• Wiring Space: Integrated, right side
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

For optimal installation, ensure that the cabinet is mounted on a flat, stable surface and that all electrical connections comply with local regulations. Use appropriate cable glands for IP44 sealing. This cabinet is ideal for new constructions or retrofitting existing buildings where reliable meter and distribution integration is required.
