Stroomverdeler Bachmann 800.2336

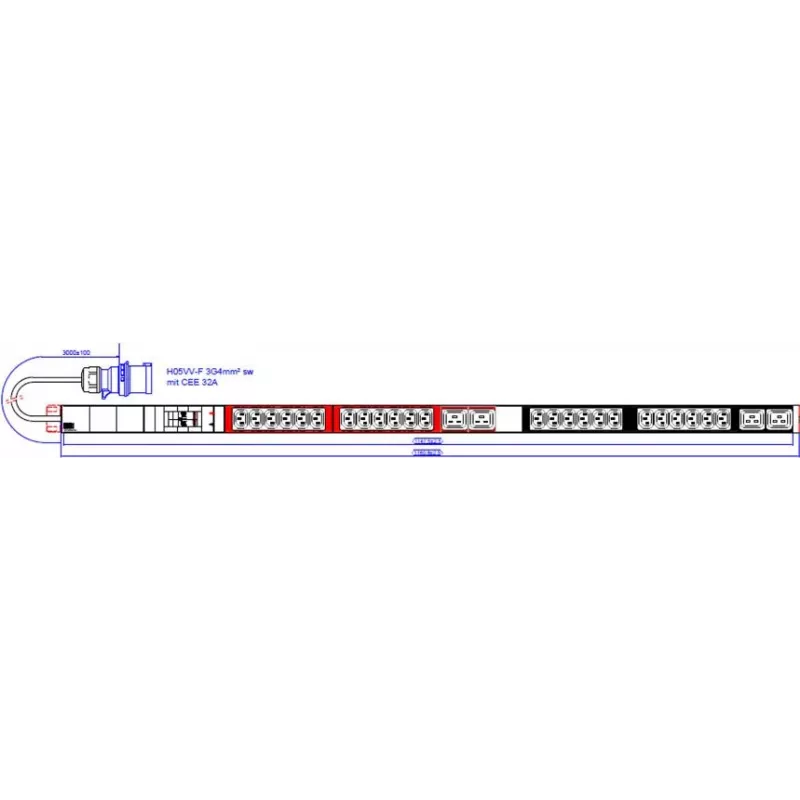

The Bachmann 800.2336 is a 1U power distribution unit designed for efficient and future-proof power distribution in data centres and server racks. It features a compact aluminium profile with dimensions 1119 mm (width) x 44 mm (depth) x 47 mm (height) and a 3 m power cable, enabling neat installation and preservation of space for cabling and rack ventilation.

Advantages

The robust aluminium construction offers durability and a slim form factor that saves space in dense rack installations. With 28 AC outlets (combination of C13 and C19 sockets) and a maximum current rating of 32 A at 230 V / 50 Hz, the unit supports high-density power distribution while maintaining reliable performance.

Suitable for

• Server racks in data centres
• Network cabinets and telecommunication closets
• IT rooms requiring concentrated power distribution

Key specifications

• Brand: Bachmann
• Model / MPN: 800.2336
• EAN: 4057298006937
• Form factor: 1U
• Outlets: 28 (C13 and C19)
• Maximum current: 32 A
• Nominal input voltage: 230 V
• Frequency: 50 Hz
• Cable length: 3 m
• Dimensions (W x D x H): 1119 mm x 44 mm x 47 mm

How to use

Install the Bachmann 800.2336 into a standard 19" rack occupying one U of space. Route the integrated 3 m power cable to a compatible mains supply and connect IT equipment using the C13 and C19 outlets as required. Ensure the total connected load does not exceed the unit's 32 A rating and maintain proper airflow in the rack to support ventilation and cooling.

Recommendations

Position the unit to leave room for data cabling and unobstructed airflow; verify compatibility of connected equipment with C13/C19 outlets and confirm rack power distribution does not surpass 32 A to avoid overload.
