Stroomverlengingsaccessoire Brennenstuhl 1081320010 grijs kunststof

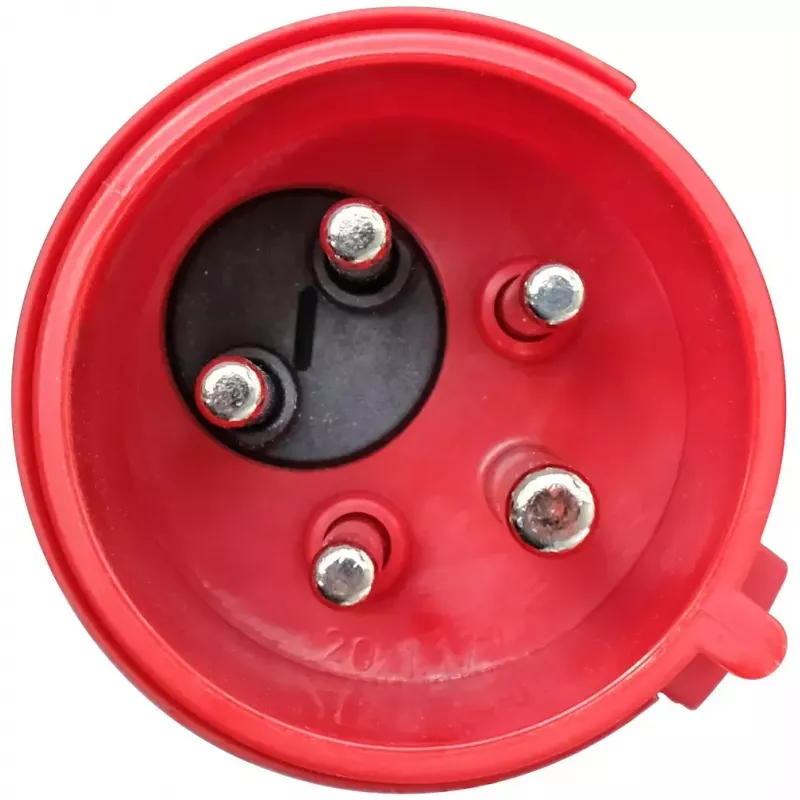

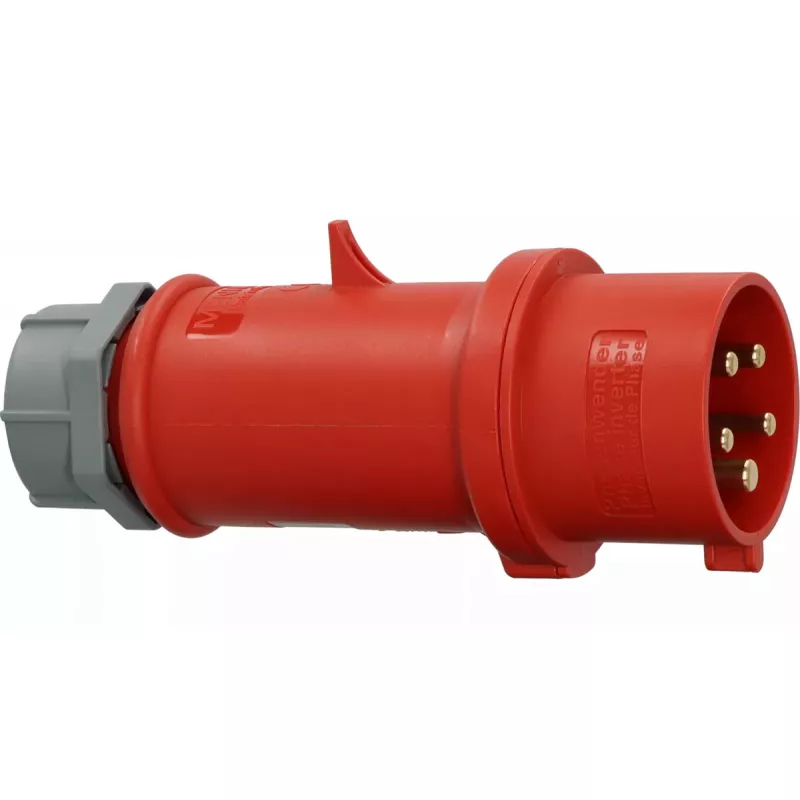

The 5-pole CEE Phase Inverter 32A Brennenstuhl (model 1081320010) is a compact power extension accessory designed for trade and construction site use. With an IP44 protection rating, the grey and red plastic housing allows safe operation indoors and outdoors. The device provides 400V/32A power and enables manual phase-sequence change by turning two plug contacts, making it suitable for adapting installations and temporary power setups.

Advantages

The phase inverter features a high-quality, impact-resistant plastic housing and a compact form factor (65 mm width, 185 mm depth, 75 mm height). It supports 400V/32A connections and the IP44 protection class ensures splash and dust protection for flexible indoor and outdoor use. The manually adjustable phase sequence allows quick adaptation of phase connections without modifying fixed wiring.

Suitable for

• Temporary power distribution on construction sites
• Electrical work and maintenance in trade environments
• Adapting phase sequence for portable equipment and generators
• Outdoor and indoor temporary installations requiring IP44 protection

Key specifications

• Brand: Brennenstuhl
• Model / MPN: 1081320010
• EAN: 4007123667307
• Rated voltage/current: 400V / 32A
• Number of poles: 5
• Protection class: IP44
• Dimensions (W×D×H): 65 × 185 × 75 mm
• Product colour: Grey, Red
• Weight: 0.26 kg

How to use

Install the phase inverter in line with local electrical regulations. Connect the device to the appropriate 5-pole CEE socket and attach the load using matched 400V/32A connectors. To change the phase sequence, turn the two designated plug contacts until the desired sequence is achieved. Ensure all connections are secure before energising and do not use the device if the housing is visibly damaged.

Recommendations

Use the phase inverter for temporary or portable installations only. Verify compatibility with equipment and circuit protection before use. Store the device in a dry place when not in use and inspect seals and contacts regularly to maintain IP44 protection.
