Supermicro interne SAS-kabel 36 PIN 4i Mini MultiLane naar 36 PIN 4i Mini MultiLane 70 cm

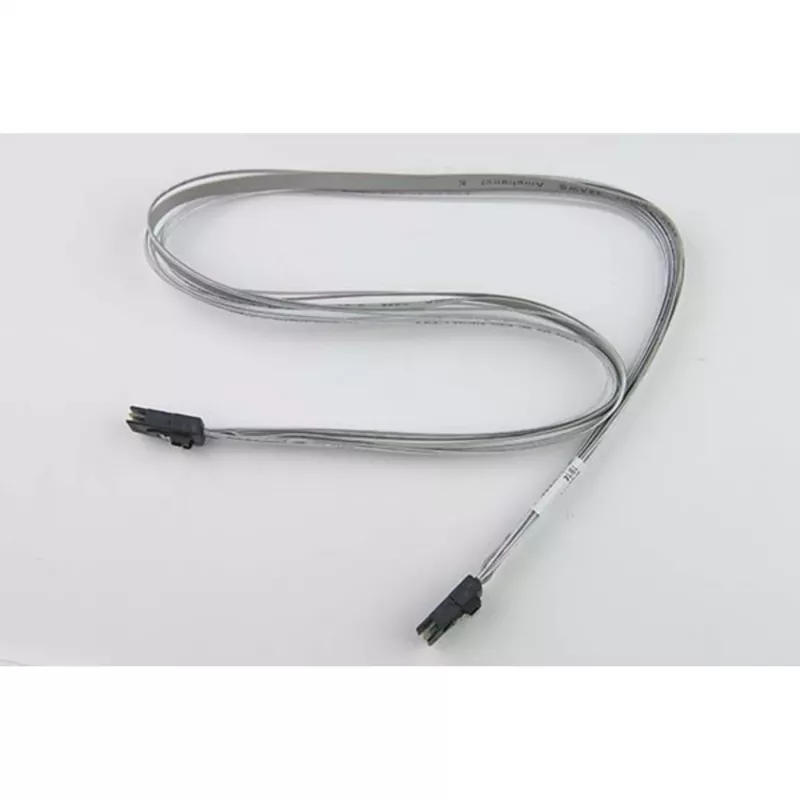

The Supermicro CBL-0281L-01 is a high-quality internal SAS cable designed for reliable data transmission within servers and workstations. This cable features 36-pin 4i Mini MultiLane (SFF-8087) connectors on both ends, providing a direct connection between SAS controllers, backplanes, and storage devices. With a length of 70 cm (0.7 m), it offers flexibility for internal routing while maintaining signal integrity.

Advantages

This cable supports data transfer rates up to 6 Gbps per lane, with a total bandwidth of 24 Gbps across four lanes. It is backward compatible with SAS 1.0 (3 Gbps) and forward compatible with SAS 2.0 (6 Gbps), ensuring compatibility with a wide range of SAS and SATA devices. The copper conductors with 100 Ohm impedance and shielding provide excellent signal quality and noise reduction.

Suitable for

• Connecting SAS/SATA HDDs and SSDs to RAID controllers or backplanes
• Internal server and workstation storage setups
• Supermicro and other compatible systems with SFF-8087 ports

Key specifications

• Cable Type: Internal SAS Cable
• Connector Type (End 1): Mini-SAS SFF-8087 (36-pin 4i Mini MultiLane)
• Connector Type (End 2): Mini-SAS SFF-8087 (36-pin 4i Mini MultiLane)
• Connector Gender: Male (both ends)
• Cable Length: 70 cm (0.7 m)
• Number of Lanes: 4
• Data Transfer Rate: Up to 6 Gbps per lane (24 Gbps total)
• Impedance: 100 Ohm
• Conductor Material: Copper
• Shielding: Yes
• Colour: Black
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that your controller and backplane support SFF-8087 connectors. This cable is ideal for high-density storage environments where reliable internal connections are critical.
