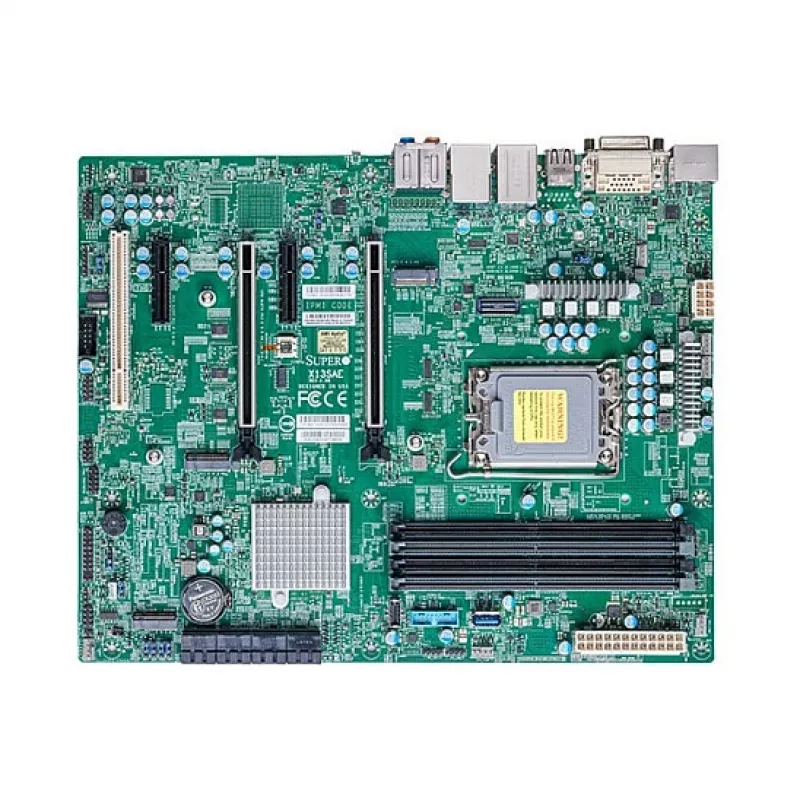

Supermicro X13SAE moederbord - ATX - LGA1700 socket - Intel W680 chipset - DDR5 - 2,5 gigabit LAN - retail pack

The Supermicro X13SAE is a high-performance ATX motherboard designed for Intel 12th/13th/14th Gen Core processors and Xeon E-2400 series. Built on the Intel W680 chipset, it offers robust connectivity, support for DDR5 memory, and advanced storage options, making it ideal for demanding workstations and enterprise applications.

Advantages

Supports the latest Intel processors with LGA1700 socket, providing exceptional computing power. Features dual LAN ports including 2.5 Gigabit Ethernet for fast network transfers. Equipped with PCIe 5.0 for next-gen graphics and storage, and multiple M.2 NVMe slots for high-speed SSDs.

Suitable for

• Professional workstations for content creation, CAD, and data analysis
• Small to medium business servers requiring reliability and performance
• Enthusiast builds needing advanced connectivity and expansion

Key specifications

• Form Factor: ATX
• CPU Socket: LGA1700
• Chipset: Intel W680
• Memory: 4x DDR5 DIMM slots, up to 128GB, ECC/non-ECC
• PCIe Slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x4
• M.2 Slots: 3x M.2 NVMe (PCIe 4.0 x4)
• SATA Ports: 8x SATA 6Gb/s
• LAN: 1x 2.5 Gigabit Ethernet (Intel I225-LM), 1x Gigabit Ethernet (Intel I210-AT)
• Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A
• Video Outputs: 1x HDMI 2.1, 1x DisplayPort 1.4a (requires CPU with integrated graphics)
• Audio: 7.1-Channel HD Audio
• Power: 1x 24-pin ATX, 1x 8-pin EPS 12V

Recommendations

For optimal performance, pair this motherboard with an Intel 13th or 14th Gen processor and DDR5 ECC memory. Ensure your power supply meets the requirements for high-end components.
