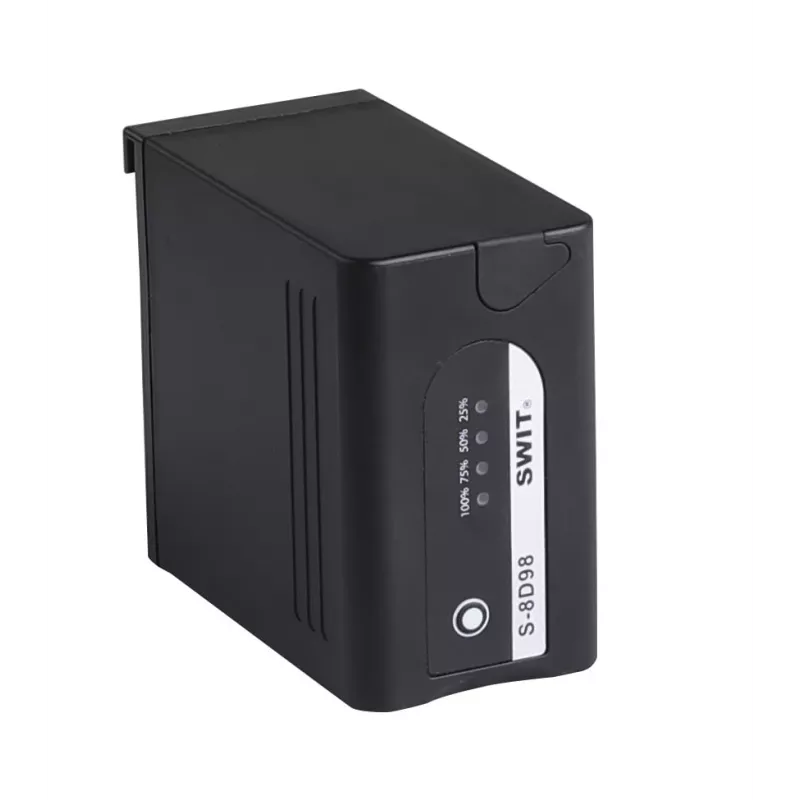

SWIT S-8D98 9800mAh 7.2V lithium-ion accu voor Panasonic

The SWIT S-8D98 is a high-capacity 9800mAh Lithium-Ion battery designed as a direct replacement for Panasonic CGA-D54S / VW-VBD58. With a 7.2V output and 70Wh energy, it provides reliable power for professional video cameras and equipment. The battery features a D-Tap output for powering accessories, a 4-level LED power indicator, and multiple protection circuits for safe operation.

Advantages

High 9800mAh capacity ensures extended shooting time. D-Tap output allows simultaneous powering of accessories like monitors or lights. Robust protection against over-charge, over-discharge, over-current, and over-temperature ensures safety and longevity. The Panasonic DV battery mount offers secure attachment and compatibility.

Suitable for

• Panasonic professional video cameras using CGA-D54S or VW-VBD58 batteries
• Broadcast and cinema applications requiring reliable power
• Field production where extended runtime is critical
• Powering accessories via D-Tap output

Key specifications

• Battery Type: Lithium-Ion (Li-Ion)
• Voltage: 7.2 V
• Capacity: 9800 mAh
• Energy: 70 Wh
• Output Port: 1x D-Tap (DC Output)
• D-Tap Output Voltage: 7.2V
• D-Tap Max Output Current: 5A
• Power Indicator: 4-level LED
• Mount Type: Panasonic DV Battery Mount
• Protections: Over-charge, Over-discharge, Over-current, Over-temperature
• Operating Temperature (Discharge): -20°C to 50°C
• Operating Temperature (Charge): 0°C to 40°C
• Rechargeable: Yes
• Colour: Black

Recommendations

For best performance, use with compatible Panasonic cameras and chargers. The D-Tap output is ideal for powering LED lights or wireless transmitters. Always store in a cool, dry place and avoid deep discharge.
