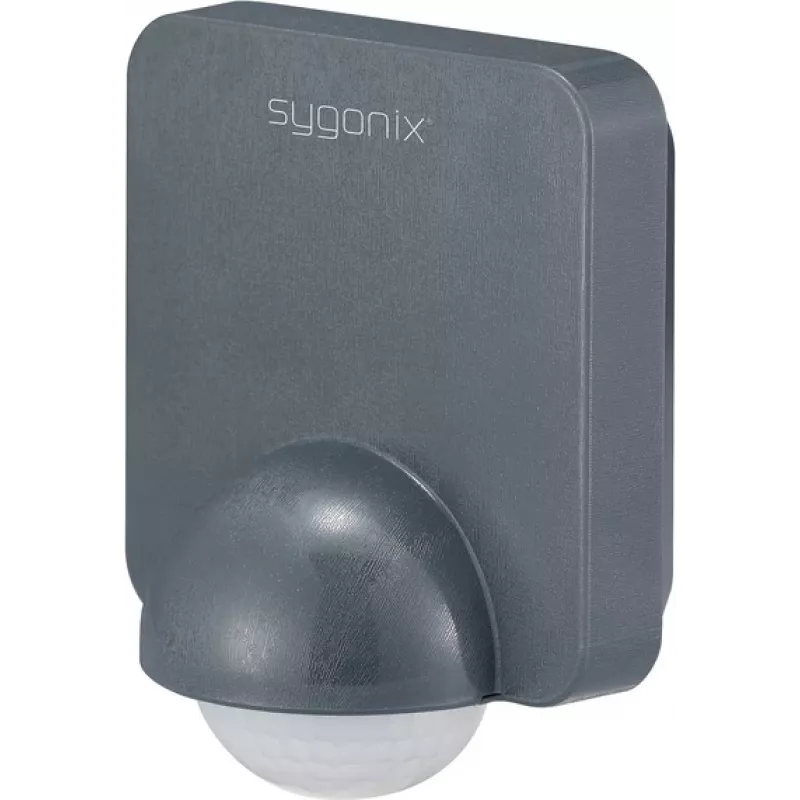

Sygonix SY-5836536 wand-PIR-bewegingsmelder 360° relais donkergrijs IP54

Wall-mounted PIR motion detector with 360° detection angle and relay output for automatic lighting control. Detects movement up to 12 m and switches loads up to 2000 W.

Advantages

Adjustable twilight threshold (3–2000 lux) and time delay (10 s–15 min) allow customised automation. Relay output supports resistive loads up to 2000 W and LED/fluorescent loads up to 1000 W. IP54-rated housing withstands dust and water splashes, suitable for indoor and sheltered outdoor use.

Suitable for

• Automatic lighting in hallways, stairwells, and entrances
• Energy-saving control in offices and commercial spaces
• Outdoor areas with protection from direct rain

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: up to 12 m
• Mounting type: Wall
• Output type: Relay
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2000 W
• Max. switching capacity (LED/fluorescent): 1000 W
• Max. switching current: 10 A
• Twilight setting: 3–2000 lux (adjustable)
• Time setting: 10 s–15 min (adjustable)
• Protection class: IP54
• Colour: Dark Grey
• Installation height: 1.8–2.5 m
• Operating temperature: -20 °C to +40 °C
• Standby power consumption: < 0.5 W
• Housing material: Polycarbonate

Recommendations

Install at 1.8–2.5 m height for optimal coverage. Adjust lux and time settings to match the environment and avoid false triggers.
