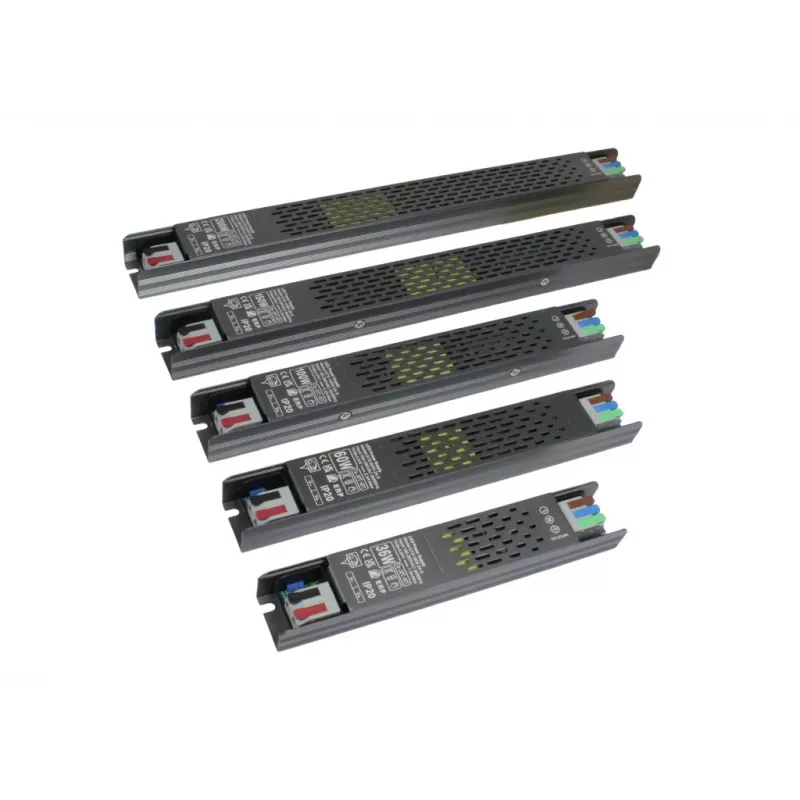

SYNERGY21 24V 150W slim line LED-voeding (S21-LED-026126)

150W constant voltage LED power supply with 24V DC output and 6.25A current, engineered for reliable performance in a slim aluminum housing.

Overview

The SYNERGY21 S21-LED-026126 is a 150W constant voltage LED power supply delivering a stable 24V DC output. It operates on 200-240V AC input at 50/60 Hz and provides 6.25A output current. The slim line design with aluminum housing ensures efficient heat dissipation and durability. Protection features include short circuit, overload, overvoltage, and overheating safeguards. It is rated IP20 for indoor use and has a power factor greater than 0.9 with efficiency over 85%.

What stands out

• High power output: 150W at 24V DC

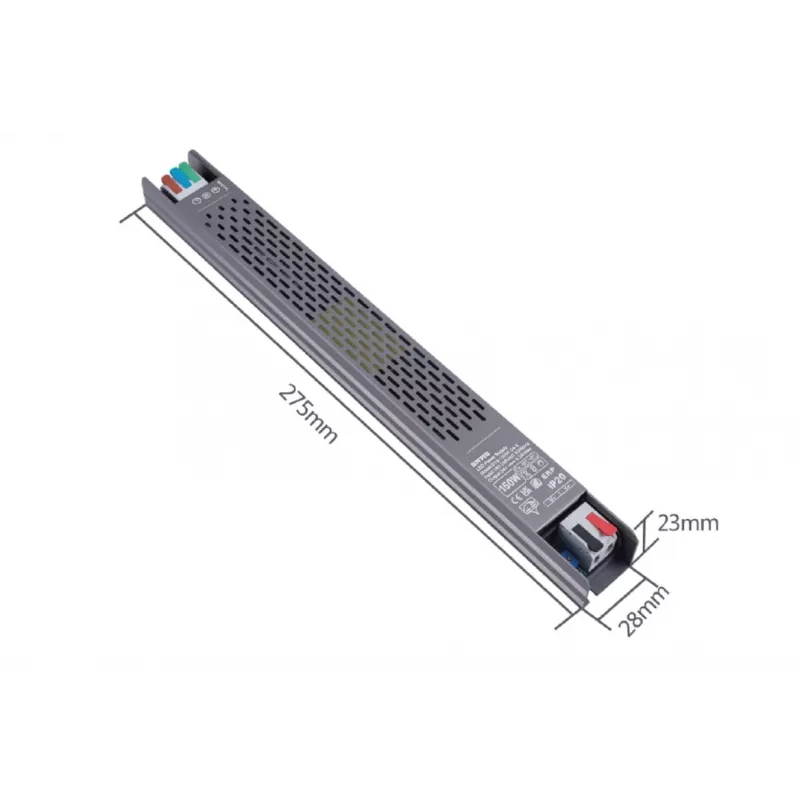

• Slim line aluminum housing for space-saving installation
• Comprehensive protection: short circuit, overload, overvoltage, overheating
• High efficiency (>85%) and power factor (>0.9)
• Wide operating temperature range: -20°C to +45°C

Technical details

• Output voltage: 24V DC
• Output power: 150W
• Output current: 6.25A
• Input voltage: 200-240V AC
• Input frequency: 50/60 Hz
• IP rating: IP20
• Housing material: Aluminum

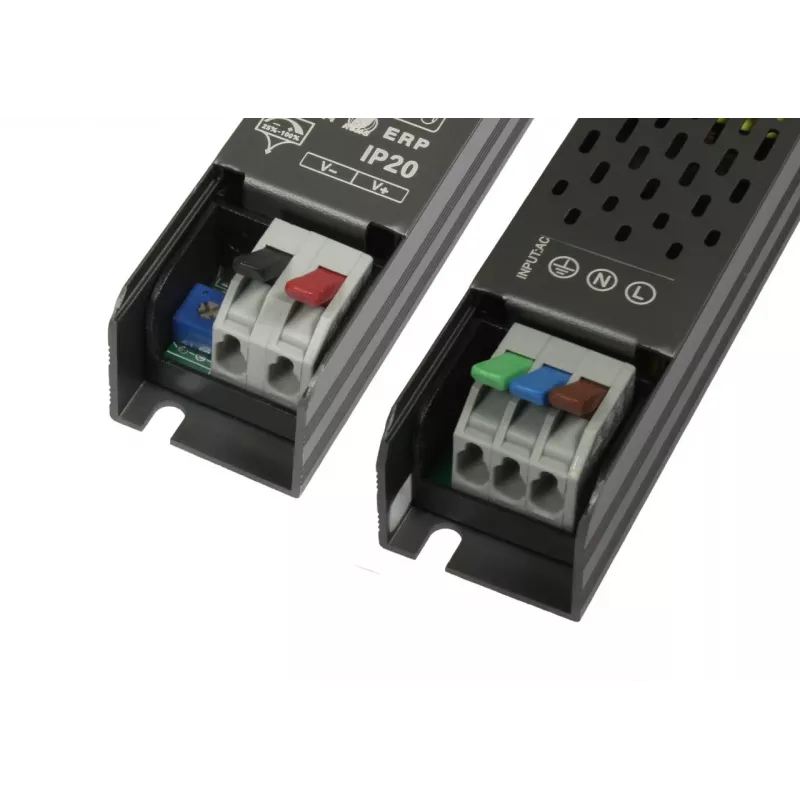

• Connection type: Screw terminals
• Dimming capability: No

Our verdict

A robust and efficient LED power supply for professional indoor lighting projects, offering high power in a compact slim design.
