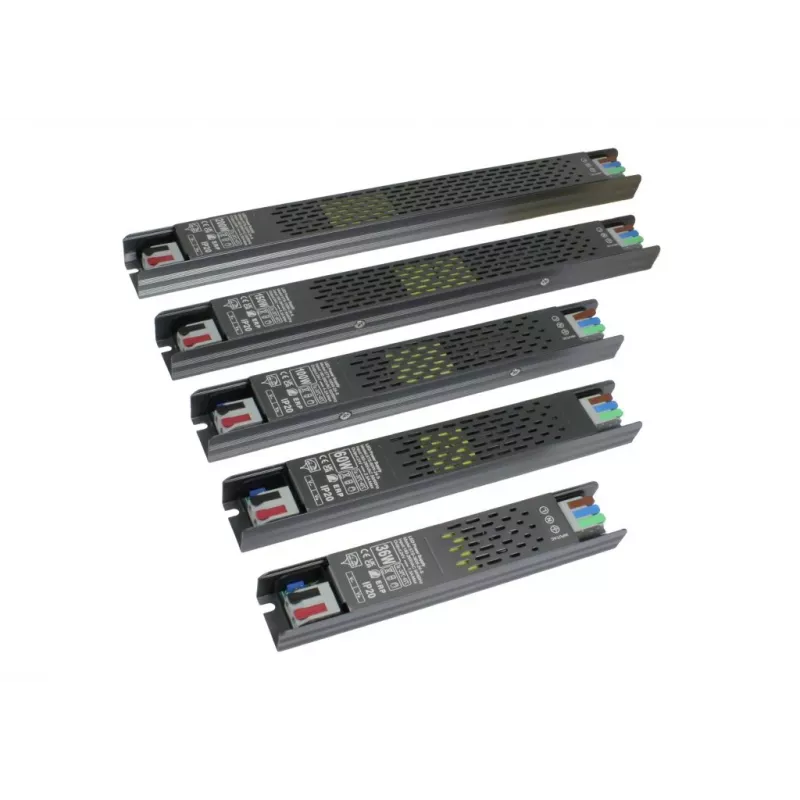

SYNERGY21 24V 200W Slim Line LED-voeding S21-LED-026127

Installers and lighting professionals working on LED strip projects or 24V DC lighting systems will appreciate the SYNERGY21 24V 200W Slim Line LED Power Supply Unit. This compact, fanless power supply converts 100-240V AC mains input to a stable 24V DC output, delivering up to 200W of power for demanding LED installations.

Key specifications

• Output voltage: 24V DC
• Output power: 200W
• Output current: 8.33A
• Input voltage: 100-240V AC, 50/60 Hz
• Efficiency: >85% with active PFC
• Protection: overload, overvoltage, short circuit
• Cooling: passive, fanless design
• IP rating: IP20, for indoor use

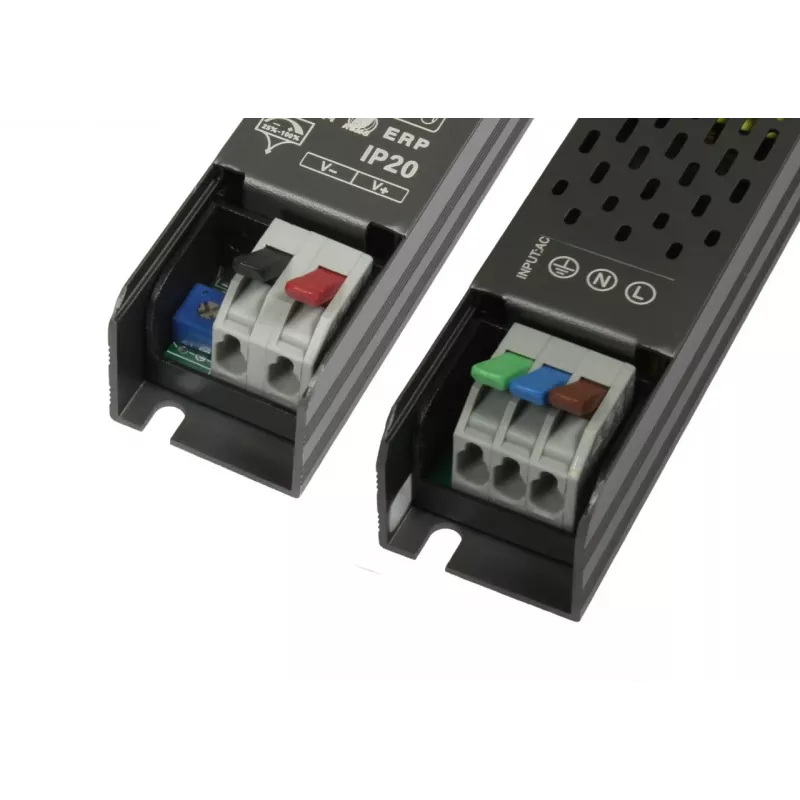

• Housing: metal, screw terminal connections

Why choose it

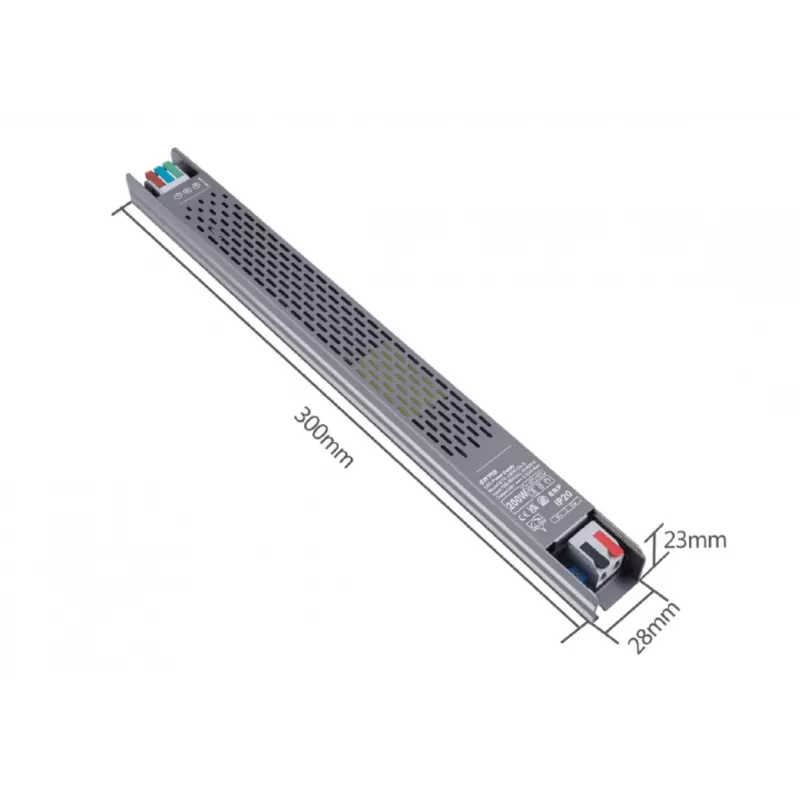

The slim line form factor fits into tight spaces, while the fanless design ensures silent operation—ideal for noise-sensitive environments. Active power factor correction improves energy efficiency and reduces harmonic distortion, and built-in protections safeguard both the power supply and connected LEDs.

Ideal use cases

• LED strip lighting installations
• 24V DC LED fixtures and modules
• Commercial and residential lighting projects
• Indoor applications requiring a reliable, compact power source

Good to know

This power supply is certified to CE and RoHS standards and operates within a temperature range of -20°C to +45°C. It is intended for indoor use only (IP20).
