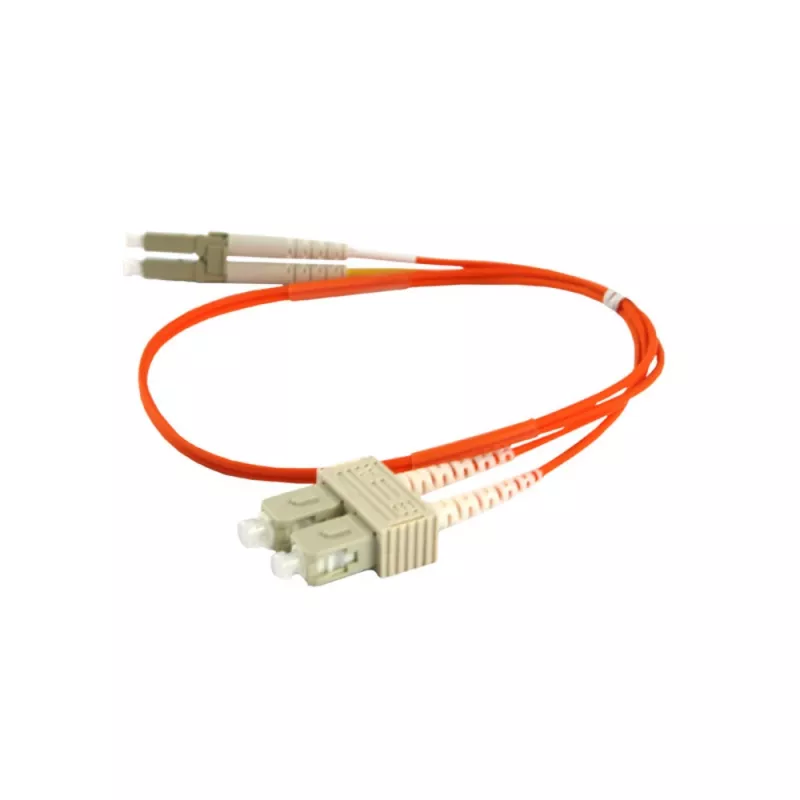

SYNERGY21 fiber optic patchkabel 0,5m OM2 LC naar SC duplex oranje

High-quality fiber optic patch cable from SYNERGY21, designed for reliable data transmission in network environments. This 0.5-meter duplex multimode OM2 cable features LC to SC connectors, ideal for connecting network devices in data centers, ODFs, and enterprise networks.

Advantages

Premium OM2 multimode fiber ensures excellent performance for Gigabit Ethernet and Fiber Channel applications. The durable PVC jacket and orange color provide easy identification and protection. Low insertion loss and high return loss guarantee signal integrity.

Suitable for

• Data centers and server rooms
• Optical distribution frames (ODF)
• Gigabit Ethernet and Fiber Channel networks
• Telecommunications and enterprise networking

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Type: OM2
• Cable Length: 0.5 m
• Connector A: LC
• Connector B: SC
• Connector Configuration: LC to SC
• Cable Construction: Duplex
• Jacket Color: Orange
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Jacket Material: PVC
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 30 dB
• Attenuation at 850nm: 3.0 dB/km
• Attenuation at 1300nm: 1.0 dB/km
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is suitable for short-distance connections within racks or between patch panels.
