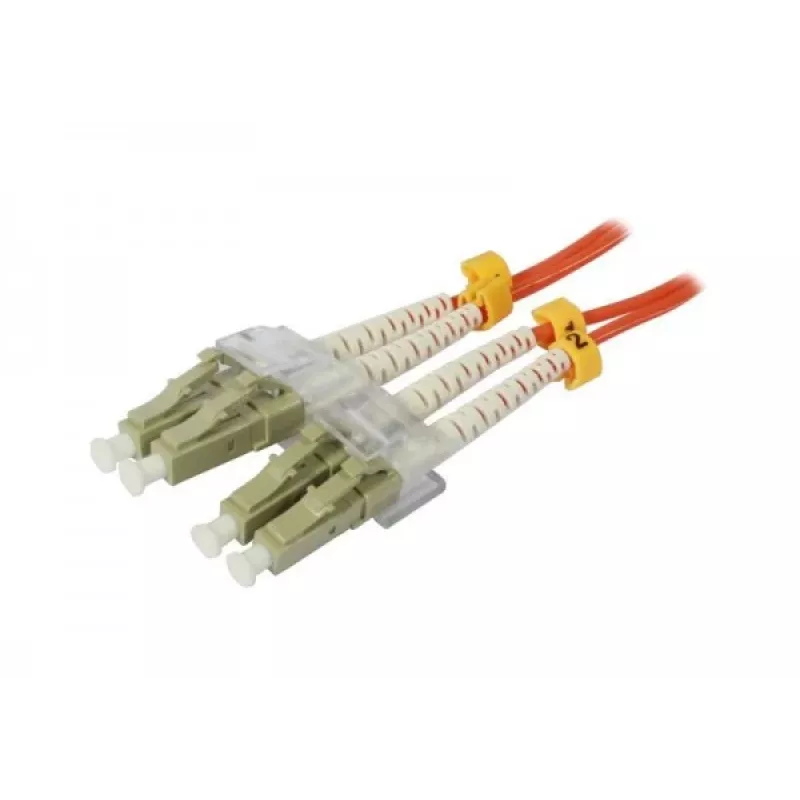

SYNERGY21 glasvezel-patchkabel 10 m OM2 LC duplex oranje

The SYNERGY21 S216725 is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With a length of 10 meters and OM2 standard, it ensures optimal performance for 1 Gbps and 10 Gbps applications. The cable features LC duplex connectors on both ends, making it ideal for connecting network equipment such as switches, routers, and patch panels.

Advantages

This cable offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable data transfer. The orange jacket provides easy identification in cable management systems. The duplex structure allows for simultaneous bidirectional communication, doubling the efficiency of your network connections.

Suitable for

• Data center cabling
• Local area networks (LANs)
• Telecommunications infrastructure
• Fiber-to-the-desk applications
• High-speed data transmission up to 10 Gbps

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Length: 10 m
• Fiber Mode: Multimode
• Fiber Standard: OM2
• Connector A: LC Duplex
• Connector B: LC Duplex
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Jacket Color: Orange
• Cable Structure: Duplex
• Jacket Material: PVC
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Attenuation at 850nm: 3.0 dB/km
• Attenuation at 1300nm: 1.0 dB/km
• Bandwidth at 850nm: 500 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure that the connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces. It is recommended for use in structured cabling systems where high bandwidth and low latency are required.
