SYNERGY21 LC Pigtail 50/125µm OM5 2m 12-pack kleurgecodeerde binnenkabel

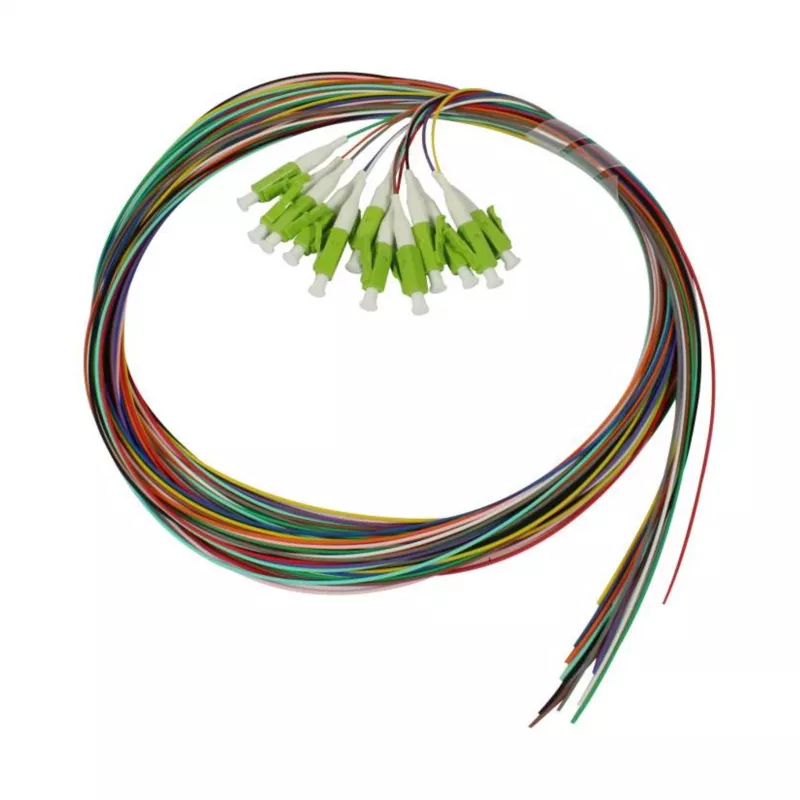

The SYNERGY21 S215510 is a high-quality 12-pack of LC fiber optic pigtails, designed for indoor use. Each pigtail features a 50/125µm OM5 multimode fiber core, providing wideband performance for high-speed data transmission. With a length of 2 meters and color-coded jackets per TIA-598-C, these pigtails simplify fiber management and identification in patch panels and splice closures.

Advantages

OM5 wideband multimode fiber supports multiple wavelengths (850nm/953nm) for future-proof network upgrades. The LC connectors with zirconia ceramic ferrules ensure low insertion loss (<0.3 dB) and high return loss (>30 dB). LSZH jacket material enhances safety in confined spaces by reducing smoke and toxic emissions.

Suitable for

• Data center fiber optic patching
• Telecommunications network splicing
• Indoor fiber distribution systems
• High-speed LAN and SAN environments

Key specifications

• Connector: LC
• Fiber type: Multimode OM5 (50/125µm)
• Length: 2 meters
• Number of fibers: 12 (individual pigtails)
• Jacket: LSZH, color-coded
• Insertion loss: <0.3 dB typical
• Return loss: >30 dB typical
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM5-rated patch panels and connectors. Ensure proper cleaning of LC connectors before mating. Store in a clean, dry environment within -40°C to +85°C.
