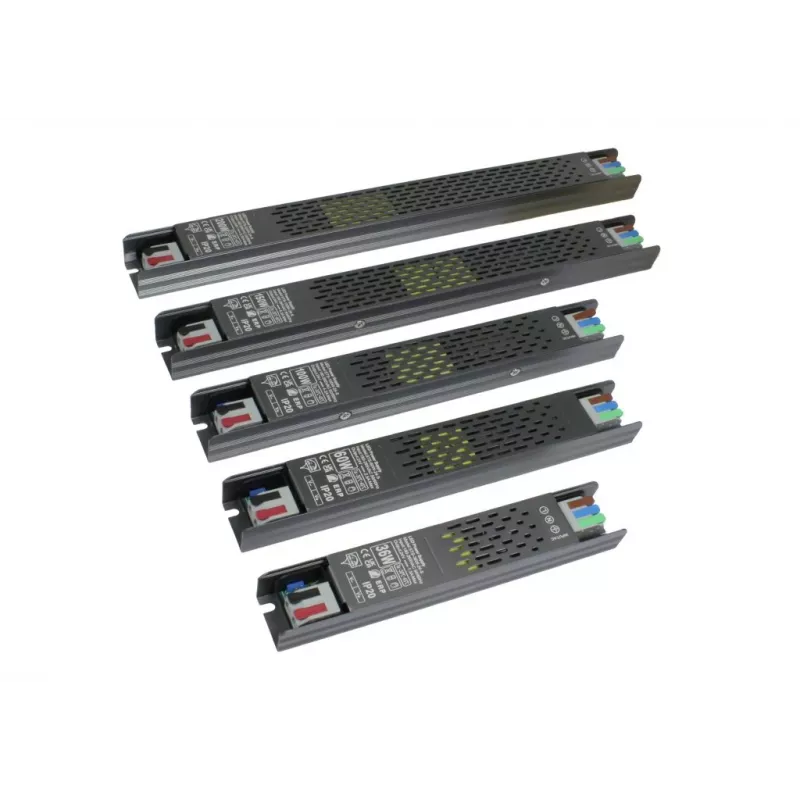

SYNERGY21 S21-LED-026123 24V 36W Slim Line LED-voeding

LED installations often fail because the power supply cannot deliver stable voltage or fit into tight spaces. The SYNERGY21 S21-LED-026123 solves both problems: it provides a constant 24V DC output at 36W, and its slim plastic housing fits into narrow profiles and luminaires where standard power supplies do not.

Who is it for

This power supply is for electricians, lighting installers, and DIY users who need a compact, reliable driver for 24V LED strips, modules, or fixtures in dry indoor locations.

Main features

• Constant voltage output: 24V DC, 1.5A, 36W
• Wide AC input: 200-240V, 50/60 Hz

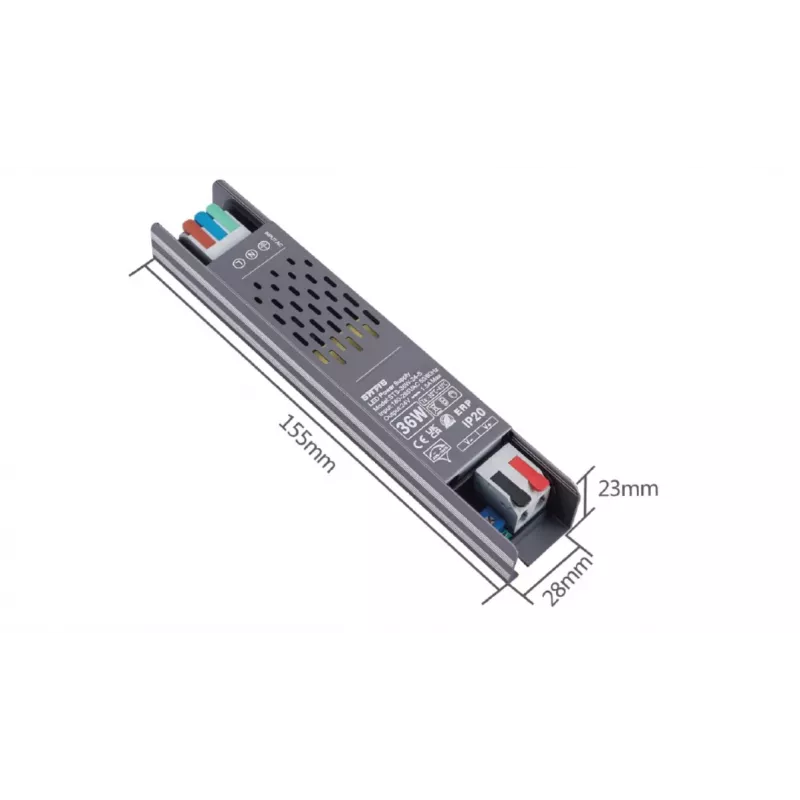

• Slim Line form factor for space-constrained installations
• Plastic housing, IP20 rated for dry indoor use
• Built-in protection: overload, short circuit, over voltage, over temperature
• Efficiency greater than 85%
• Screw terminal connections for secure wiring
• Operating temperature range: -20°C to +45°C

Specifications

• Output voltage: 24V DC
• Output power: 36W
• Output current: 1.5A
• Input voltage: 200-240V AC
• Input frequency: 50/60 Hz
• Efficiency: >85%
• IP rating: IP20
• Housing material: Plastic

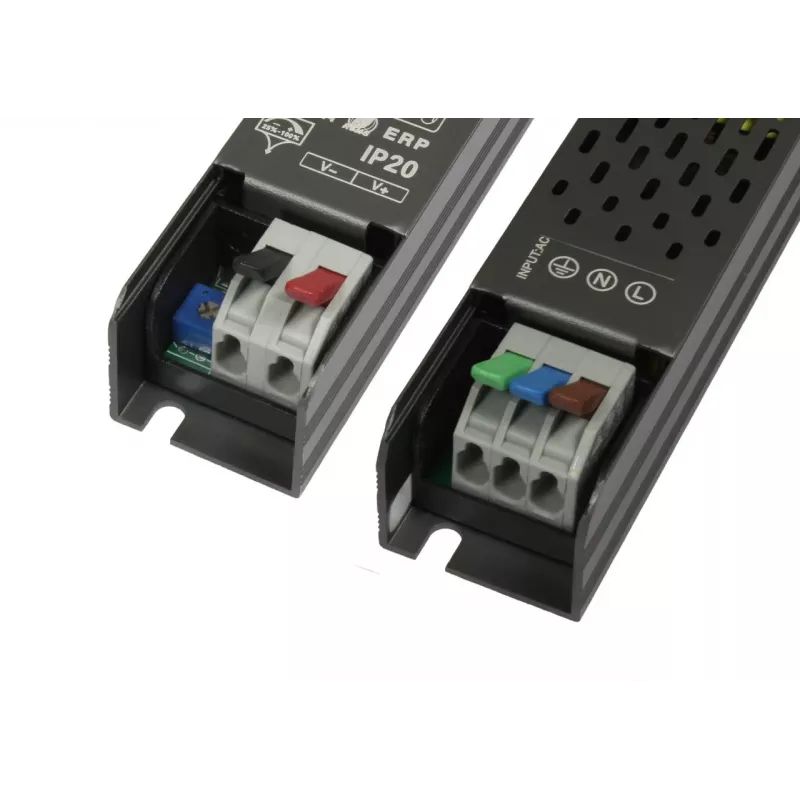

• Connection type: Screw terminals
• Operating temperature: -20°C to +45°C
• Driver type: Constant voltage (CV)
• Number of outputs: 1

Tips

Verify that the total wattage of your LED load does not exceed 36W. For best performance, allow at least 20% headroom. Install only in dry, indoor locations as the IP20 rating does not protect against moisture or dust.
