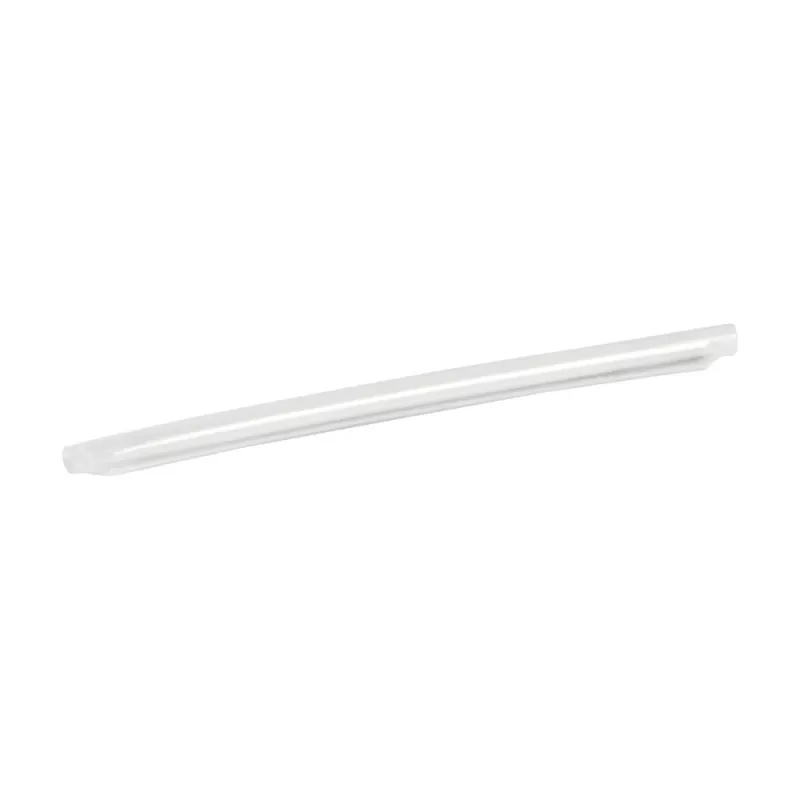

Synergy 21 Fiber Optic Splice Protector, heatshrink sleeve, transparant, 60mm, 100-pack (S215597)

The Synergy 21 Fiber Optic Splice Protector is a high-quality heatshrink sleeve designed for reliable protection of fiber optic splices. This pack contains 100 transparent sleeves, each 60mm in length, ideal for fusion and mechanical splicing applications. Manufactured from durable polyolefin with a stainless steel reinforcement rod, these protectors ensure long-lasting performance in demanding environments.

Advantages

These splice protectors offer excellent moisture, dust, and vibration resistance, ensuring stable optical performance. The transparent design allows for easy visual inspection of the splice. With a 2:1 shrink ratio and a minimum shrink temperature of 120°C, installation is straightforward and secure. RoHS compliant and UV resistant, they are suitable for both indoor and outdoor use.

Suitable for

• Fiber optic fusion splicing
• Mechanical splicing protection
• Telecommunications networks
• Data center installations
• FTTH (Fiber to the Home) applications

Key specifications

• Product Type: Fiber Optic Splice Protector
• Protection Method: Heatshrink Sleeve
• Material: Polyolefin
• Color: Transparent
• Length: 60 mm
• Quantity per Pack: 100 pieces
• Shrink Ratio: 2:1
• Operating Temperature Range: -45°C to +100°C
• Minimum Shrink Temperature: 120°C
• Reinforcement Rod Material: Stainless Steel
• Reinforcement Rod Diameter: 1.0 mm
• Inner Diameter (before shrink): 3.0 mm
• Inner Diameter (after shrink): 1.0 mm
• Dielectric Strength: 15 kV/mm
• Flammability Rating: UL VW-1
• Resistance: Moisture, Dust, Vibration, Corrosion
• Compliance: RoHS Compliant
• UV Resistance: Good

Recommendations

For optimal results, store in a dry, cool place away from direct sunlight. Use with a standard heat gun or fusion splicer heater. Ensure the splice is clean and properly aligned before applying the protector.
