Synergy 21 FTTH Compact Box voorgemonteerd, 4xLC/APC naar open eind, 60m, 9/125µm, G.657.A2, 4-vezel, OD 2,2mm

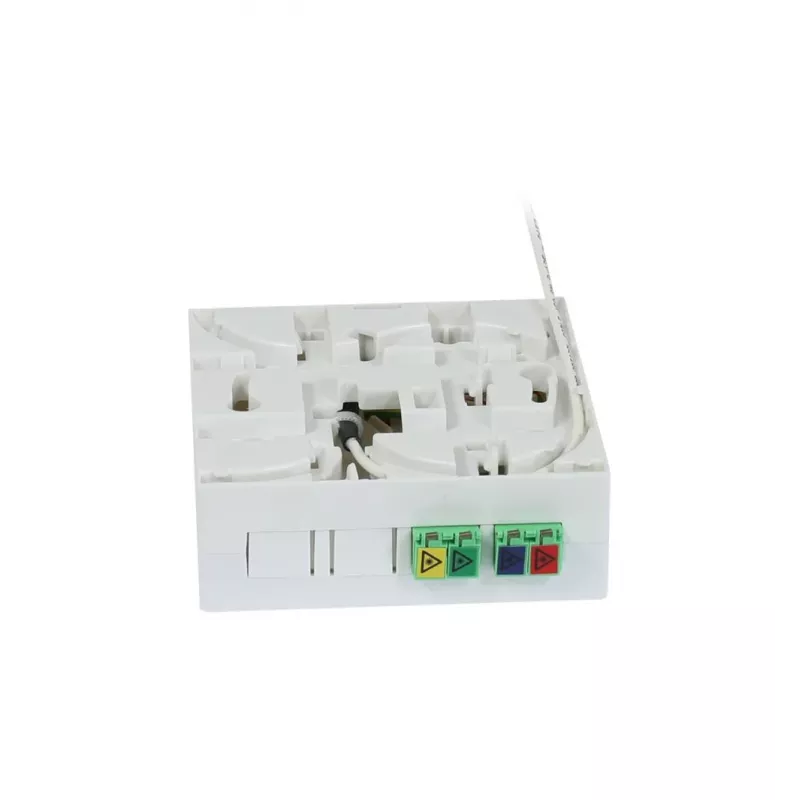

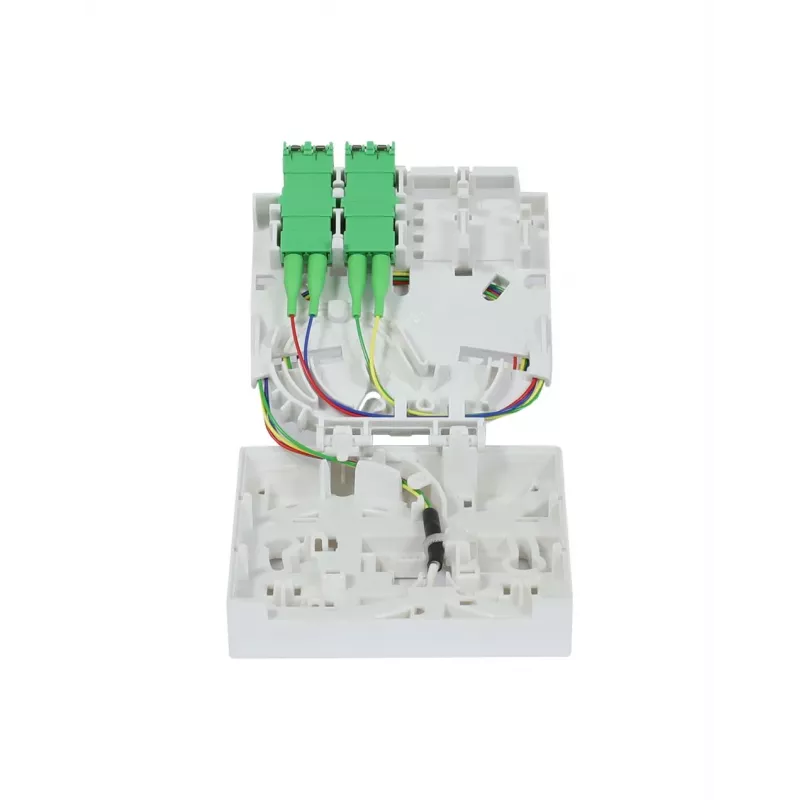

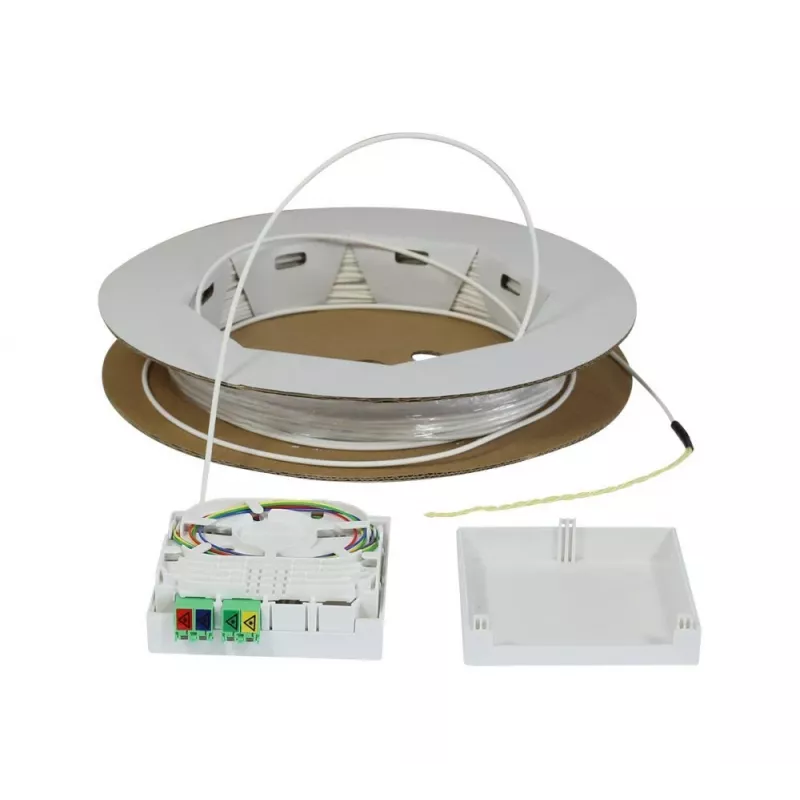

The Synergy 21 FTTH Compact Box is a pre-terminated fiber optic assembly designed for Fiber to the Home (FTTH) applications. It features 4 LC/APC connectors on one end and an open end on the other, with a cable length of 60 meters. The single-mode fiber (9/125 µm) complies with ITU-T G.657.A2 standard, offering bend-insensitive performance. The compact box design ensures easy installation and protection of the splice points.

Advantages

Pre-terminated for quick deployment; bend-insensitive fiber reduces signal loss; compact box saves space; high-quality LC/APC connectors ensure low insertion loss and high return loss.

Suitable for

• FTTH network installations
• Fiber optic distribution points
• Indoor and outdoor applications (with proper enclosure)

Key specifications

• Product Type: FTTH Compact Box
• Fiber Count: 4 fibers
• Fiber Mode: Single-mode
• Core/Cladding: 9/125 µm
• Fiber Standard: ITU-T G.657.A2
• Connector End 1: 4x LC/APC
• Termination End 2: Open end
• Cable Length: 60 meters
• Cable Outer Diameter: 2.2 mm
• Assembly: Pre-terminated

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. Compatible with standard FTTH termination boxes and splice closures.
