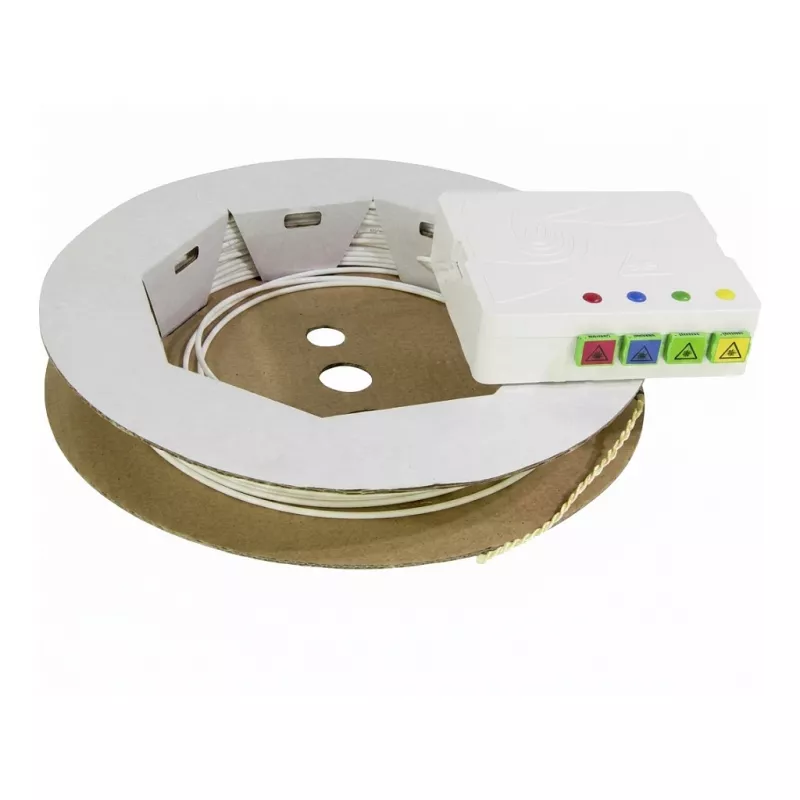

Synergy 21 FTTH compacte box voorgemonteerd 4xLC/APC open end 20m 9/125µm G.657.A2 4-vezel OD 2,2mm

The Synergy 21 FTTH Compact Box is a pre-assembled, high-quality fiber optic termination solution designed for Fiber to the Home (FTTH) applications. This compact box features a 4-fiber single-mode cable with LC/APC connectors on one end and an open end on the other, providing a reliable and efficient connection for your network infrastructure.

Advantages

Pre-terminated for quick and easy installation, saving time and labor costs. The bend-insensitive G.657.A2 fiber ensures excellent performance even in tight spaces. Compact design allows for discreet placement in homes or offices.

Suitable for

• FTTH installations
• Fiber optic network termination
• Last-mile connectivity
• Indoor fiber distribution

Key specifications

• Product Type: FTTH Compact Termination Box
• Fiber Type: Single-mode (SM)
• Fiber Standard: ITU-T G.657.A2 (Bend-Insensitive)
• Fiber Count: 4 Fibers
• Connector Type (End A): LC/APC
• Number of Connectors (End A): 4
• Connector Type (End B): Open End (Unterminated)
• Cable Length: 20 meters
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Cable Outer Diameter: 2.2 mm
• Termination Status: Pre-terminated
• Polishing Type: APC (Angled Physical Contact)

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. Compatible with standard FTTH termination boxes and splice closures.
