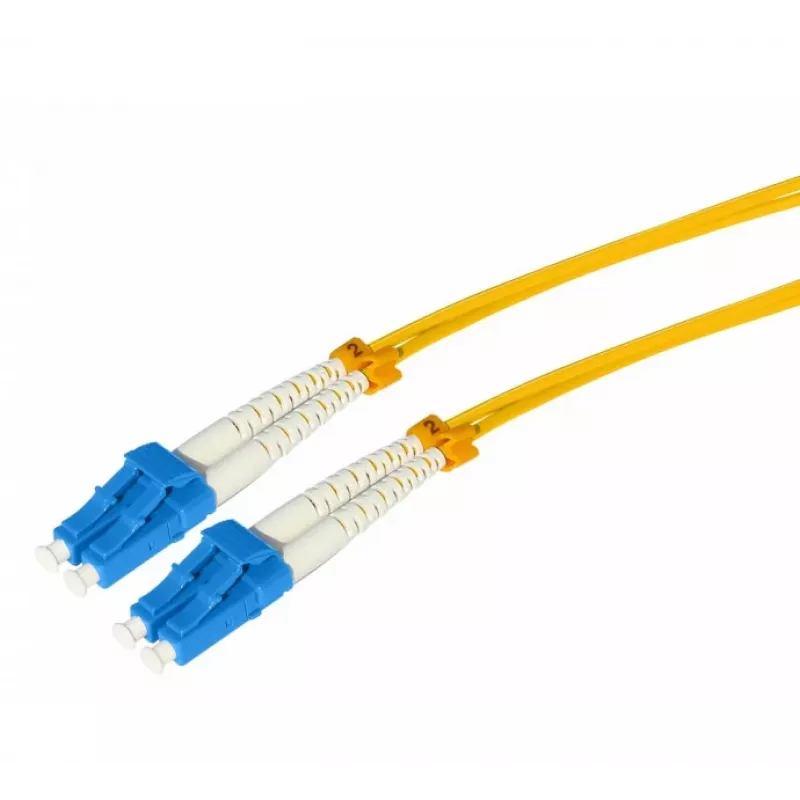

Tecline HD glasvezel-patchkabel, 9/125 µm, singlemode, OS2, LC duplex naar LC duplex, geel, 30,0 m 799LL30

In data centres and telecom rooms, this 30-metre Tecline HD fibre optic patch cable connects LC duplex ports on switches, routers, and patch panels. Its yellow LSZH jacket and UPC-polished connectors support stable singlemode links for high-speed backbone runs.

Key specifications

• Cable type: Fibre optic patch cable
• Fibre mode: Singlemode
• Fibre standard: OS2
• Core/cladding diameter: 9/125 µm
• Connectors: LC Duplex to LC Duplex
• Cable length: 30.0 m
• Jacket colour: Yellow
• Number of fibres: 2
• Configuration: Duplex
• Maximum data rate: Up to 100 Gbps
• Compatibility: 10GBASE-LR, 40GBASE-LR4, 100GBASE-LR4
• Jacket material: Low Smoke Zero Halogen (LSZH)
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 50 dB
• Connector polish: UPC

Why choose it

OS2 fibre supports long-distance, high-bandwidth transmission with minimal loss. The duplex LC connectors provide a secure, keyed connection, and the yellow LSZH jacket is easy to identify in dense cabling while reducing smoke and toxicity in case of fire.

Ideal use cases

• Data centre backbone links
• Enterprise LAN interconnects
• Telecommunications infrastructure
• 10G/40G/100G Ethernet uplinks

Good to know

UPC polish ensures low back reflection, making this cable suitable for high-speed digital and analogue transmission. The cable is duplex, containing two fibres for bidirectional communication.
