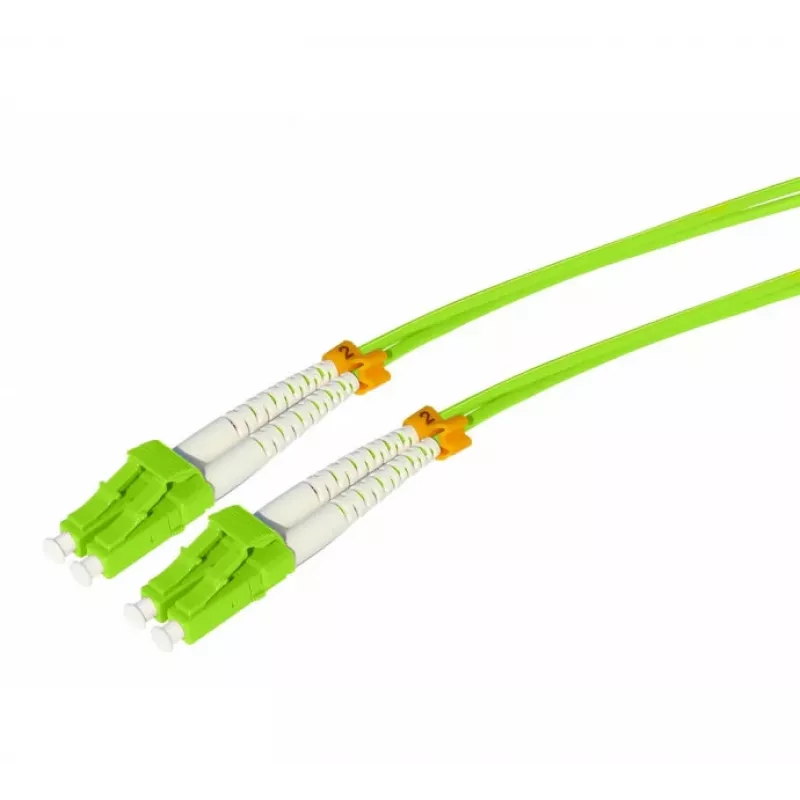

Tecline HD glasvezel patchkabel OM5 50/125µm LC duplex naar LC duplex, limoengroen, 7,5 m 796LL07

This Tecline HD patch cable stands out with OM5 multimode fiber, supporting high-speed data transmission up to 400GbE over short distances. The lime green jacket provides quick identification in dense cabling environments, while the LC duplex connectors ensure reliable connections.

Highlights

• OM5 fiber supports 100G, 200G, and 400G Ethernet
• Lime green LSZH jacket for safety and visibility
• LC duplex connectors for high-density installations
• Low insertion loss of less than 0.3 dB

In daily use

Ideal for data centers, LANs, and SANs, this cable delivers consistent performance across 850nm and 953nm wavelengths. The 7.5-meter length offers flexibility for rack-to-rack connections, and the LSZH jacket reduces toxic smoke in case of fire.

Full specifications

• Fiber type: OM5 multimode 50/125 µm
• Connectors: LC Duplex to LC Duplex (male-male)
• Length: 7.5 m
• Jacket material: LSZH
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Bandwidth: 2800 MHz·km @850nm, 4700 MHz·km @953nm
• Operating temperature: -20°C to +70°C

Final note

Choose Tecline HD OM5 for future-ready multimode fiber connectivity.
