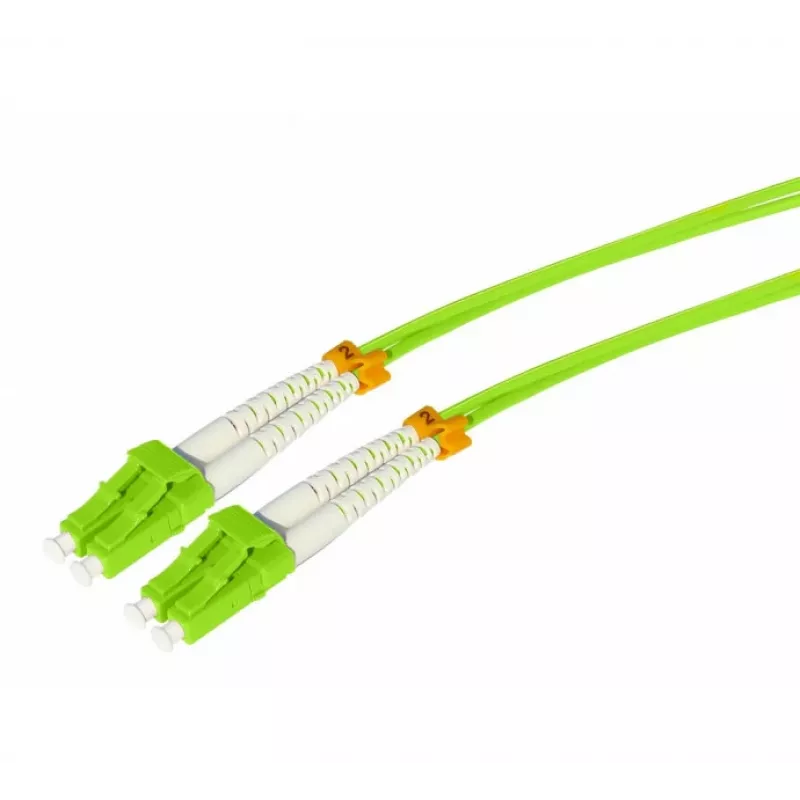

Tecline HD OM5 LC duplex naar LC duplex multimode glasvezel-patchkabel, 50/125 µm, limoengroen, 25 m 796LL25

This Tecline HD fiber patch cable stands out with its OM5 multimode fiber, which supports short-wavelength division multiplexing (SWDM) for higher bandwidth over existing infrastructure. The lime green jacket provides instant identification of OM5 in crowded patching fields.

Highlights

• OM5 multimode fiber, 50/125 µm core/cladding
• LC Duplex to LC Duplex connectors with zirconia ceramic ferrules
• Lime green LSZH jacket, 25 m length
• Supports 10G, 40G, and 100G Ethernet
• Optimized for 850 nm and 953 nm wavelengths
• Backward compatible with OM3 and OM4

In daily use

Ideal for data centers, SANs, and enterprise networks, this cable delivers low insertion loss and reliable performance. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for enclosed spaces. Its duplex clip ensures secure connections in high-density panels.

Full specifications

• Cable type: Fiber optic patch cable, multimode
• Fiber standard: OM5
• Core/cladding diameter: 50/125 µm
• Connectors: LC Duplex to LC Duplex, male-male
• Polarity: A-B cross-over
• Number of fibers: 2
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB
• Standards compliance: TIA/EIA-568.3-D, ISO/IEC 11801

Final note

With its OM5 rating and SWDM support, this cable is a future-ready choice for high-speed multimode links.
