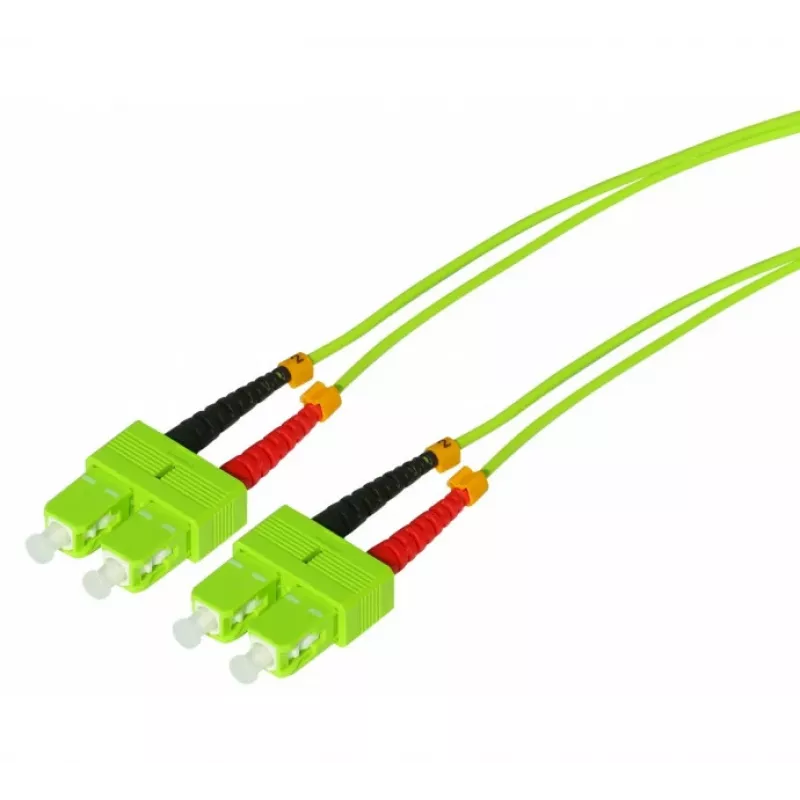

Tecline HD OM5 SC duplex glasvezel-patchkabel, 50/125 µm, limoengroen, 1 m 796SS01

Fibre optic patch cable with SC duplex connectors, delivering high-speed multimode transmission over OM5 wideband fibre. Supports wavelengths of 850 nm and 953 nm for versatile data centre and LAN applications.

Advantages

OM5 fibre provides extended bandwidth for short-wave division multiplexing, enabling higher data rates over longer distances compared to OM4. The LSZH jacket emits low smoke and zero halogen, improving safety in enclosed spaces. Pre-terminated SC duplex connectors ensure quick, reliable connections without field polishing.

Suitable for

• Data centre interconnects
• Local area networks (LAN)
• Storage area networks (SAN)
• FTTx deployments

Key specifications

• Fibre type: Multimode OM5
• Core/cladding diameter: 50/125 µm
• Connectors: SC duplex to SC duplex
• Cable length: 1 m
• Jacket material: LSZH
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Bandwidth: 2800 MHz·km @ 850 nm, 1500 MHz·km @ 953 nm
• Operating temperature: -20°C to +70°C

Recommendations

Ensure both connected devices support SC duplex interfaces and multimode fibre. For best performance, keep bend radius within manufacturer guidelines.
