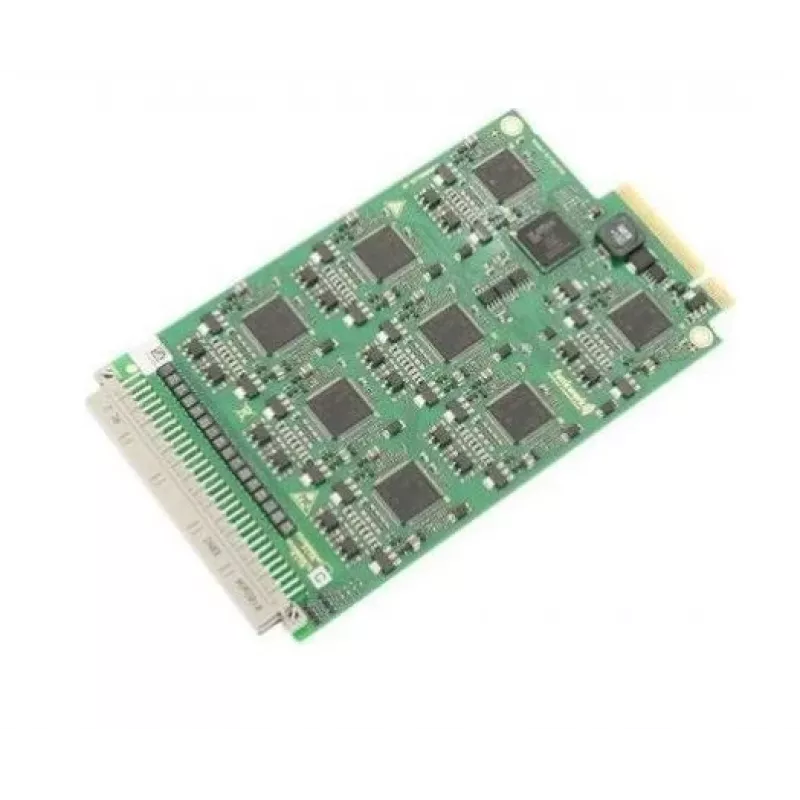

Telefooninterfacemodule Teldat Elmeg 5510000227 — 16 x FXS-poorten

Teldat Elmeg 5510000227 is a telephony interface module that provides 16 FXS analog ports for connecting standard analog telephones, fax machines or analog devices to a compatible Teldat/Elmeg communication system. The module is intended for installation in business telephony environments where centralized management, multiple concurrent analog extensions and reliable voice connectivity are required. It integrates with the host system to present analog extensions as managed stations and supports standard signaling and line characteristics for office use.

Advantages

The module offers sixteen dedicated FXS ports in a compact form factor compatible with supported Teldat/Elmeg chassis or systems, allowing migration of legacy analog devices without separate gateways. Centralized provisioning and fault monitoring are handled by the host platform, simplifying administration. By consolidating analog lines into the IP telephony infrastructure, the module reduces the need for standalone analog PBXs and preserves existing telephone and fax hardware investments.

Suitable for

Key specifications

How to use

Install the module into a compatible Teldat/Elmeg host chassis or system following the vendor's hardware installation guide. After secure mechanical and electrical installation, access the host system management interface to enable and provision each FXS port for the desired extension numbers, ring patterns and line features. Connect analog telephones or fax machines to the module's FXS ports using standard RJ‑11 wiring. Verify dial tone, ringing and call setup for each port and adjust configuration in the host system as required.

Recommendations

For reliable operation, place analog endpoints on short telephone wiring runs and use shielded or standard telephony cabling to avoid interference. Keep firmware and host system software up to date to ensure compatibility and security. When migrating large numbers of analog devices, plan port provisioning and numbering in advance and document configurations to simplify maintenance.
