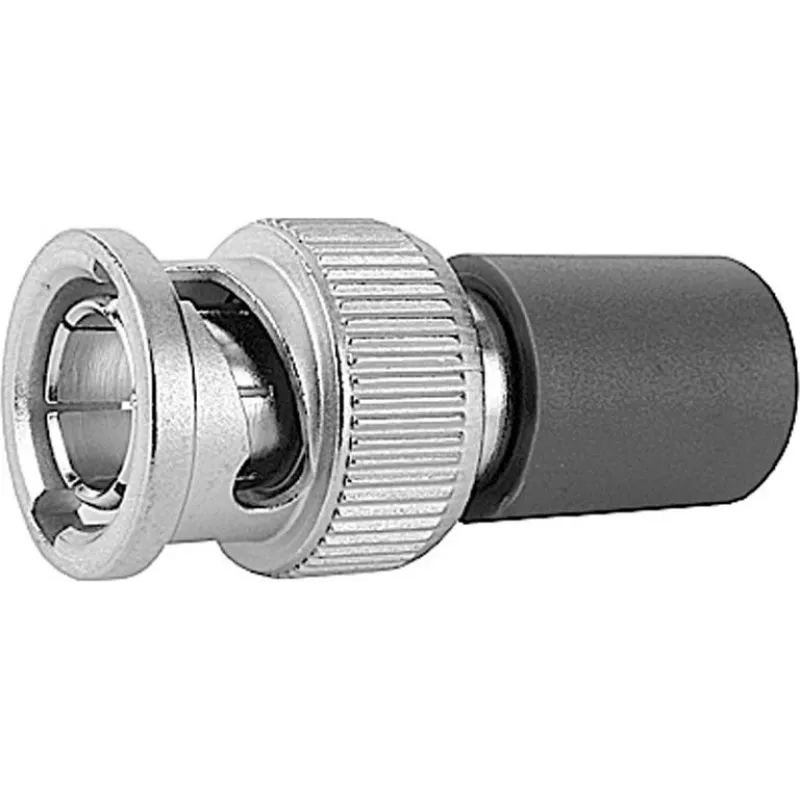

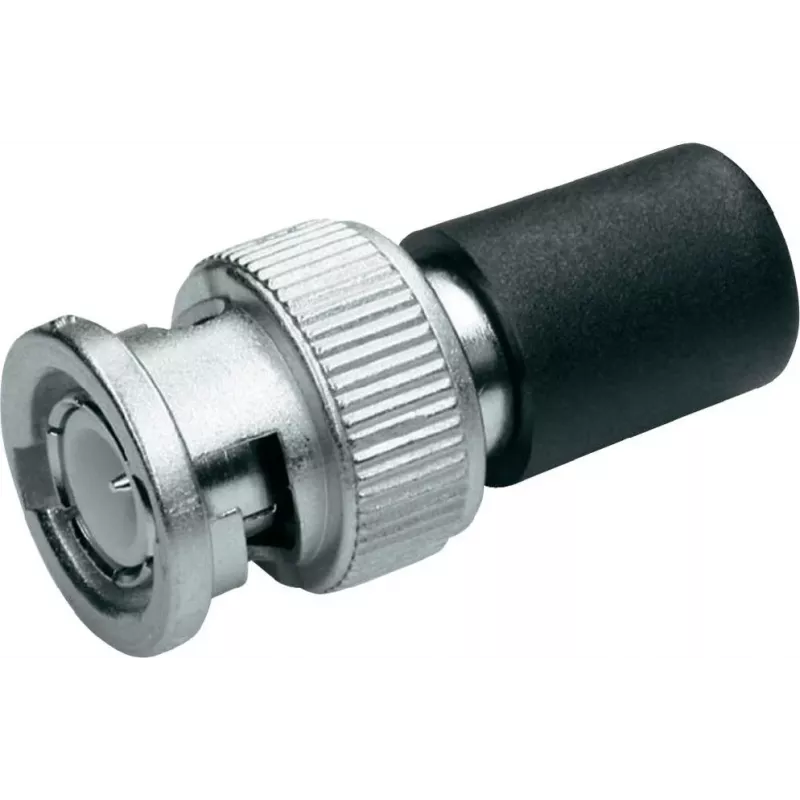

Telegärtner BNC afsluitweerstand 75 Ohm stekker J01006A1268

This BNC termination resistor from Telegärtner is a precision 75 Ohm plug-in terminator that closes open coaxial lines with a clean, stable load. Unlike generic terminators, it is built with a gold-plated brass center contact, PTFE insulation, and a nickel-plated brass body for low signal reflection up to 1 GHz.

Highlights

• 75 Ohm impedance matches standard video and telecom cabling
• BNC male plug for direct connection to female BNC ports
• Frequency range DC to 1 GHz with VSWR ≤ 1.2
• 0.5 W power rating at 70 °C
• Operating temperature from -40 °C to +85 °C

In daily use

Install the terminator on unused BNC outputs of splitters, distribution amplifiers, or patch panels to prevent signal reflections and maintain signal integrity. The compact plug-in design requires no tools and fits standard BNC jacks. The gold-plated center contact ensures long-term corrosion resistance and reliable contact.

Full specifications

• Connector type: BNC male plug
• Impedance: 75 Ohm
• Frequency range: DC - 1 GHz
• VSWR: ≤ 1.2 up to 1 GHz
• Power rating: 0.5 W at 70 °C
• Insulation resistance: ≥ 5 GΩ
• Dielectric withstanding voltage: 1500 Veff
• Operating temperature: -40 °C to +85 °C
• Center contact: brass, gold plated
• Outer contact: brass, nickel plated
• Insulator: PTFE
• Body: brass, nickel plated
• Mounting type: plug-in

Final note

A reliable 75 Ohm BNC terminator for professional coaxial installations where signal purity matters.
