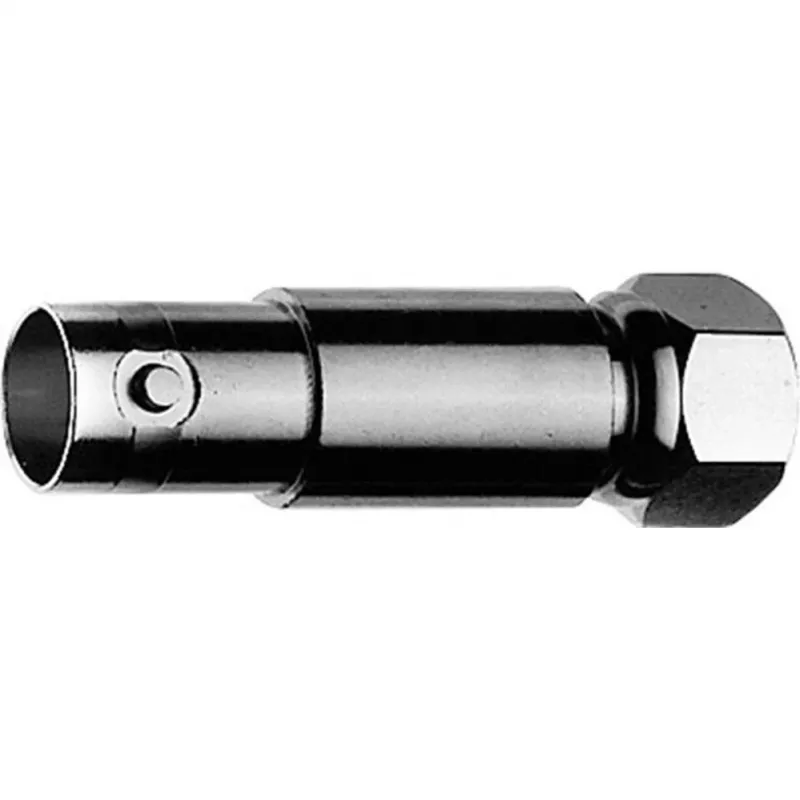

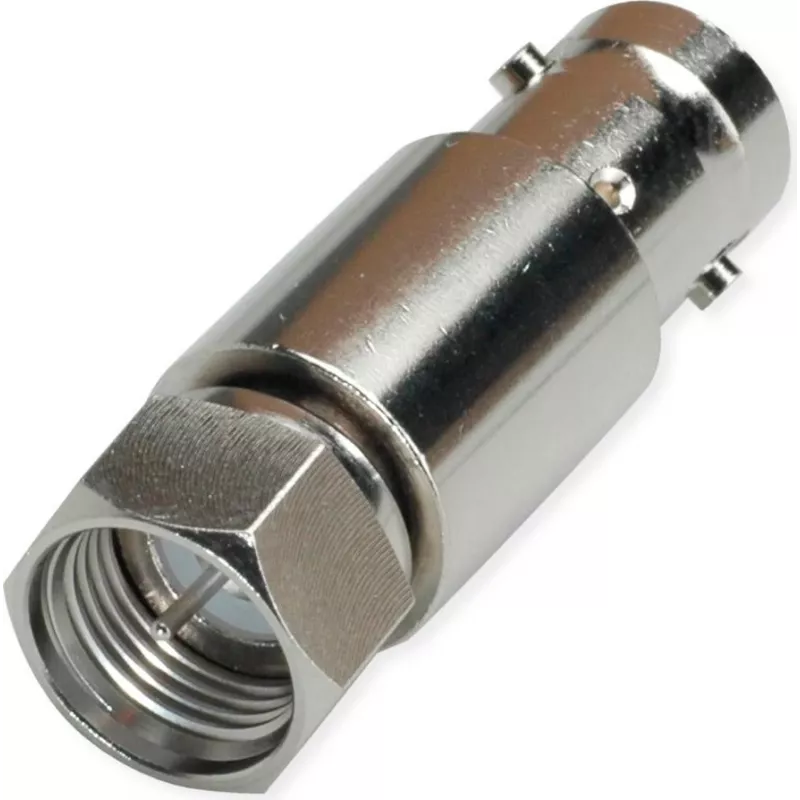

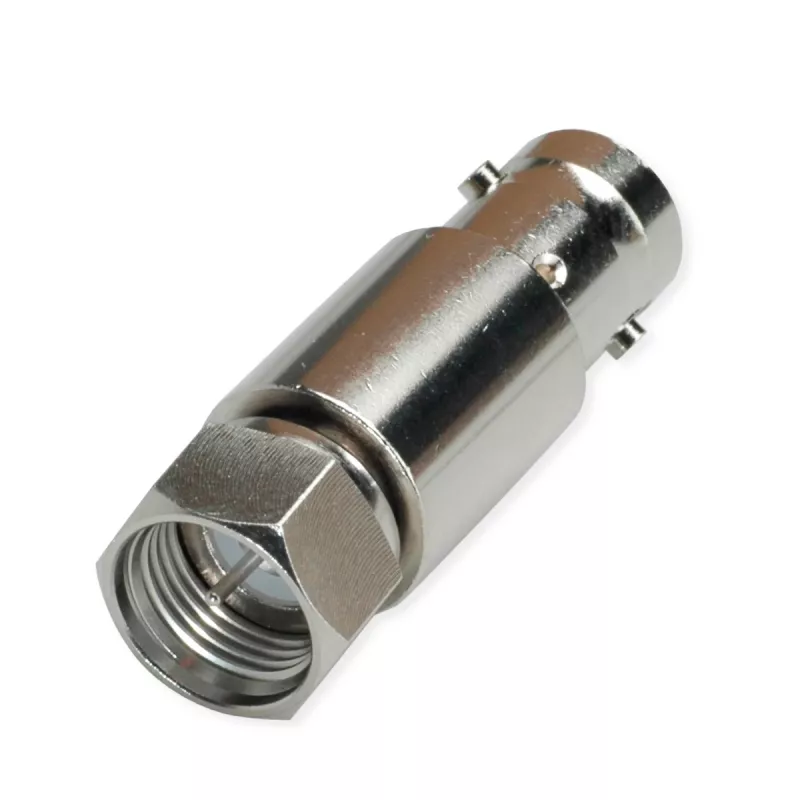

Telegärtner BNC-bus naar F-stekker coaxadapter, 75 Ohm, vernikkeld messing

In CCTV and satellite installations, technicians often need to connect a BNC-terminated cable to an F-type port. This Telegärtner adapter provides a direct, impedance-matched transition between the two connector styles, eliminating the need for custom cabling.

Key specifications

• Connector 1: BNC female (jack)
• Connector 2: F male (plug)
• Impedance: 75 Ohm
• Frequency range: 0 – 1 GHz
• Body material: brass with nickel plating
• Inner conductor plating: gold
• Insulator: PTFE
• Operating temperature: -40 °C to +85 °C
• VSWR: < 1.2 at 1 GHz

Why choose it

The adapter maintains a consistent 75 Ohm impedance across the connection, which is critical for video and RF signal integrity. Gold-plated inner contacts resist corrosion and ensure low contact resistance, while the nickel-plated brass body provides mechanical durability.

Ideal use cases

• Connecting BNC-equipped surveillance cameras to F-type coaxial runs
• Adapting test equipment with BNC ports to F-type cables
• Satellite and cable TV installations requiring interface conversion

Good to know

The PTFE insulator offers stable dielectric properties across the full operating temperature range. The adapter is a straight, in-line design suitable for tight spaces.
