Telegärtner L80404A0005 7,5m Cat6a S/FTP (S-STP) groene netwerkkabel

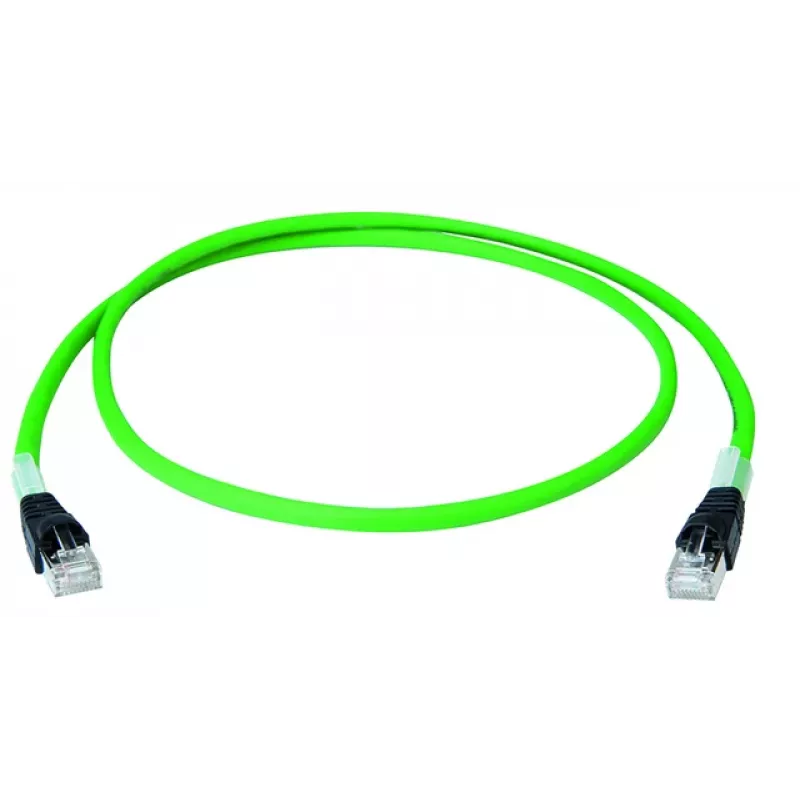

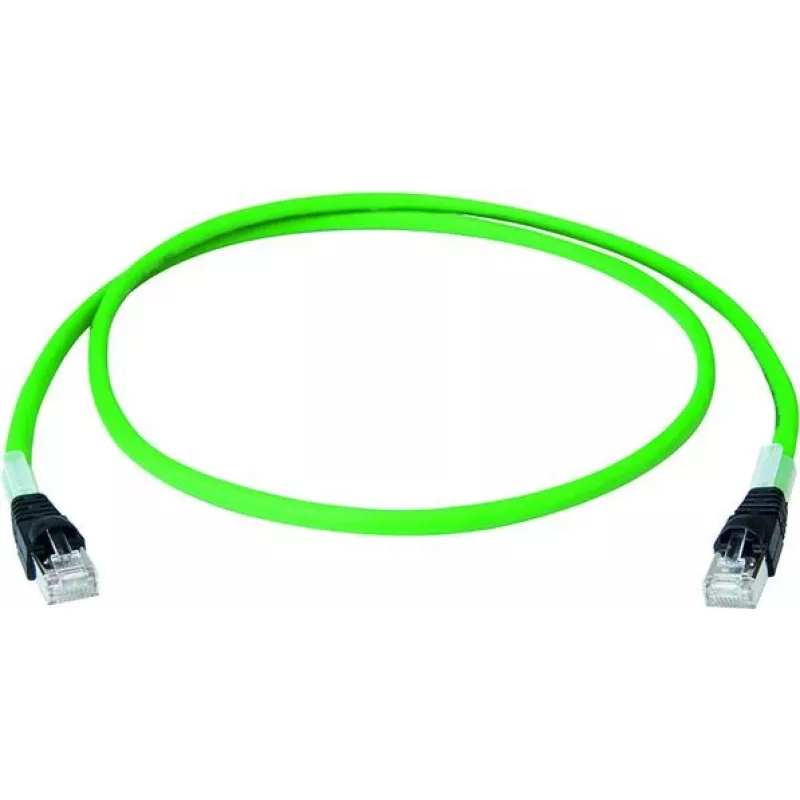

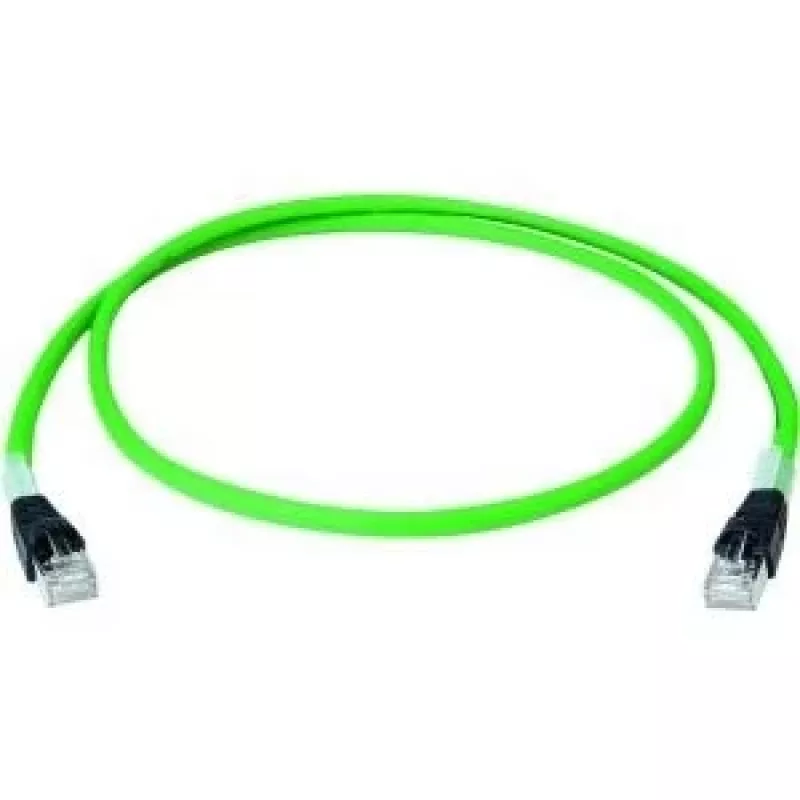

Cat.6A patch cable with S/FTP shielding delivers 10 Gigabit Ethernet over 7.5 meters. The green LSZH jacket and gold-plated RJ45 connectors ensure reliable, halogen-free performance in high-density installations.

Advantages

Supports 10GBASE-T up to 500 MHz with superior alien crosstalk resistance. Stranded copper conductors (AWG 26/7) provide flexibility, while the LSZH jacket reduces toxic smoke in case of fire.

Suitable for

• Data centers and server rooms
• 10G Ethernet backbone connections
• Workstations requiring high-speed, low-latency links
• Environments with strict fire safety regulations

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 7.5 m
• Colour: Green
• Connectors: RJ45 (8P8C) with 50µ" gold-plated contacts
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Stranded copper, AWG 26/7
• Jacket: LSZH (halogen-free)
• Wiring: TIA/EIA 568B
• Outer diameter: 6.2 mm
• Operating temperature: -20°C to +60°C

Recommendations

For reliable 10G links in structured cabling, pair with Telegärtner AMJ-SL modules and patch panels to maintain end-to-end performance.
