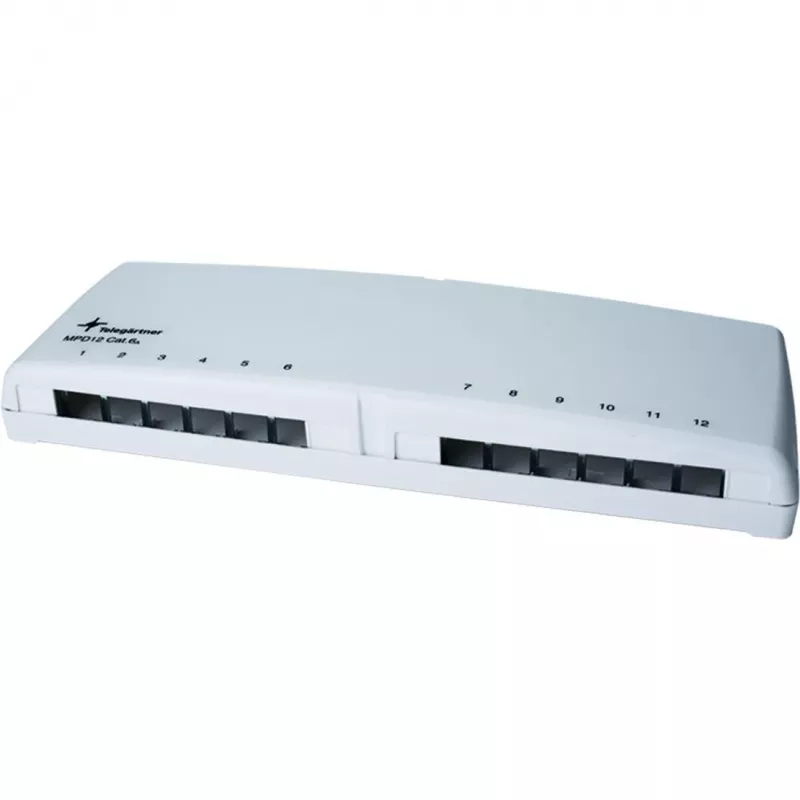

Telegärtner Mini Distributor MPD12 AMJ/UMJ TH35/AP - opbouw-verdeelbox - alpinweiß - 12 poorten (H202000A0106)

Mini distribution box for structured cabling with 12 ports, surface mount design, and integrated TH35 DIN rail for Telegärtner AMJ/UMJ modules. The housing in Alpine White (RAL 9010) is made of halogen-free PC/ABS and provides six cable entry points (top, bottom, rear) with M20/M25 knockouts. An integrated grounding bolt ensures proper earthing. Suitable for office and industrial environments, compliant with DIN EN 50173-1, ISO/IEC 11801, EN 60603-7, and IEC 60603-7.

Advantages

Compact surface-mount enclosure with 12 ports, integrated DIN rail for flexible module installation, halogen-free housing, and multiple cable entry options for clean cable management.

Suitable for

• Structured cabling in office buildings
• Industrial network distribution points
• Copper and fiber optic module integration

Key specifications

• Product Type: Mini Distribution Box
• Mounting Type: Surface Mount
• Number of Ports: 12
• Module Compatibility: Telegärtner AMJ/UMJ Modules
• Internal Module Mounting: Integrated TH35 DIN Rail
• Housing Material: PC/ABS (Halogen-free)
• Color: Alpine White (RAL 9010)
• IP Protection Class: IP20
• Cable Entry Points: 6 (2x M20/M25 top, 2x M20/M25 bottom, 2x M20/M25 rear)
• Grounding: Integrated Grounding Bolt
• Operating Temperature Range: -5 °C to +50 °C
• Application: Structured Cabling (Office, Industrial)
• Standards Compliance: DIN EN 50173-1, ISO/IEC 11801, EN 60603-7, IEC 60603-7
• Suitable for: Copper and Fiber Optic Modules

Recommendations

For a reliable and flexible distribution point in your network infrastructure, this Telegärtner Mini Distributor offers a robust and compliant solution with easy module installation.
