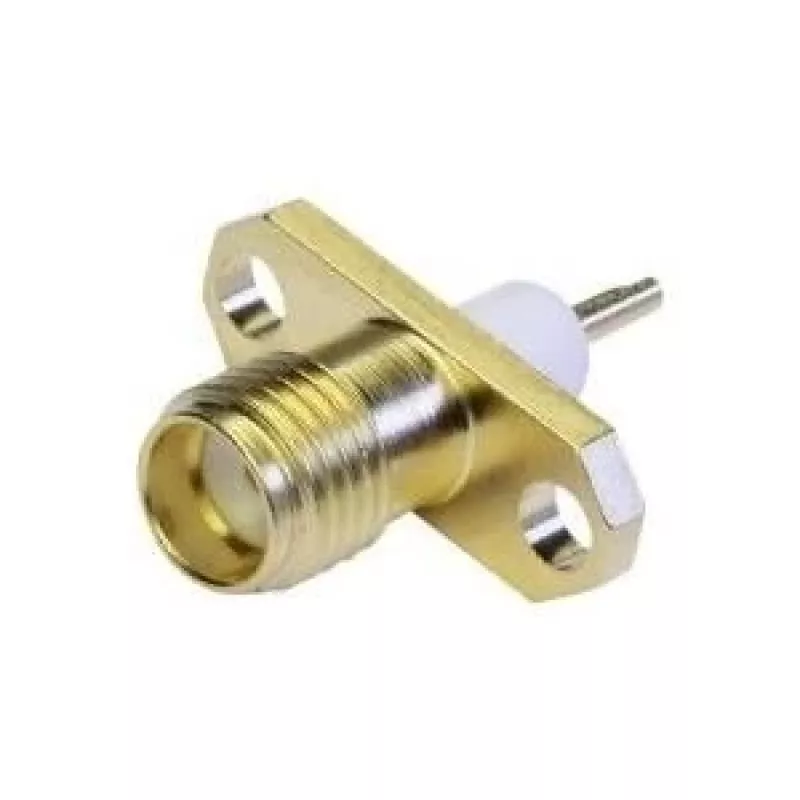

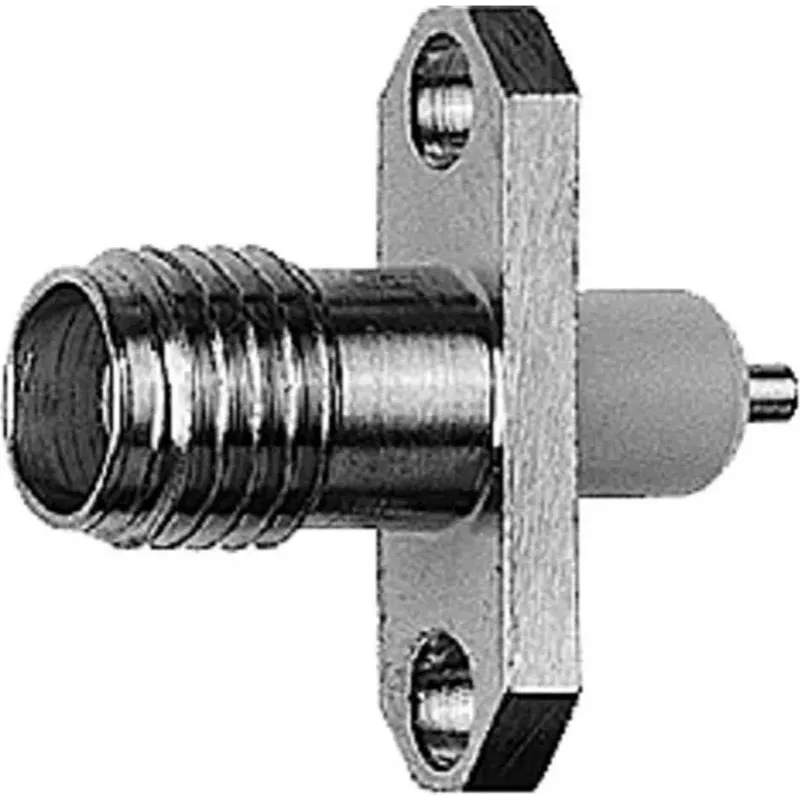

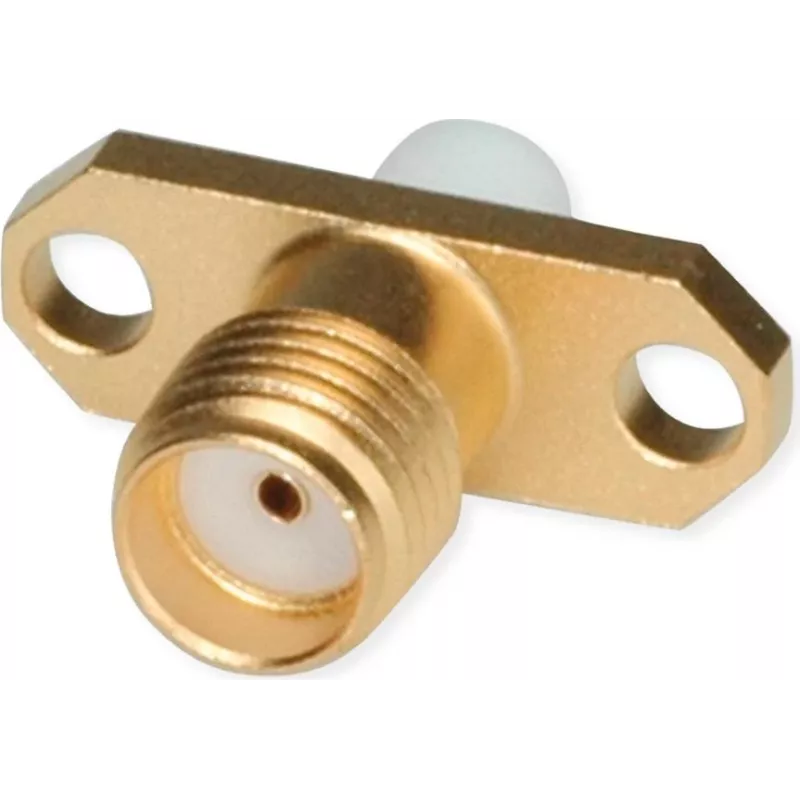

Telegärtner SMA-inbouwbus met flens Z28, goud (standaard) - 5 stuks (J01151A0631)

With a frequency range up to 18 GHz and gold-plated contacts, this SMA bulkhead jack delivers low-loss RF performance in a compact flange-mount package.

Overview

The Telegärtner J01151A0631 is a 50 Ohm SMA female connector designed for panel mounting. It features a 4-hole flange with 12.7 x 12.7 mm dimensions and 9.52 mm hole spacing, making it suitable for bulkhead installations in RF systems.

What stands out

• Gold-plated center and body contacts for corrosion resistance and low contact resistance
• PTFE insulator ensures stable impedance and high-temperature tolerance
• Supports up to 500 mating cycles for reliable repeated connections
• Wide operating temperature range from -65 °C to +165 °C
• Pack of 5 connectors for production or repair needs

Technical details

• Connector type: SMA jack (female)
• Mounting: 4-hole flange, bulkhead
• Impedance: 50 Ohm
• Frequency range: DC to 18 GHz
• VSWR: max 1.3 @ 18 GHz
• Contact resistance: center ≤ 3 mOhm, outer ≤ 2 mOhm
• Insulation resistance: ≥ 5 GOhm
• Dielectric withstanding voltage: 1000 Veff
• Operating voltage: 335 Veff
• Body material: brass with gold plating
• Insulator: PTFE

Our verdict

A high-quality SMA bulkhead jack for professional RF applications, offering excellent electrical performance and durability in a convenient 5-pack.
