Telegärtner SMB-bus connector, inbouw, 50 Ohm, goud/nikkel gecoat, soldeeraansluiting J01160A0271

Engineered for reliable RF performance up to 4 GHz, this SMB jack connector features gold-plated contacts and a robust panel-mount design, ensuring low VSWR and high durability in demanding applications.

Overview

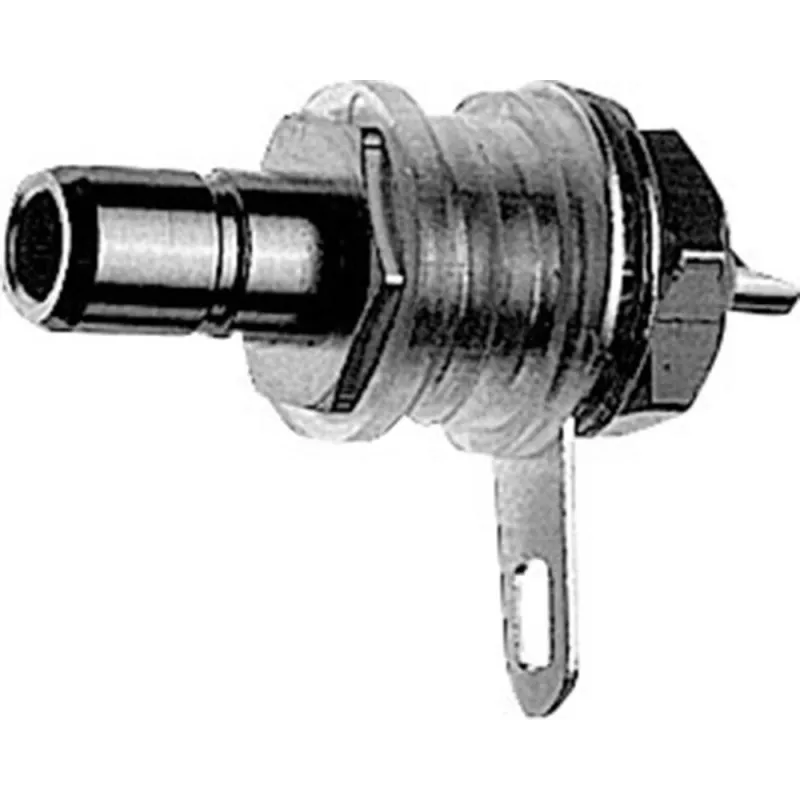

The Telegärtner J01160A0271 is a 50 Ohm SMB jack connector designed for panel mounting. It offers a straight body style and solder termination for both center and outer contacts, making it suitable for a wide range of coaxial cable assemblies. The connector operates within a frequency range of DC to 4 GHz and withstands temperatures from -65 °C to +165 °C.

What stands out

• Gold-plated contacts (0.8 µm) ensure excellent conductivity and corrosion resistance.
• PTFE insulator provides low dielectric loss and high thermal stability.
• Panel mount design with a 6.4 mm mounting hole for secure installation.
• High insulation resistance of ≥10 GΩ and dielectric withstanding voltage of 1000 V RMS.
• Durability of at least 500 mating cycles for long service life.

Technical details

• Connector Series: SMB
• Connector Type: Jack (Female)
• Body Style: Straight
• Mounting Type: Panel Mount (Bulkhead)
• Impedance: 50 Ohm
• Termination Style: Solder (Center & Outer Contact)
• Frequency Range: DC - 4 GHz
• Voltage Rating: 335 V (RMS)
• Dielectric Withstanding Voltage: 1000 V (RMS)
• Insulation Resistance: ≥ 10 GΩ
• VSWR: ≤ 1.3 at 4 GHz
• Durability: ≥ 500 Mating Cycles
• Operating Temperature: -65 °C to +165 °C
• Contact Plating: Gold (0.8 µm)
• Body Plating: Nickel (2 µm)
• Insulator Material: PTFE
• Panel Mounting Hole Diameter: 6.4 mm

Our verdict

A high-quality SMB connector for professional RF applications, offering excellent electrical performance and mechanical robustness.
