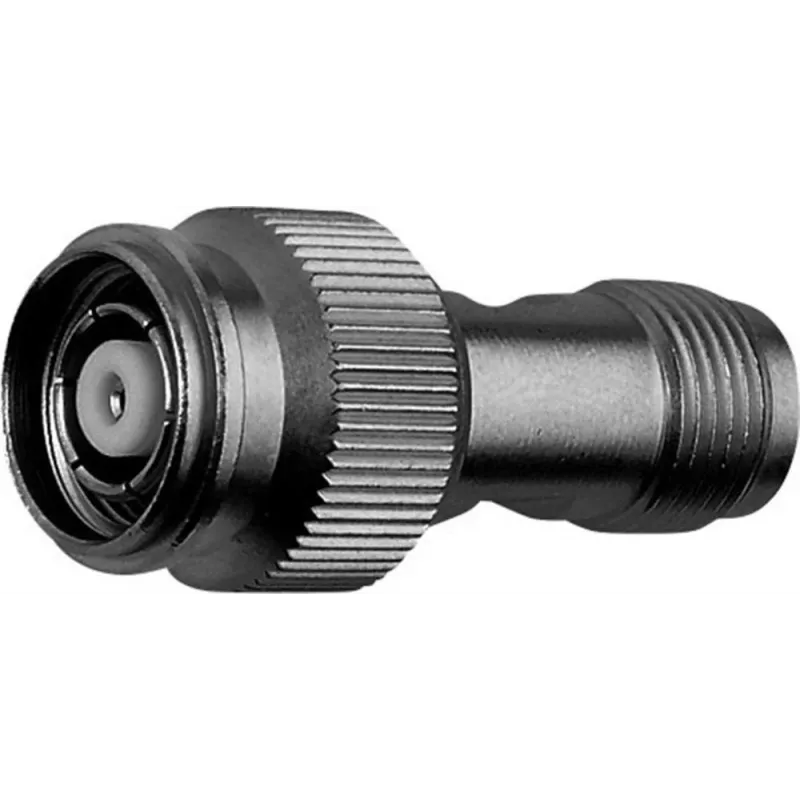

Telegärtner TNC-bus op TNC reverse-stekker coaxiale adapter, 50 Ohm, vernikkeld messing, gouden contactpen J01014R0001

This Telegärtner coaxial adapter converts a standard TNC female interface to a TNC reverse-polarity male connection, enabling secure mating with reverse-polarity TNC equipment. Its 50 Ohm impedance and DC–11 GHz frequency range make it suitable for RF applications where polarity conversion is required.

Highlights

• Connector A: TNC female (jack)
• Connector B: TNC reverse-polarity male (plug)
• Impedance: 50 Ohm
• Frequency range: DC to 11 GHz
• Nickel-plated brass housing, gold-plated center contact

In daily use

The adapter's straight body and standard TNC interfaces allow quick inline connection. PTFE insulation and gold-plated contacts provide stable signal transfer, while the nickel-plated brass housing offers mechanical durability.

Full specifications

• Connector A type: TNC
• Connector A gender: Female (jack)
• Connector B type: TNC
• Connector B gender: Reverse-polarity male (plug)
• Adapter configuration: Straight
• Impedance: 50 Ohm
• Frequency range: DC to 11 GHz
• Housing material: Brass
• Housing plating: Nickel
• Center contact material: Brass
• Center contact plating: Gold
• Insulation material: PTFE
• Dielectric withstanding voltage: 1.5 kVeff (at 50 Hz)
• Insulation resistance: ≥ 5 GΩ
• Contact resistance (center): ≤ 1.5 mΩ
• Contact resistance (outer): ≤ 1.0 mΩ
• Operating temperature: -55°C to +155°C
• Mating cycles: ≥ 500

Final note

Reverse-polarity TNC connectors are commonly used in wireless systems to prevent accidental connection to standard TNC equipment.
